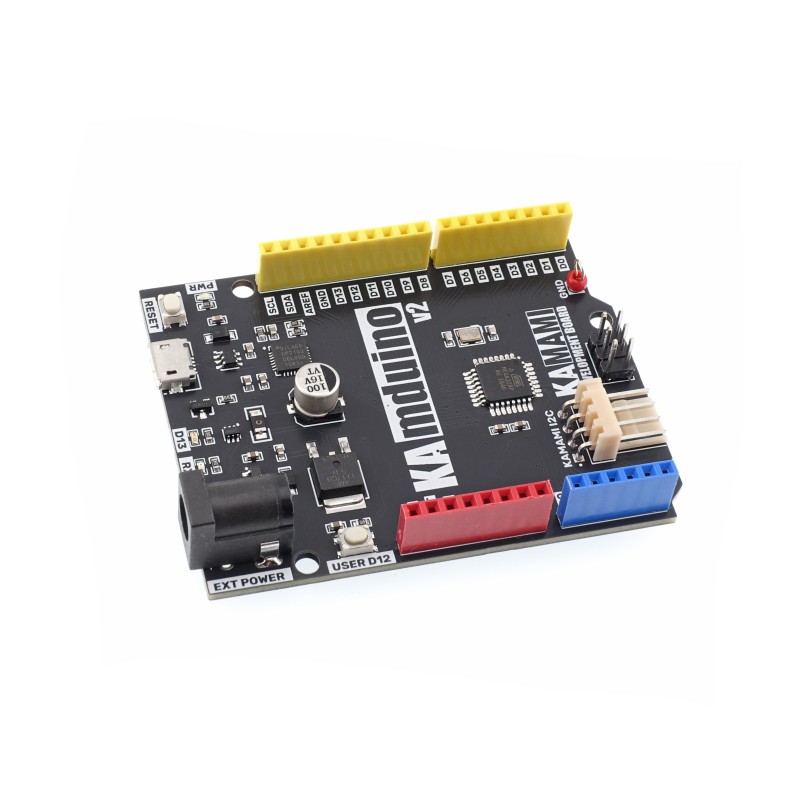

KAmduino V2 - development board with ATmega328P microcontroller
ID: 586678
5906623433360
zł49.72
Tax included
zł40.42 tax excl.
Versatile development board with the ATmega328P microcontroller, which, thanks to its compatibility with Arduino UNO and variety of functions, is an excellent choice for many projects
Description
KAmduino V2 is an development board equipped with the ATmega328P microcontroller. Thanks to the integrated CP2102 system, the board can be easily programmed via USB using the Arduino environment. It is fully compatible with Arduino UNO, which means that it can be expanded using various "shields". This board offers a wide range of features and capabilities, providing an excellent basis for a variety of electronics and programming projects.
Features
- ATmega328P microcontroller
- 20 GPIO pins on connectors (including 6 lines with PWM mode)
- Uploaded Arduino bootloader
- MicroUSB-B connector for programming and data exchange
- Possibility of power supply via DC-JACK socket (2.1x5.5) by voltage in range 7…15V
- Protection against reverse voltage polarity on DC connector
- Possibility of power via USB connector
- Connectors compatible with Arduino UNO R3 standard
- On-board User LED and LEDs signalling transmission from/to computer
- On-board User button
- On-board microcontroller reset-button
- USB connector protected against electrostatic discharge
- Possibility of expanding the functionality by using additional shields
- KAMAMI standard I2C connector for connecting additional modules
- Mounting holes with a diameter of 3mm
- Module dimensions: 69 x 55 x 14 mm
586678
Data sheet
- Microcontroller
- ATmega328
- Core
- AVR
- Frequency
- 16MHz
- Flash memory
- 32kB
- RAM
- 2kB
- EEPROM memory
- 1kB
- Number of digital pins
- 20
- Number of PWM channels
- 6
- Ilość wejść analogowych
- 6
- ADC
- 1x 10bit
- DAC
- none
- CAN
- none
- USB
- 1
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- GSM/GPRS module
- No
- Logic voltage
- 5 V
- MicroSD slot
- No
- Supply voltage min
- 7
- Supply voltages max
- 15 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
