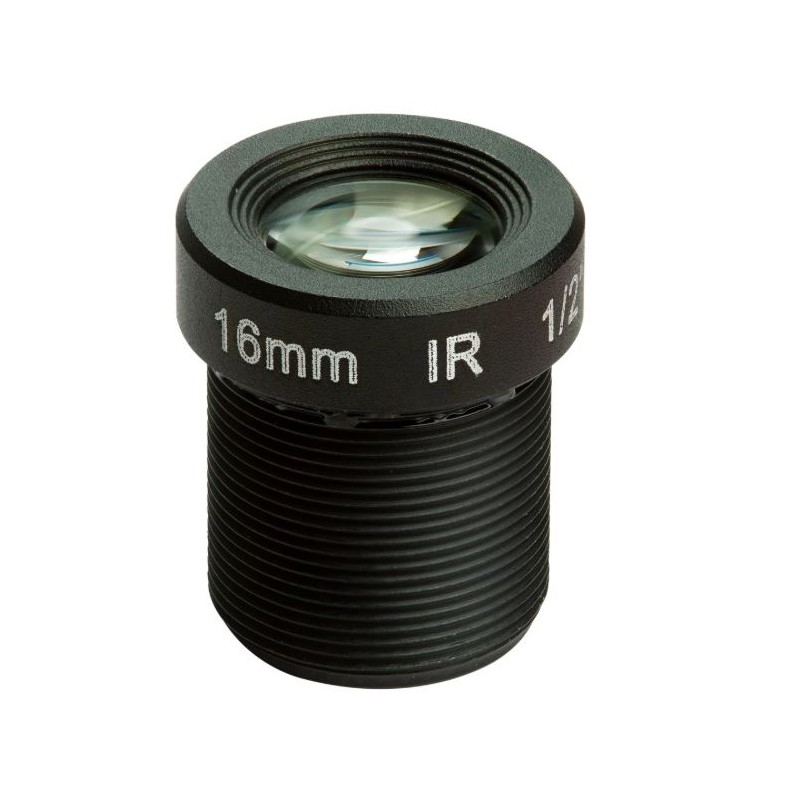

ArduCam M2016ZH01 – 16mm Lens for M12-Mount Cameras
ID: 1198389
5902186334250
zł37.50
Tax included
zł30.49 tax excl.
Fixed focal length M12 lens, 16 mm focal length, 1/2″ optical format, ~29° field of view, f/2.0 aperture, compact design for interchangeable lens camera modules
Description
The ArduCam M2016ZH01 is a fixed focal length optical component designed for camera modules with an M12 (S‑mount) thread, commonly used in projects based on Raspberry Pi, Arduino, and in embedded vision systems requiring a narrower field of view. The 16 mm focal length provides a relatively narrow ~29° angle of view, making it suitable for observing objects at medium to long distances.
The optical system with a f/2.0 aperture ensures adequate light transmission under typical lighting conditions, while the 1/2″ optical format offers compatibility with a wide range of image sensors used in ArduCam and other M12 systems. Its compact and lightweight construction simplifies integration into projects with limited installation space.

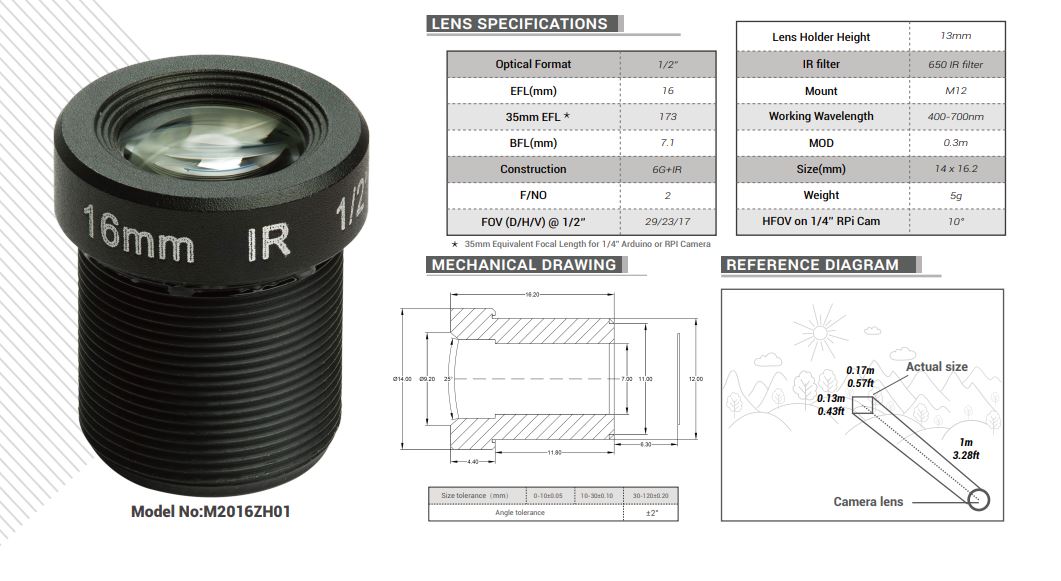

Features
- Mount type: M12 – standard lens thread used in ArduCam and Raspberry Pi camera modules
- Optical format: 1/2″ – compatible with sensors up to this size
- Focal length: 16 mm – fixed
- Aperture (F‑NO): f/2.0
- Field of view (FOV) on 1/2″ sensor: ~29° diagonal, ~17° horizontal, ~23° vertical
- Minimum object distance (MOD): ~0.3 m
- Lens dimensions: ~14 × 16.2 mm
- Weight: ~5 g
- Material: glass optics with a metal housing, compatible with M12 systems
1198389
Data sheet
- Lens assembly
- M12
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
