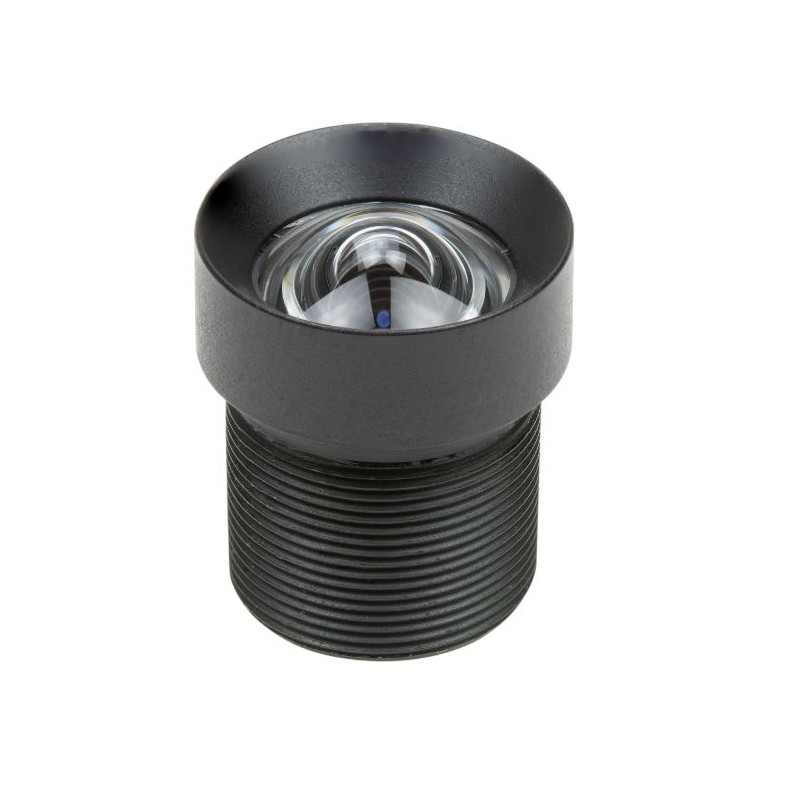

M12 3.6mm Low Distortion 1/2.5" Lens - ArduCam LN012
ID: 1203036
5902186334410
zł59.99
Tax included
zł48.77 tax excl.
Camera lens with an M12 mount and a 3.6mm focal length featuring reduced geometric distortion, intended for camera modules with 1/2.5" sensors. ArduCam LN012 M25360H06S
Description
An M12-mount lens with a fixed focal length of 3.6mm is used in vision systems that require a moderately wide field of view while limiting image distortion. The low-distortion optical design allows improved scene geometry compared to standard wide-angle lenses, which is relevant in vision systems, robotics, and image analysis applications.
The lens is designed for use with 1/2.5" image sensors applied in compact camera modules. The standard M12 (S-mount) interface enables manual focus adjustment by screwing the lens into the camera mount, without the need for additional adapters.

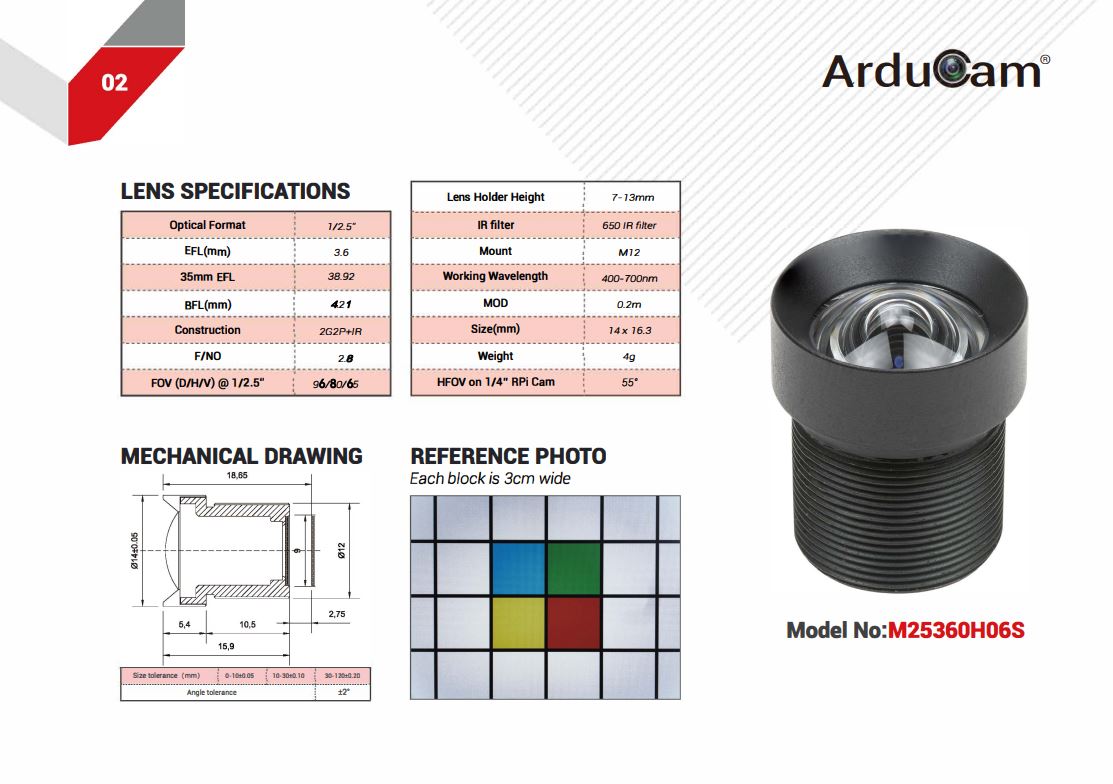

Features
- Lens type: fixed focal length
- Optical characteristic: low distortion
- Focal length: 3.6 mm
- Mount: M12 (S-mount)
- Compatible sensor format: 1/2.5"
- Aperture: F2.0
- 35 mm equivalent focal length: 38.9 mm
- Back focal length (BFL): 5 mm
- Field of view (D/H/V): 156° / 114° / 80°
- Horizontal field of view for 1/4" sensor: 67°
- Optical construction: 6G + IR
- IR filter: 650 nm
- Operating wavelength range: 400 – 700 nm
- Minimum object distance (MOD): 0.2 m
- Dimensions: 14 x 16.8 mm
- Weight: 6 g
- Focus adjustment: manual
1203036
Data sheet
- Lens assembly
- M12/S mount
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
