FPC Breakout - module with FPC connector 22 Pin 0.5mm for Raspberry Pi 5 and RP2350 HSTX
ID: 1196822
5906623498970
zł12.60
Tax included
zł10.24 tax excl.

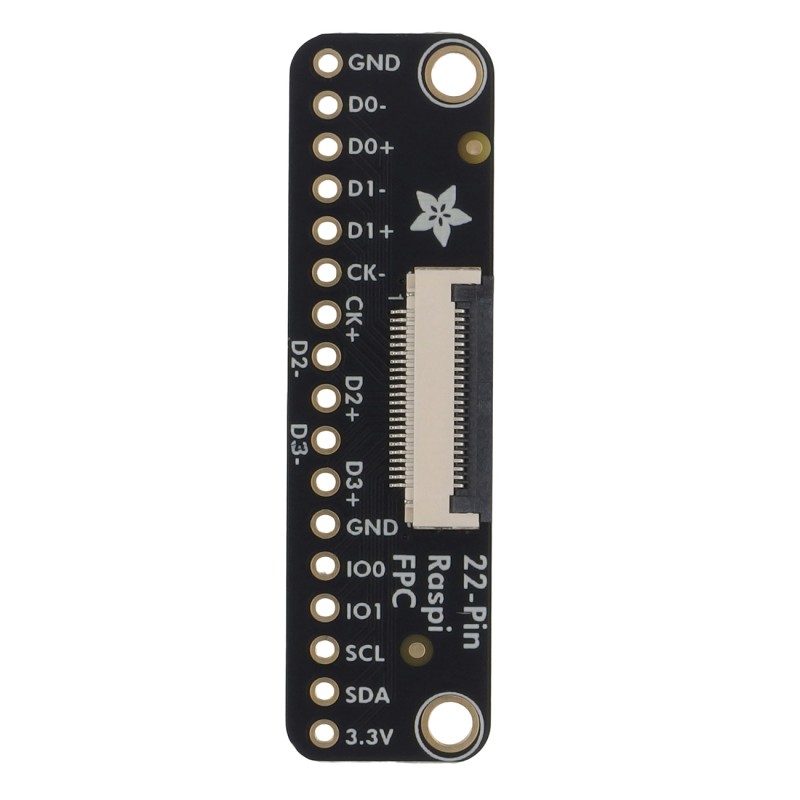

Designed to work with the Raspberry Pi 5 or Feather RP2350 boards, this tiny FPC module enables high-speed data transfer using differential signal pairs for video transmission. Using a 0.5mm pitch, 22-pin FPC cable, the module provides four data channels for the Pi 5 or three for the HSTX, plus additional 3.3V power, I2C, and GPIO outputs for flexible connection and customization. Adafruit 6014
Description
A small FPC connector module designed specifically for use with the Raspberry Pi 5 or Feather RP2350 boards that feature the 'HSTX' connector. These devices use the FPC connector to transmit high-speed data in video transmission via differential signal pairs. If you want to create a custom configuration or adapt the device to another product, this module will be the ideal solution. Using a 0.5 mm pitch 22-pin FPC cable, you can connect two boards to access four (for Pi 5) or three (for HSTX) differential data channels, as well as a differential clock. The module also includes a 3.3V power output, I2C, and two GPIO pins. The board has a large ground area, and the signals are carefully routed; however, keep in mind that when using cables or mounting on breadboards, there is a risk of signal degradation when transmitting high-speed data.
Features
- Designed for use with Raspberry Pi 5 and RP2350 with HSTX connector
- High-speed transmission
- Provides access to differential data channels and clock
- Uses a 22-pin 0.5 mm pitch FPC cable
- Provides a 3.3V output, ideal for powering other components
- Includes I2C pins and two GPIO pins
- Large ground area and carefully routed signals
- Dimensions: 44.8 x 12.7 x 3.7mm
- Weight: 2.1g
Kit contains
- HSTX breakout board
- Goldpin connector
1196822
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
