Raspberry Pi 5 2GB + KAmodRPI5 REL+POW + accessories kit

Description

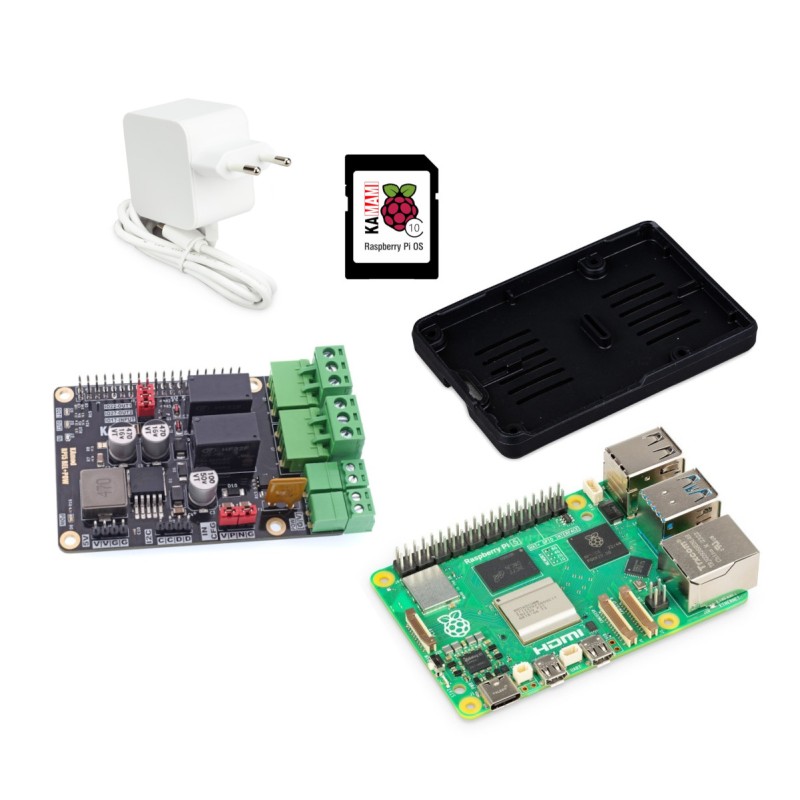

The kit consists of a KAmod RPI5 REL+POW module, a Raspberry Pi 5 2GB computer and dedicated accessories, including a 27W USB-C PD power supply, a 32GB microSD card with the Raspberry Pi OS system and a Raspberry Pi Bumper silicone protective stand. The KAmod RPI5 REL+POW module allows you to power the Raspberry Pi 5 from a voltage in the range of 8...32 V and offers two relay outputs and a digital input with galvanic separation. Raspberry Pi 5 2GB is the latest version of the popular minicomputer with a quad-core Cortex-A76 2.4 GHz processor, VideoCore VII graphics and a wide range of interfaces, including PCIe 2.0 x1 and dual MIPI. The included 27W power supply provides optimal power supply, and the microSD card allows you to immediately start the system. The silicone stand protects the board from mechanical damage.

Features

• KAmod RPI5 REL+POW
  • Raspberry Pi 5 power supply with 5.1 V, 3 A (temporarily up to 5 A)
  • Voltage input: 8...32 V
  • Two relay outputs (3 A/250 V AC or 3 A/30 V DC)
  • Digital input with galvanic separation (3.5...32 V)
  • Compact dimensions 81 x 56 mm
• Raspberry Pi 5 2GB
  • Broadcom BCM2712 Cortex-A76 2.4 GHz processor
  • 2 GB LPDDR4X-4267 RAM
  • WiFi 802.11ac, Bluetooth 5.0
  • Gigabit Ethernet, PCIe 2.0 x1
  • 2x USB 3.0, 2x microHDMI 4Kp60
• Raspberry Pi 27W power supply USB-C PD
  • Support for 5V/3A, 9V/3A, 12V/2.25A, 15V/1.8A
  • Special mode 5V/5A for Raspberry Pi 5
  • USB-C plug, European plug
• 32GB Raspberry Pi OS microSD card
  • Class 10, UHS-I interface
  • Read speed up to 40MB/s, write speed up to 15MB/s
• Raspberry Pi Bumper stand
  • Flexible silicone, protection of the bottom of the board
  • Easy access to the power button and mounting holes

Included

• KAmod RPI5 REL+POW module
• Raspberry Pi 5 2GB
• Raspberry Pi 27W USB-C PD power supply
• 32GB microSD card with Raspberry Pi OS
• Raspberry Pi Bumper protective stand
