XIAO ePaper Display Board EE02 - ESP32-S3 driver for 13.3" Spectra™ 6 E-Ink displays - SeeedStudio 100067144
ID: 1203699
zł79.42
Tax included
zł64.57 tax excl.
Control board for 13.3" Spectra™ 6 ePaper displays, powered by the XIAO ESP32-S3 Plus. Enables quick creation of projects like digital photo frames and bulletin boards with real-time data display capabilities. The board supports power from a 3.7V Li-Ion battery or USB Type-C, and built-in buttons and SenseCraft HMI firmware make interactive control easy. A 60-pin adapter, FFC extension cable, and 2.4 GHz FPC antenna are included. SeeedStudio 100067144
Description

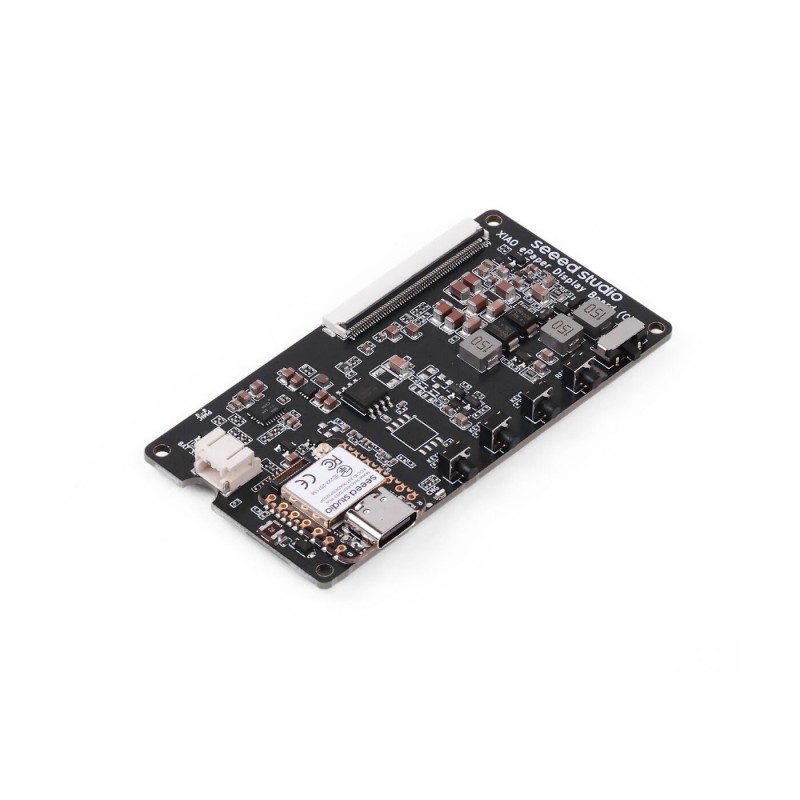

XIAO ePaper Display Board EE02 is a modern control board for 13.3" Spectra™ 6 ePaper displays, powered by XIAO ESP32-S3 Plus. The board enables rapid project development, such as digital photo frames or information boards. It features a JST 2.0 mm battery connector with switch and a built-in charging circuit for convenient power management. The board includes one reset button and three user buttons, which can be programmed for custom functions. It comes preloaded with SenseCraft HMI firmware, allowing quick creation of user interfaces without coding, using ready-made templates or drag-and-drop UI design. Designers can easily display real-time data, notifications, schedules, or images and create dashboards suitable for smart homes and monitoring systems.
The board supports USB Type-C connection and 3.7 V Li-Ion battery power, offering flexibility in applications. Despite its compact size, EE02 provides full functionality for ePaper, including fast and stable operation of the Spectra™ 6 display. It can be used as a public transport arrival board, safety information display, interactive photo frame, or real-time data dashboard. With its built-in processor and user-friendly buttons, users can easily customize functions to their needs. Components like the 2.4 GHz FPC antenna and 60-pin adapter allow easy display connection and wireless project expansion. The board ensures reliable operation in low-power and flexible interface projects. EE02 is an ideal solution for hobbyists and professionals looking to quickly and easily create smart, wireless ePaper display projects.
Features
- Processor: XIAO ESP32-S3 Plus
- Supported display: 13.3" Spectra™ 6 E-Ink
- ePaper connector: FPC 60-pin 0.5 mm
- Battery connector: JST 2.0 mm with switch
- Power supply: 3.7V Li-Ion battery or USB Type-C
- Buttons: 1x Reset, 3x User
- Firmware: Preloaded SenseCraft HMI
- Supports low-power and wireless projects
- Capability to display real-time data and interactive UI
- Dimensions: 80 x 43 x 7 mm
Kit contains
- XIAO ePaper Display Board EE02
- 60-pin adapter and 60-pin FFC extension
- 2.4 GHz FPC antenna (2.9 dBi)
1203699
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
