ReSpeaker Lite 2-Mic Array Voice Kit - development board for voice recognition projects
ID: 1195709
5902186320796
zł136.43
Tax included
zł110.92 tax excl.
Development board based on the XMOS XU316 audio processor and the XIAO ESP32S3 module, featuring a dual digital microphone array for voice capture and processing. Enables integration with ESPHome and the Home Assistant platform and can be used to build custom voice assistant systems. Seeed Studio 110061601
Description

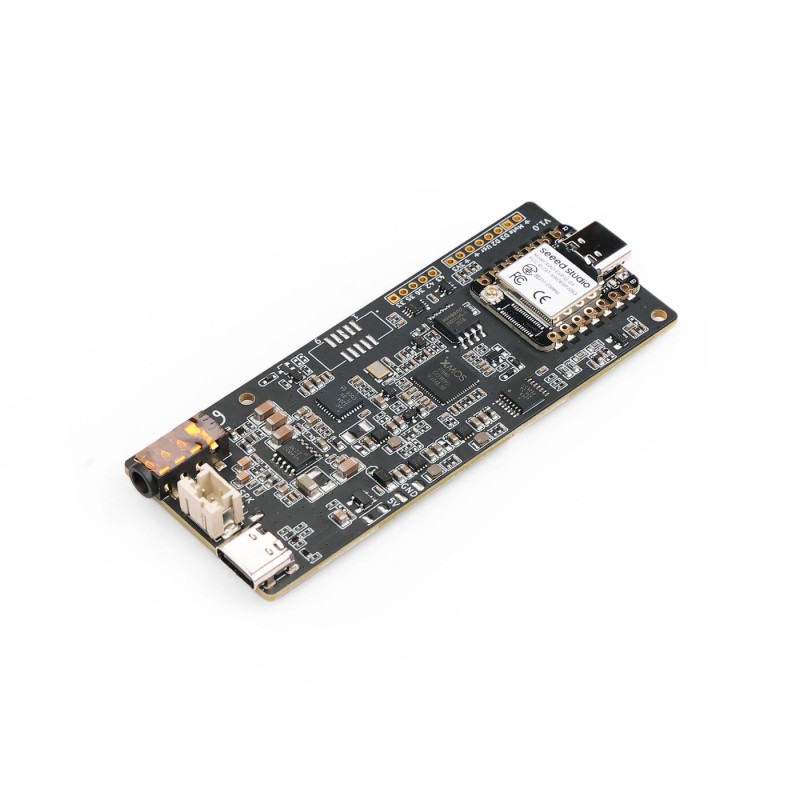

ReSpeaker Lite 2-Mic Array Voice Kit is an open hardware platform designed for audio processing and voice command recognition projects. The board integrates the XMOS XU316 audio processor responsible for hardware-level signal processing and the XIAO ESP32S3 module providing wireless connectivity and user application control.
The dual digital microphone array enables far-field voice capture up to 3 meters. The system implements advanced front-end audio algorithms including interference cancellation (IC), acoustic echo cancellation (AEC), noise suppression, and automatic gain control (AGC). The maximum sampling rate is 16 kHz.
The XIAO ESP32S3 module is based on a dual-core Xtensa LX7 processor running up to 240 MHz and provides 2.4 GHz WiFi and Bluetooth 5.0 BLE connectivity. Memory resources include 8 MB Flash and 8 MB PSRAM. The kit supports integration with Home Assistant via ESPHome and can be used with cloud-based speech processing services.
A programmable WS2812 RGB LED is integrated on the board for status indication. This product version includes only the ReSpeaker Lite 2-Mic Array board with factory-soldered XIAO ESP32S3 module, two digital microphones, and the XMOS XU316 audio processor, making it suitable for OEM integration and embedded system applications.
Below are the pinouts of the XIAO ESP32-S3 module and the ReSpeaker Lite 2-Mic Array board.
Features
- Audio processor: XMOS XU316
- Controller module: XIAO ESP32S3 (ESP32-S3R8, dual-core Xtensa LX7 up to 240 MHz)
- Microphone array: 2 digital microphones
- Microphone sensitivity: -26 dBFS
- SNR: 64 dBA
- Maximum sampling rate: 16 kHz
- Audio processing algorithms: IC, AEC, noise suppression, AGC
- Connectivity: 2.4 GHz WiFi, Bluetooth 5.0 BLE
- Memory: 8 MB Flash, 8 MB PSRAM
- Interfaces: UART, I2C, I2S, SPI, GPIO, ADC
- Audio output: speaker connector, 3.5 mm headphone jack
- Onboard LED: programmable WS2812 RGB
- Power supply: 5 V
- Board dimensions: 35 x 86 mm
- Operating temperature: -40°C to 65°C
Kit includes
- ReSpeaker Lite 2-Mic Array board
- Factory-soldered XIAO ESP32S3 module
1195709
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
