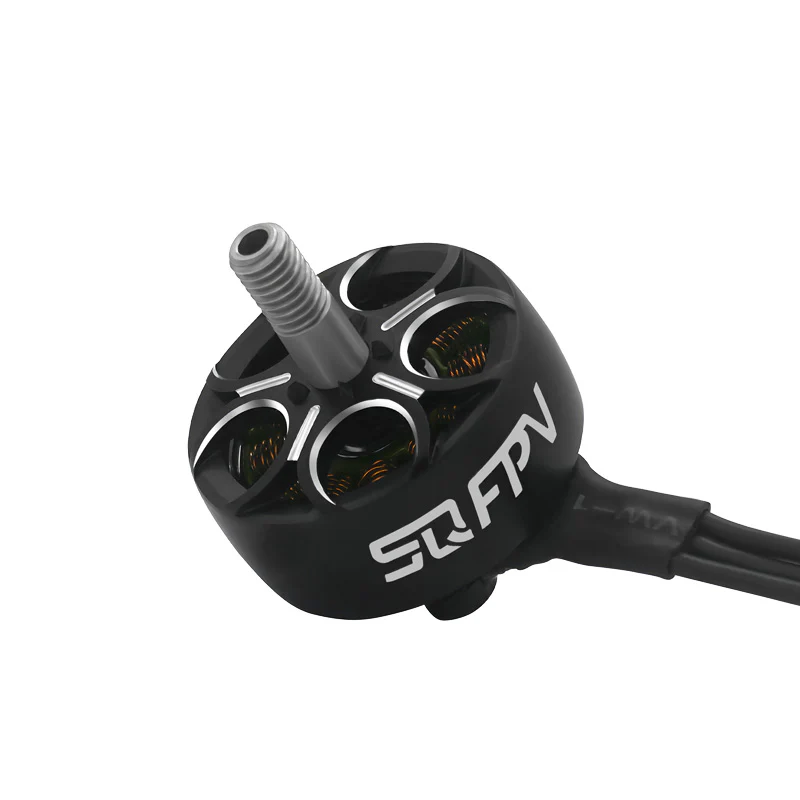

SEQURE S2207 - 6S 1850KV BLDC brushless motor
ID: 1205244
zł92.83
Tax included
zł75.47 tax excl.
A brushless FPV motor designed for racing and long-range applications, offering high efficiency and dynamic throttle response. Its 22x7mm 12N14P design with high-quality copper windings and a 14-pole rotor ensures stable and smooth operation under heavy loads. The motor operates in the 4-6S LiPo/LiHV range, reaching a maximum power of 940W and a current of up to 37.3A, allowing for aggressive flights while maintaining reliability. SEQURE S2207 BLDC 6S 1850KV
Description
SEQURE S2207 BLDC 6S 1850KV is a brushless motor designed for FPV drones, optimized for racing and long-range applications. The motor design has been engineered for high efficiency and strong torque, resulting in dynamic and stable performance across the entire RPM range. The 22×7 mm stator in a 12-slot configuration, combined with high-purity copper windings, ensures high power density and fast throttle response. The motor uses a 14-pole magnet structure with high thermal resistance, providing smooth operation and high torque output. The housing is made of CNC-machined aviation-grade aluminum, ensuring high rigidity and effective heat dissipation. A precise design with minimal air gap improves energy efficiency and reduces losses. The motor features a 5 mm diameter shaft made of stainless steel, increasing resistance to mechanical stress. High-quality bearings ensure long lifespan and quiet, smooth operation even at high speeds. The 1850KV version is optimized for operation with 4–6S LiPo/LiHV batteries, offering a highly dynamic performance profile. The SEQURE S2207 is an excellent choice for pilots seeking power and reliability in demanding FPV flight conditions.
Features
- Model: S2207
- KV: 1850KV
- Winding configuration: 12N14P
- Stator size: 22 × 7 mm
- Shaft diameter: 5 mm
- Silicone wires: 20 AWG, length 150 mm
- No-load current (10V): 1.1 A
- Operating voltage: 4–6S LiPo / LiHV
- Test voltage: 25.2 V
- Maximum current: 37.3 A
- Maximum power: 940 W
- Motor weight (with wires): 35 g
Kit contains
- SEQURE S2207 motor
- M5 lock nut
- 5 × M3 × 8 mm screws (button head, hex)
1205244
Data sheet
- Rotation speed
- Inna
- Diameter
- 22 mm
- Power supply voltage
- 22,2 V
- Height
- 7 mm
- Weight
- 35 g
