M12 0.76mm Lens - ArduCam LN010
ID: 1203038
5902186334434
zł69.96
Tax included
zł56.88 tax excl.

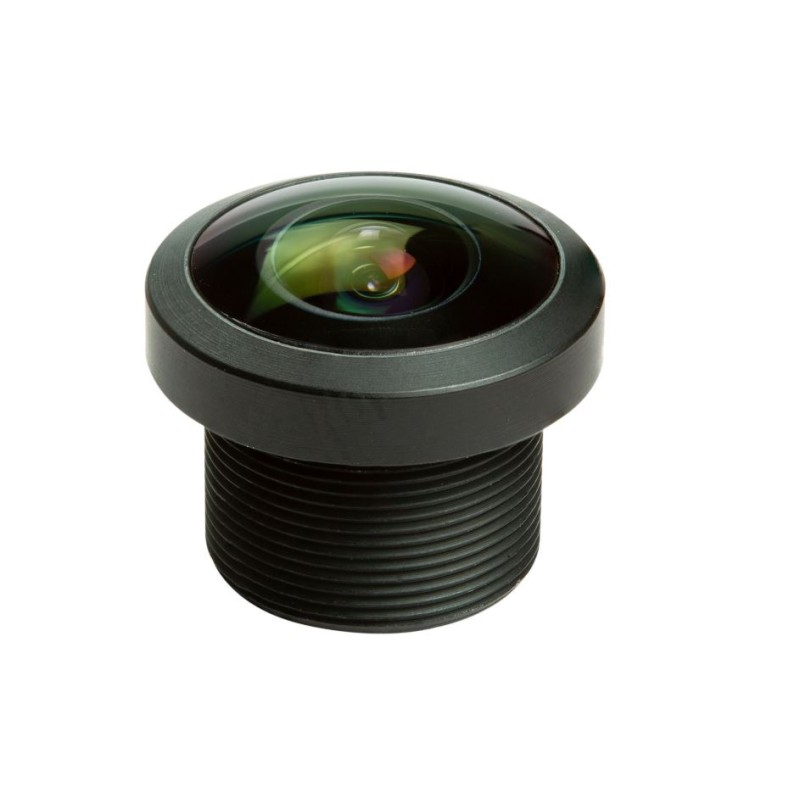

Camera lens with an M12 mount and a 0.76mm focal length, intended for camera modules that require an extremely wide field of view. ArduCam LN010 M32076M20
Description
An M12-mount lens with a fixed focal length of 0.76 mm is used in vision systems that require an extremely wide field of view. The very short focal length enables capture of a large scene area, which is applied in spatial observation systems, mobile robotics, environmental monitoring, and experimental machine vision projects.
The lens construction is adapted for use with compact camera modules equipped with an M12 interface. The standard M12 (S-mount) allows manual focus adjustment by screwing the lens into the camera mount, without the need for additional adapters.

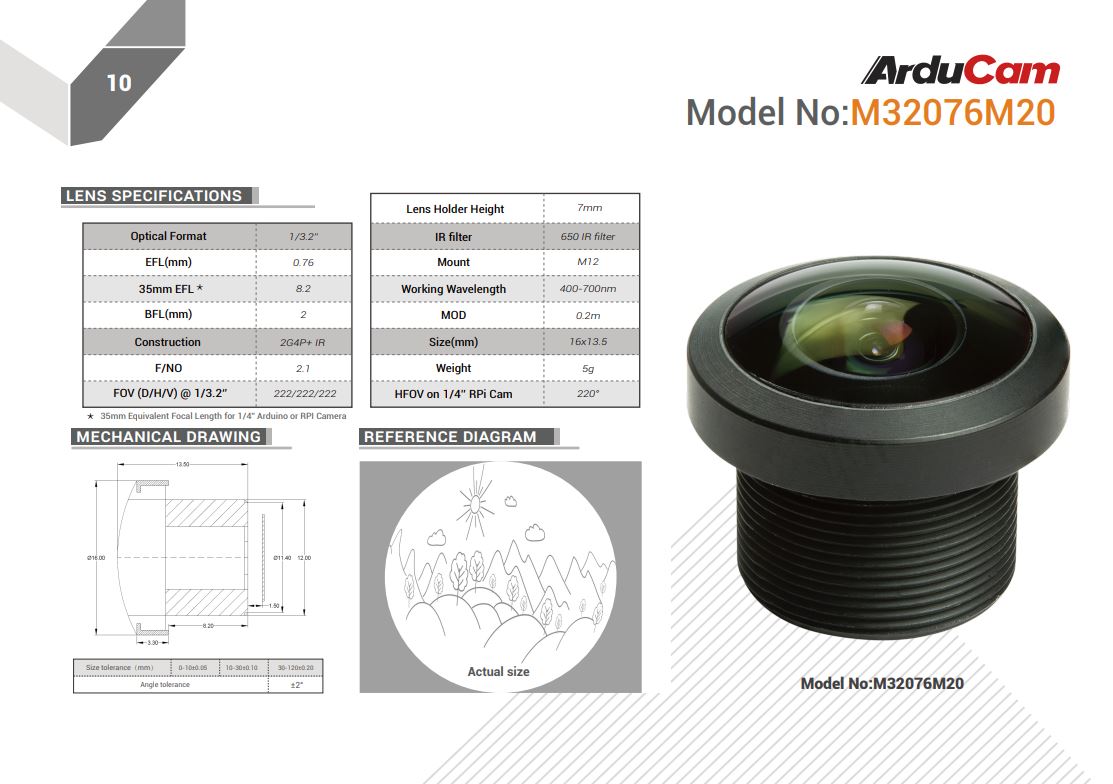

Features
- Lens type: fixed focal length
- Focal length: 0.76 mm
- Mount: M12 (S-mount)
- Compatible sensor format: 1/4"
- Aperture: F2.0
- 35 mm equivalent focal length: 6.0 mm
- Back focal length (BFL): 5 mm
- Field of view (D/H/V): 220° / 180° / 140°
- Optical characteristic: ultra wide-angle
- Optical construction: 6G + IR
- IR filter: 650 nm
- Operating wavelength range: 400 – 700 nm
- Minimum object distance (MOD): 0.2 m
- Dimensions: 14 x 16.8 mm
- Weight: 6 g
- Focus adjustment: manual
1203038
Data sheet
- Lens assembly
- M12/S mount
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
