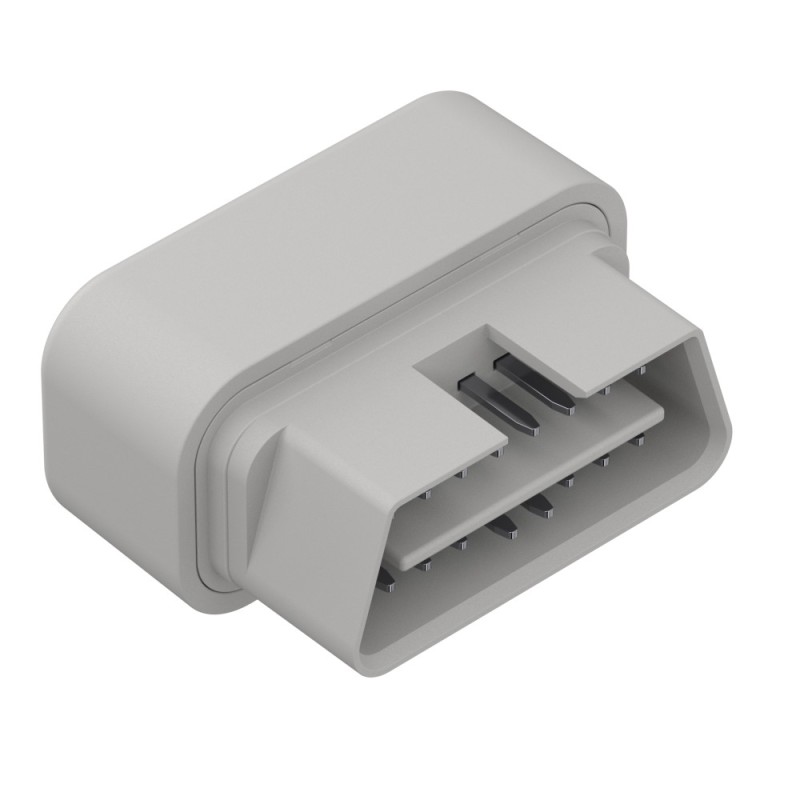

ZOBD MINI SET J 24V – OBD2 24V set with enclosure, ABS, light gray Kradex
ID: 1200867
zł12.47
Tax included
zł10.14 tax excl.
ZOBD MINI SET J 24V is a Kradex set containing an enclosure and an OBD2 plug in the 24 V version, made of light gray ABS material, designed for service and diagnostic applications in electronic systems.
Description
The ZOBD MINI SET J 24V kit is designed for integration with OBD2 diagnostic systems in 24 V installations. The set includes a light gray ZOBD MINI enclosure and a 16-pin OBD2 plug (ZOBD Cap Plug) made of ABS material. The kit allows quick installation of a service interface in electronic and industrial devices.
Features
- Type: solid
- Variant: 24V
- Material: ABS
- Color: light gray
- Length: 48.3 mm
- Width: 24.7 mm
- Height: 18.0 mm
1200867
Data sheet
- Colour
- Jasnoszary
- Materiał
- ABS
- Hermetyczna
- Nie
- Brass bushings
- Nie
- Tightness class
- brak
- Strength class
- none
- Length
- 48,3 mm
- Width
- 24,7 mm
- Height
- 18,0 mm
- Housing type
- OBD
- Flammability class
- none
- ZOBD_MINI_SET.pdf (233,91 kB)
- ZOBD_MINI_SET.step (2,49 MB)
- ZOBD_MINI_SET.dwg (14,17 kB)
- ZOBD_MINI_SET_2000.dwg (4,7 MB)
- ZOBD_MINI_SET_Assembly.svg (375,64 kB)
- ZOBD_MINI_SET_ZOBD_Mini.svg (363,08 kB)
- ZOBD_MINI_SET_Plug.svg (500,21 kB)
- ZOBD_MINI_SET_Plug_Pin.svg (327,69 kB)
- ZOBD_MINI_SET_Plug_Cap.svg (356,5 kB)
- ZOBD_MINI_SET_Complete_documentation.zip (3,36 MB)
- ZOBD_MINI_SET_img.zip (879,87 kB)
Manufacturer Kradex Sp. z o.o. ul. Minerska 4 04-506 Warszawa Poland kradex@kradex.com.pl
Responsible person Kradex Sp. z o.o. ul. Minerska 4 04-506 Warszawa Poland kradex@kradex.com.pl
