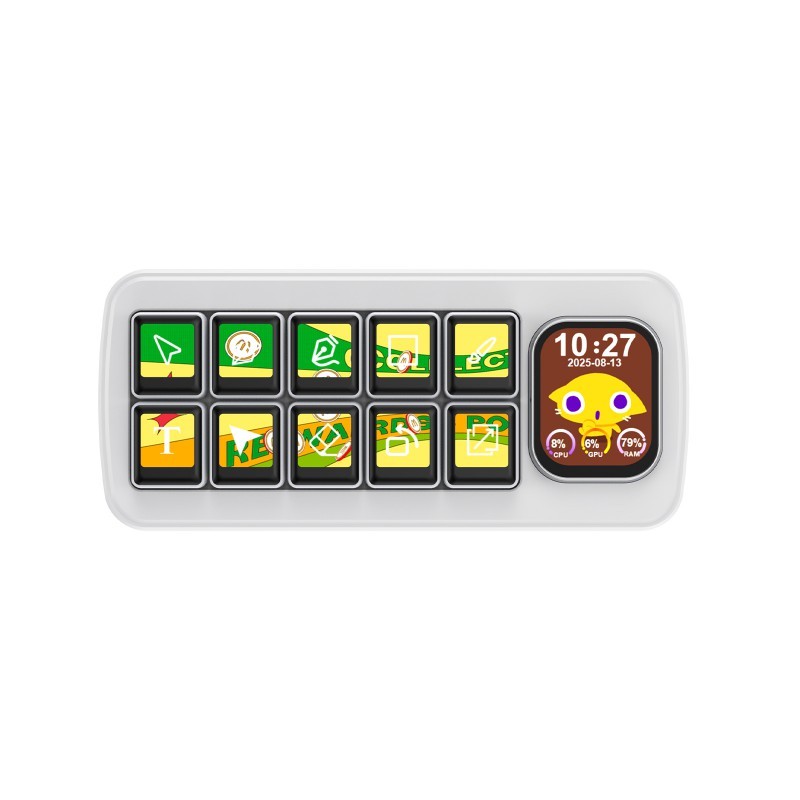

Control panel MK10 with AI and LCD displays, 10 × 0.85", 2.01" screen, Linux + QMK, white – Waveshare 32328
ID: 1201202
5902186330573
zł432.36
Tax included
zł351.51 tax excl.
Waveshare MK10-W in a white color version is an advanced control panel with 10 LCD keys, an auxiliary screen and integration with AI and smart home systems. The dual-system architecture and versatile configuration options make it well suited for professional applications, from streaming to workstation automation.
Description
Waveshare MK10-W is an advanced, multifunctional control panel with AI support in a white color version. Equipped with 10 mechanical keys with individual LCD displays (0.85", 128×128 px) and an additional 2.01" screen with a resolution of 240×296 px, it enables creating dynamic user interfaces. The dual-system architecture (Linux + QMK) ensures full functionality – the T113-S3 microcontroller handles data processing and interaction with AI systems, while the GD32 controller with QMK firmware enables instant, zero-latency mechanical response.
The device allows defining macros, keyboard shortcuts, mouse control and creating command sequences without the need to install software on the computer. The drag-and-drop theme editor simplifies graphic configuration. MK10 integrates real-time data from LibreHardwareMonitor and OpenWeather and supports smart home control via Home Assistant.
Properties
- 10 mechanical keys with 0.85" LCD displays (128×128 px)
- Additional 2.01" screen (240×296 px)
- Main processor: T113-S3 (Dual-core A7, 1.2 GHz, Linux)
- Sub-controller: GD32 (QMK, zero-latency response)
- Support for macros, shortcuts, mouse and complex commands
- Compatibility with Windows and macOS
- No-code interface creator
- Support for LibreHardwareMonitor and OpenWeather data
- Integration with AI platforms (DeepSeek, Doubao)
- Support for Home Assistant (HA)
- Aluminum housing + 2.5D acrylic cover (hardness >3H)
- Can be set at 40° angle or flat (5.5°)
- Access to updated themes and extensions online
