USB controller for building an arcade game
ID: 582445
5906623474516
zł38.65
Tax included
zł31.42 tax excl.

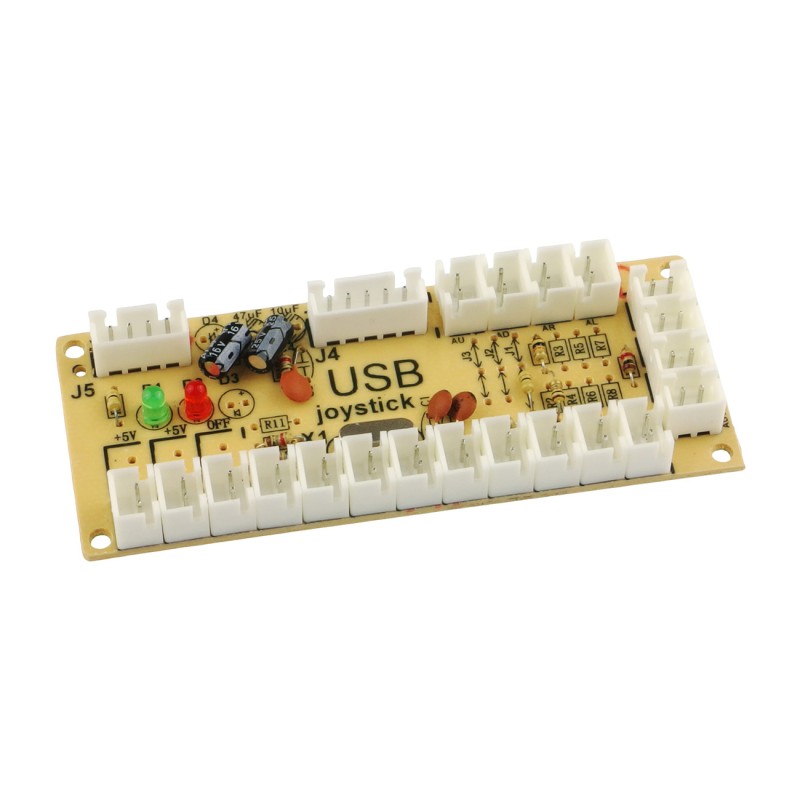

Electronic controller module for building an arcade game. Connectors placed on the board allow you to connect 12 momentary buttons, SANWA joystick, ZIPPY/HIPP joystick and function buttons
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Electronic controller module for building an arcade game. It is compatible with the standard Windows game controller drivers for PC and Raspberry Pi. Connectors located on the board allow you to connect 12 momentary buttons, SANWA joystick, ZIPPY/HIPP joystick and function buttons. The controller supports TURBO and AUTO mode (LEDs flashing at a frequency of 12 Hz) and supports center point positioning and the dead zone function. It will be perfect for building your own arcade game and other devices that require many control elements.
Features
- Compatible with PC (Windows) and Raspberry Pi
- USB 1.0/2.0 interface
- 12 x button input
- SANWA Joystick socket
- ZIPPY / HAPP Joystick sockets
- AUTO and TURBO mode
- Supports 8-bit ADC input for 3D Joystick and 7-bit PWM
- Supports midpoint positioning and dead zone function
- JST XH 2.54 connectors
- Dimensions: 80 x 30 mm
Kit contains
- USB controller module
- USB cable
- Cable for connecting the joystick
- Cable with 2.8 mm connectors and 2.5 mm x 20 JST XH connector
- Cable with 4.8 mm connector and 2.5 mm x 4 JST XH connector
