Pololu 3761 is a compact 1.3″ OLED display with SPI interface and 128×64 resolution, based on the SH1106 controller. Thanks to bright white pixels, high contrast, and low power requirements, it is suitable for microcontroller applications that require a clear graphical user interface.

4 weeks
On request
Kamami is the official distributor of electronic modules and Pololu robotic parts. All products of this brand in our offer are original and come directly from the manufacturer.

Description

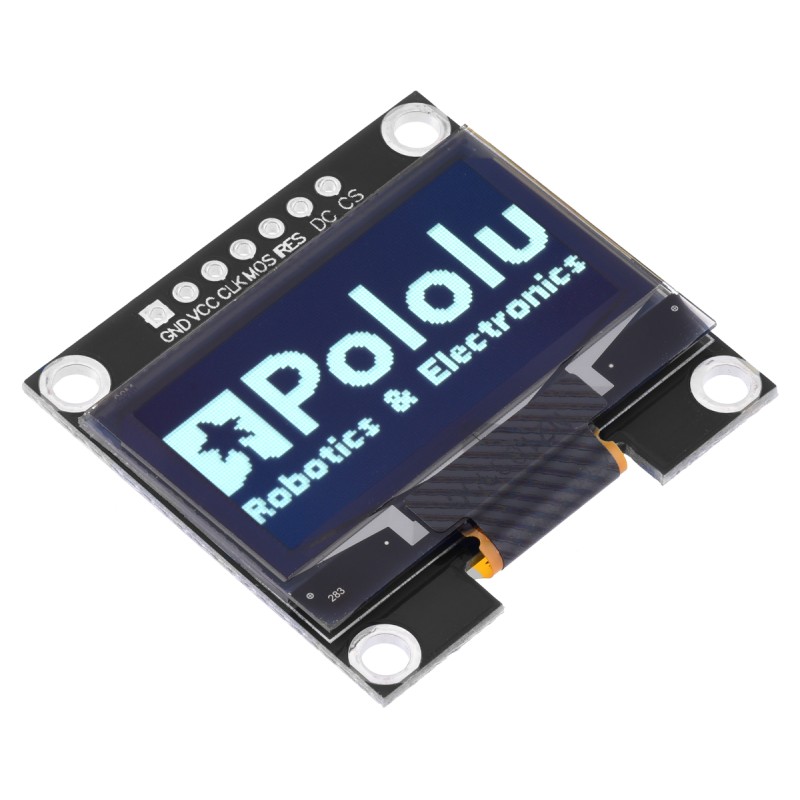

The Pololu 3761 graphical OLED display based on the SH1106 controller offers a resolution of 128×64 pixels with an active area diagonal of 1.3″ (29.4 mm × 14.7 mm). The compact form and high contrast, achieved thanks to individual illumination of each pixel, make the screen ideal for displaying graphics, icons, and text in projects requiring greater readability than LED indicators provide. Communication with the microcontroller is via a 4-wire SPI interface.

The display, powered by 3.1–5.5 V, includes a voltage regulator, but all logic pins require a 3.3 V level – level shifters must be used in 5 V systems. Compatibility with the U8g2 library enables quick implementation on the Arduino platform and other microcontrollers.

Properties

  • Resolution: 128×64 pixels
  • Pixel color: white
  • Controller: SH1106, SPI interface (4-wire)
  • Active area: 29.4 mm × 14.7 mm (1.3″ diagonal)
  • Pixel pitch: 0.23 mm (about 110 DPI)
  • Board dimensions: 35.4 mm × 33.5 mm × 3.8 mm
  • Weight: 5.5 g
  • Supply voltage (VCC): 3.1–5.5 V
  • Logic level: 3.3 V (pins not 5 V tolerant)
  • Typical current consumption: 40 mA (with all pixels on)
  • 7 interface pins: GND, VCC, CLK, MOS, RES, DC, CS
  • 4 mounting holes for M3 or #4 screws
  • Connector pitch: 2.54 mm (0.1″)
1199039

Data sheet

Screen type
OLED graphic
Diagonal (inch)
1,3
Resolution
128 x 64 px
Interface
SPI
Touch
No
