Micsig DP703 - 300MHz High Voltage Differential Probe
ID: 1188945
zł4,059.00
Tax included
zł3,300.00 tax excl.

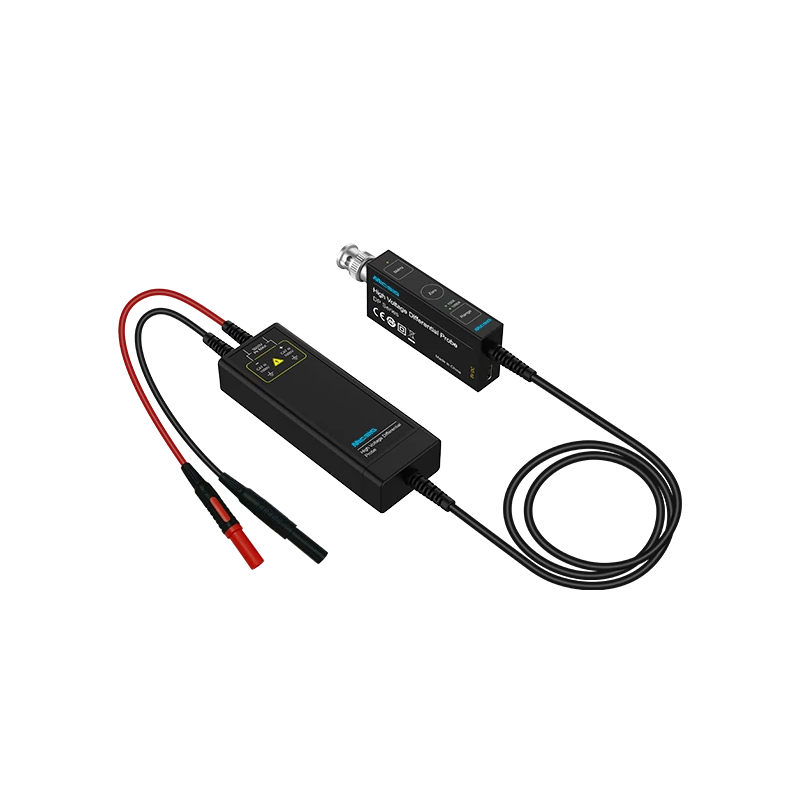

Micsig DP series differential probe based on advanced SigOFIT technology. It offers a 300 MHz frequency band and the ability to measure voltages up to 700 V. It uses the popular BNC connector and is powered by a USB Type-C connector. Micsig DP703
Description
The differential probe based on Micsig's advanced SigOFIT technology is a modern tool characterized by very low noise levels, excellent amplitude and frequency characteristics at high voltage, and outstanding common-mode signal rejection. These features allow users to easily perform tests on high-frequency and high-voltage signals. Additionally, the zero-point calibration function enables instant zeroing of the probe. The probe also offers a dual measurement range, improving the signal-to-noise ratio and allowing adaptation to various testing requirements. The standard BNC connector allows compatibility with any oscilloscope, and USB power eliminates the need for additional power sources.
Additional functions, such as an overvoltage alarm with a flashing LED and buzzer for range exceedance, allow users to respond quickly to potential issues. The DP probe also features a compact and aesthetic design, significantly smaller than traditional differential probes. Moreover, it offers excellent bandwidth uniformity, with amplitude fluctuation below 0.5 dB over half of the bandwidth—even at high frequencies—ensuring high measurement precision. High input impedance and low capacitance minimize loading effect, significantly improving the accuracy of differential signal measurements.
The probe can be widely used for AC voltage measurements, high-voltage insulation testing, switching power supply design, and power converter testing. It is a versatile and flexible tool suitable for both electronics workshops and industrial environments.
Features
- Bandwidth: 300 MHz
- Rise time: ≤ 1.2 ns
- Attenuation ratio: 20X, 200X
- Accuracy: ±2%
- Max. differential voltage (DC + AC PK):
- 20X: 70 V
- 200X: 700 V
- Max. common-mode voltage: CAT I 600V, CAT II 450V
- Noise:
- Full bandwidth:
- 20X: ≤ 100 mVrms
- 200X: ≤ 140 mVrms
- Full bandwidth:
- CMRR:
- DC: > -80dB
- 100 kHz: > -60dB
- 20 MHz: > -40dB
- Input impedance:
- Differential mode: 4 MΩ, 1.175 pF
- Common mode: 2 MΩ, 2.35 pF
- Delay:
- 20X: 10.83 ns
- 200X: 11.56 ns
- Output voltage: ≤3.5V
- Quick zero-point calibration function
- Two operation ranges
- Overvoltage indication: LED and buzzer
- BNC connector
- Power supply: USB Type-C
- Operating temperature range: 0℃ to 40℃
- Cable length: 8 cm (input), 120 cm (output)
- Control module dimensions: 91 x 33 x 15 mm
- Signal module dimensions: 100 x 36 x 20 mm
Kit contains
- Differential probe
- USB cable
- 2 x alligator clips
- 2 x test tips
1188945
