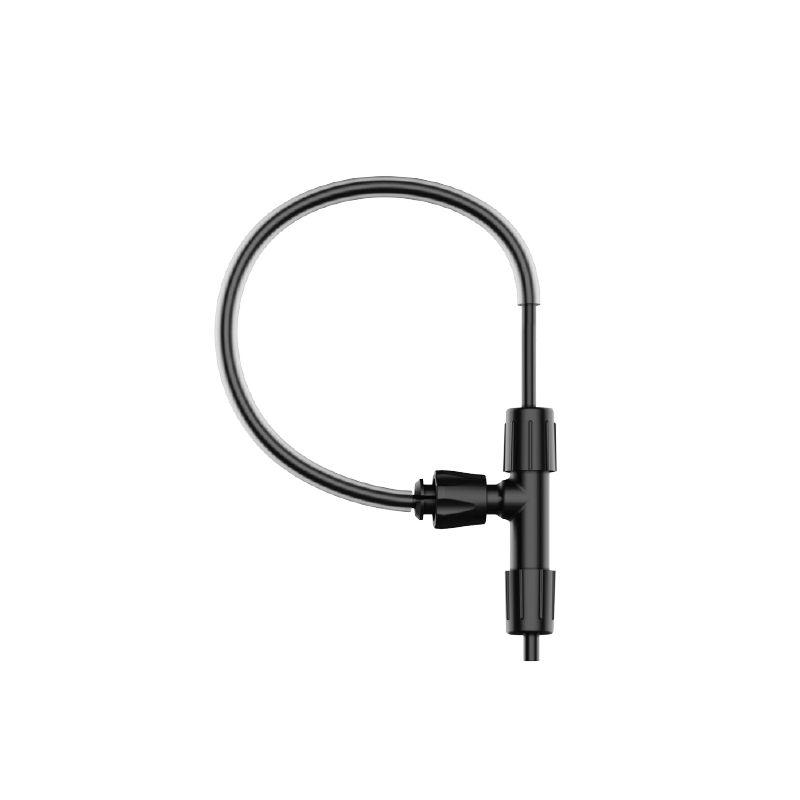

Micsig RCP600M-200 - Rogowski AC 600A Current Probe
ID: 1204917
zł5,338.20
Tax included
zł4,340.00 tax excl.
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 600 A, offering a wide bandwidth from 5 Hz to 25 MHz and a sensitivity of 10 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit being tested, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP600M-200
Description
Micsig RCP600M-200 is a Rogowski current probe designed for precise measurement of high-amplitude AC currents reaching up to 600 A. Thanks to Rogowski coil technology, the probe features near-zero insertion impedance, allowing measurements without affecting the tested circuit. This is particularly important in applications requiring high accuracy and minimal interference. The device offers a wide bandwidth of up to 25 MHz, enabling analysis of fast-changing signals and high-frequency waveforms. As a result, it is well suited for measuring currents in power transistors such as MOSFET, IGBT, SiC, and GaN, where capturing dynamic changes and high-order harmonics is essential.
The flexible coil design allows easy adaptation to hard-to-reach areas and measurements in systems with complex geometries. The compact cross-section of the coil enables operation even in very tight spaces, for example between semiconductor leads. The probe is equipped with a standard BNC connector, ensuring full compatibility with most oscilloscopes available on the market. With high voltage insulation up to 5 kV, it can be safely used in high-voltage applications.
Features
- Probe type: Rogowski (AC current measurement)
- Maximum current: 600 A (peak)
- Bandwidth: 5 Hz to 25 MHz
- Sensitivity: 10 mV/A (100X)
- Slew rate: 40 kA/μs
- Accuracy: 2%
- Voltage insulation: up to 5 kV (peak, for the coil)
- Output impedance: 1 MΩ
- Near-zero insertion impedance
- Interface: standard BNC connector
- Construction: flexible Rogowski coil
- Application: measurement of high-frequency, pulsed, and transient currents
- Use cases: motor drives, UPS/SMPS systems, MOSFET/IGBT (SiC, GaN) testing, harmonic analysis, three-phase systems
- Diameter: 4.5 mm
- Coil length: 200 mm
- Cable length: 1.5 m
- Power supply: DC 12 V
1204917
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Rogowski-type current probe for precise measurements of alternating currents with a frequency of up to 30 MHz. Thanks to the flexible coil of 1.6 mm thickness and almost zero impedance introduced, it is ideal for work in hard-to-reach places of power systems. The integrated amplifier and BNC interface enable accurate measurements and easy integration with oscilloscopes, making it an ideal tool for R&D laboratories and power electronics services. Micsig RCP300XS
zł4,059.00
Delivery date unknown
No product available!
Rogowski-type current probe for precise measurements of alternating currents with a frequency of up to 30 MHz. Thanks to the flexible coil of 1.6 mm thickness and almost zero impedance introduced, it is ideal for work in hard-to-reach places of power systems. The integrated amplifier and BNC interface enable accurate measurements and easy integration with oscilloscopes, making it an ideal tool for R&D laboratories and power electronics services. Micsig RCP1200XS
zł4,059.00
Delivery date unknown
No product available!
Rogowski-type current probe for precise measurements of alternating currents with a frequency of up to 30 MHz. Thanks to the flexible coil of 1.6 mm thickness and almost zero impedance introduced, it is ideal for work in hard-to-reach places of power systems. The integrated amplifier and BNC interface enable accurate measurements and easy integration with oscilloscopes, making it an ideal tool for R&D laboratories and power electronics services. Micsig RCP6000XS
zł5,145.95
Delivery date unknown
No product available!
Other products in the same category (16)
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 1200 A, offering a wide bandwidth from 5 Hz to 25 MHz and a sensitivity of 5 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP1200S-200
zł5,338.20
4 weeks
No product available!
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 3000 A, offering a wide bandwidth from 3 Hz to 25 MHz and a sensitivity of 2 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP3000S-200
zł5,338.20
4 weeks
No product available!
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 6000 A, offering a wide bandwidth from 2 Hz to 25 MHz and a sensitivity of 1 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP6000S-200
zł4,797.00
4 weeks
No product available!
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 6000 A, offering a wide bandwidth from 3 Hz to 10 MHz and a sensitivity of 1 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit being tested, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP6000S-700
zł3,387.38
4 weeks
No product available!
Rogowski current probe designed for measuring very high-amplitude AC currents up to 120 A, offering a wide bandwidth from 14 Hz to 25 MHz and a sensitivity of 50 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP120M-200
zł5,338.20
4 weeks
No product available!
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 300 A, offering a wide bandwidth from 7 Hz to 25 MHz and a sensitivity of 20 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit being tested, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP300M-200
zł5,338.20
4 weeks
No product available!
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 600 A, offering a wide bandwidth from 5 Hz to 25 MHz and a sensitivity of 10 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit being tested, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP600M-200
zł5,338.20
4 weeks
No product available!
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 1200 A, offering a wide bandwidth from 5 Hz to 25 MHz and a sensitivity of 5 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP1200M-200
zł5,338.20
4 weeks
No product available!
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 3000 A, offering a wide bandwidth from 3 Hz to 25 MHz and a sensitivity of 2 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit being tested, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP3000M-200
zł5,338.20
4 weeks
No product available!

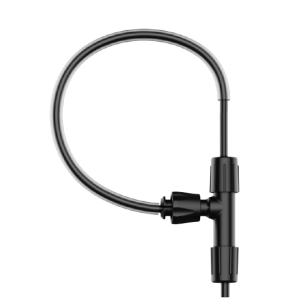

Rogowski current probe designed for measuring very high-amplitude alternating currents up to 6000 A, offering a wide bandwidth from 2 Hz to 25 MHz and a sensitivity of 1 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit being tested, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP6000M-200
zł5,338.20
4 weeks
No product available!
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 6000 A, offering a wide bandwidth from 3 Hz to 10 MHz and a sensitivity of 1 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit being tested, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP6000M-700
zł5,338.20
4 weeks
No product available!
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 12,000 A, offering a wide bandwidth from 2 Hz to 10 MHz and a sensitivity of 0.5 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP12000M-700
zł5,338.20
4 weeks
No product available!
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 600 A, offering a wide bandwidth from 8 Hz to 10 MHz and a sensitivity of 10 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit being tested, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP600L-700
zł5,338.20
4 weeks
No product available!
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 1200 A, offering a wide bandwidth from 5 Hz to 10 MHz and a sensitivity of 5 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP1200L-700
zł5,338.20
4 weeks
No product available!

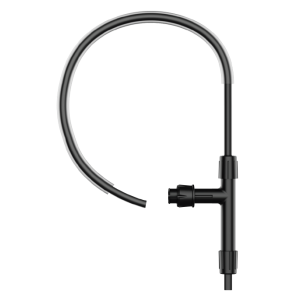

Rogowski current probe designed for measuring very high-amplitude alternating currents up to 3000 A, offering a wide bandwidth from 4 Hz to 10 MHz and a sensitivity of 2 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit being tested, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP3000L-700
