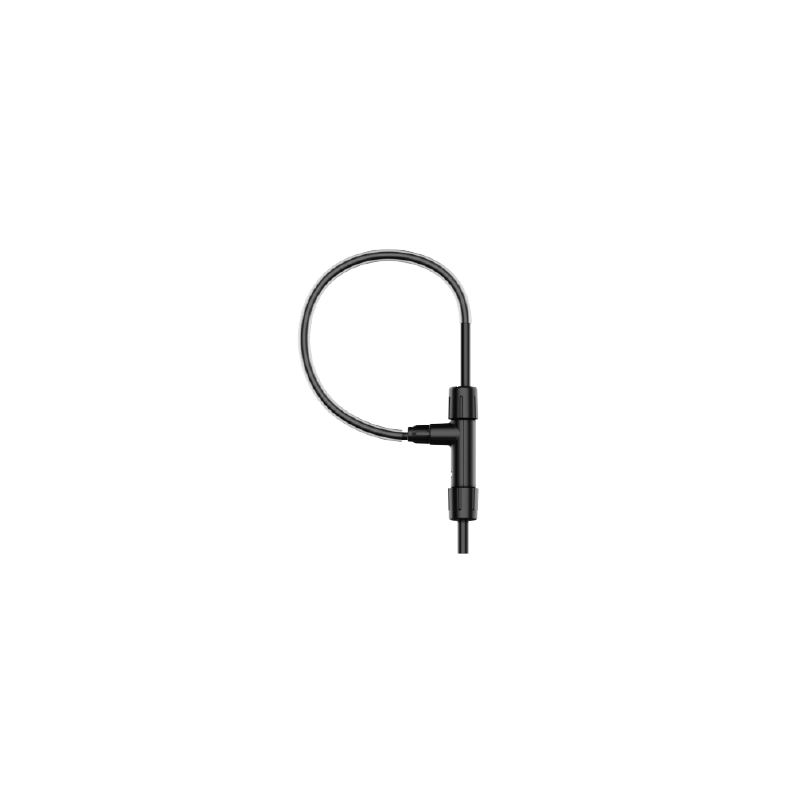

Micsig RCP120S-200 - Rogowski AC 120A current probe
ID: 1204908
zł5,338.20
Tax included
zł4,340.00 tax excl.
Rogowski current probe designed for measuring very high-amplitude AC currents up to 120 A, offering a wide bandwidth from 14 Hz to 25 MHz and a sensitivity of 50 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP120S-200
Description
Micsig RCP120S-200 is a Rogowski current probe designed for precise measurement of high-amplitude AC currents reaching up to 120 A. Thanks to Rogowski coil technology, the probe features near-zero insertion impedance, allowing measurements without affecting the tested circuit. This is particularly important in applications requiring high accuracy and minimal interference. The device offers a wide bandwidth of up to 25 MHz, enabling analysis of fast-changing signals and high-frequency waveforms. As a result, it is well suited for measuring currents in power transistors such as MOSFET, IGBT, SiC, and GaN, where capturing dynamic changes and high-order harmonics is essential.
The flexible coil design allows easy adaptation to hard-to-reach areas and measurements in systems with complex geometries. The compact cross-section of the coil enables operation even in very tight spaces, for example between semiconductor leads. The probe is equipped with a standard BNC connector, ensuring full compatibility with most oscilloscopes available on the market. With high voltage insulation up to 3 kV, it can be safely used in high-voltage applications.
Features
- Probe type: Rogowski (AC current measurement)
- Maximum current: 120 A (peak)
- Bandwidth: 14 Hz to 25 MHz
- Sensitivity: 20 mV/A (50X)
- Slew rate: 20 kA/μs
- Accuracy: 2%
- Voltage insulation: up to 3 kV (peak, for the coil)
- Output impedance: 1 MΩ
- Near-zero insertion impedance
- Interface: standard BNC connector
- Construction: flexible Rogowski coil
- Application: measurement of high-frequency, pulsed, and transient currents
- Use cases: motor drives, UPS/SMPS systems, MOSFET/IGBT (SiC, GaN) testing, harmonic analysis, three-phase systems
- Diameter: 3 mm
- Coil length: 200 mm
- Cable length: 1.5 m
- Power supply: DC 12 V
