- New

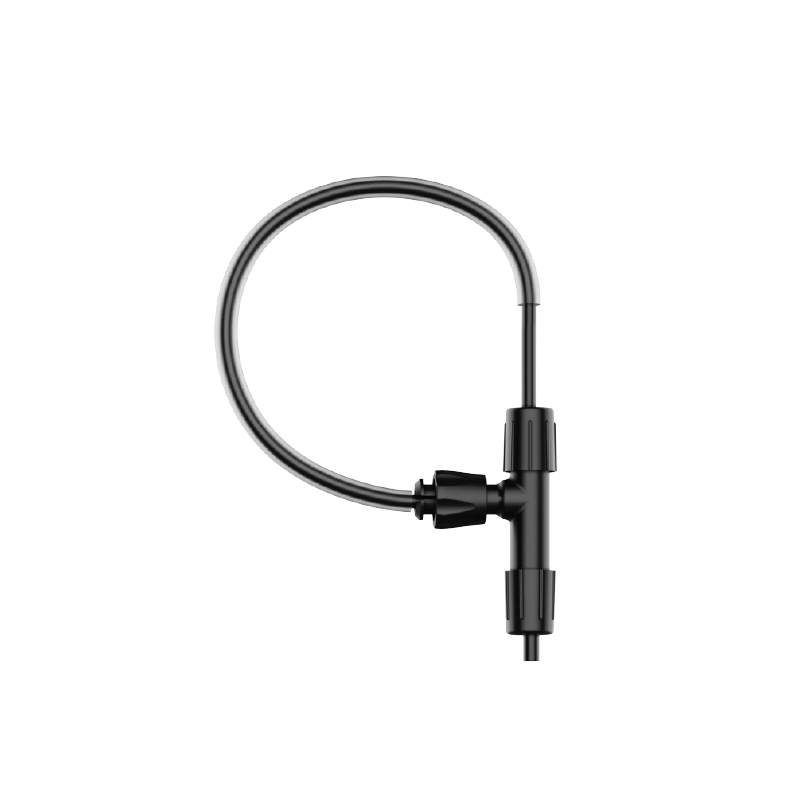

Micsig RCP6000M-700 - Rogowski AC 6000A Current Probe
ID: 1204921
zł5,338.20
Tax included
zł4,340.00 tax excl.
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 6000 A, offering a wide bandwidth from 3 Hz to 10 MHz and a sensitivity of 1 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit being tested, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP6000M-700
Description
Micsig RCP6000M-700 is a Rogowski current probe designed for precise measurement of high-amplitude AC currents reaching up to 6000 A. Thanks to Rogowski coil technology, the probe features near-zero insertion impedance, allowing measurements without affecting the tested circuit. This is particularly important in applications requiring high accuracy and minimal interference. The device offers a wide bandwidth of up to 10 MHz, enabling analysis of fast-changing signals and high-frequency waveforms. As a result, it is well suited for measuring currents in power transistors such as MOSFET, IGBT, SiC, and GaN, where capturing dynamic changes and high-order harmonics is essential.
The flexible coil design allows easy adaptation to hard-to-reach areas and measurements in systems with complex geometries. The compact cross-section of the coil enables operation even in very tight spaces, for example between semiconductor leads. The probe is equipped with a standard BNC connector, ensuring full compatibility with most oscilloscopes available on the market. With high voltage insulation up to 5 kV, it can be safely used in high-voltage applications.
Features
- Probe type: Rogowski (AC current measurement)
- Maximum current: 6000 A (peak)
- Bandwidth: 3 Hz to 10 MHz
- Sensitivity: 1 mV/A (1000X)
- Slew rate: 70 kA/μs
- Accuracy: 2%
- Voltage insulation: up to 5 kV (peak, for the coil)
- Output impedance: 1 MΩ
- Near-zero insertion impedance
- Interface: standard BNC connector
- Construction: flexible Rogowski coil
- Application: measurement of high-frequency, pulsed, and transient currents
- Use cases: motor drives, UPS/SMPS systems, MOSFET/IGBT (SiC, GaN) testing, harmonic analysis, three-phase systems
- Diameter: 4.5 mm
- Coil length: 700 mm
- Cable length: 1.5 m
- Power supply: DC 12 V
