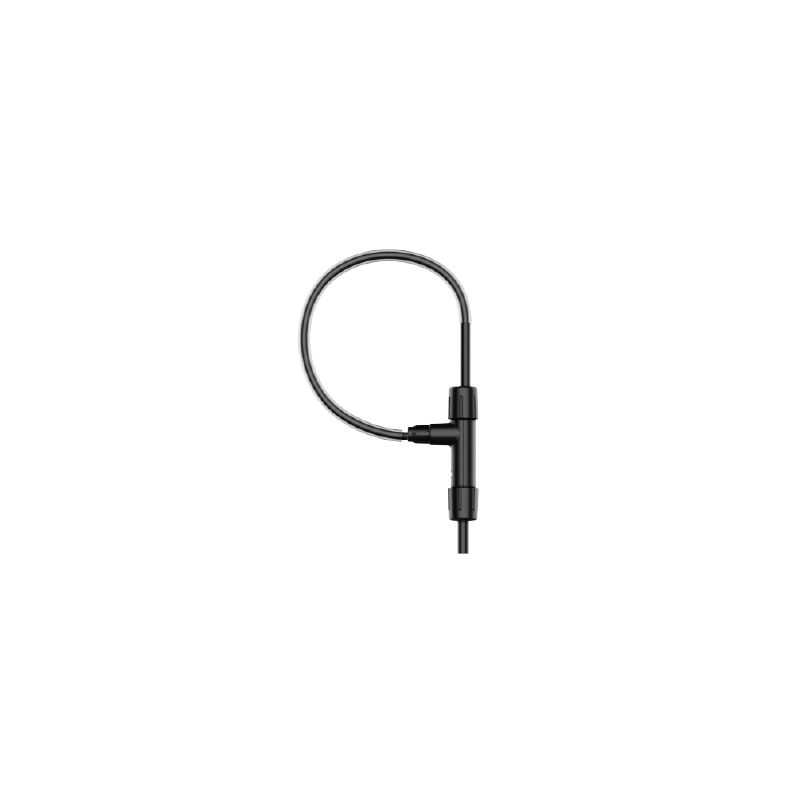

Micsig RCP3000S-200 - Rogowski AC 3000A Current Probe
ID: 1204912
zł5,338.20
Tax included
zł4,340.00 tax excl.
Rogowski current probe designed for measuring very high-amplitude alternating currents up to 3000 A, offering a wide bandwidth from 3 Hz to 25 MHz and a sensitivity of 2 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP3000S-200
Description
Micsig RCP3000S-200 is a Rogowski current probe designed for precise measurement of high-amplitude AC currents reaching up to 3000 A. Thanks to Rogowski coil technology, the probe features near-zero insertion impedance, allowing measurements without affecting the tested circuit. This is particularly important in applications requiring high accuracy and minimal interference. The device offers a wide bandwidth of up to 25 MHz, enabling analysis of fast-changing signals and high-frequency waveforms. As a result, it is well suited for measuring currents in power transistors such as MOSFET, IGBT, SiC, and GaN, where capturing dynamic changes and high-order harmonics is essential.
The flexible coil design allows easy adaptation to hard-to-reach areas and measurements in systems with complex geometries. The compact cross-section of the coil enables operation even in very tight spaces, for example between semiconductor leads. The probe is equipped with a standard BNC connector, ensuring full compatibility with most oscilloscopes available on the market. With high voltage insulation up to 3 kV, it can be safely used in high-voltage applications.
Features
- Probe type: Rogowski (AC current measurement)
- Maximum current: 3000 A (peak)
- Bandwidth: 3 Hz to 25 MHz
- Sensitivity: 2 mV/A (500X)
- Slew rate: 70 kA/μs
- Accuracy: 2%
- Voltage insulation: up to 3 kV (peak, for the coil)
- Output impedance: 1 MΩ
- Near-zero insertion impedance
- Interface: standard BNC connector
- Construction: flexible Rogowski coil
- Application: measurement of high-frequency, pulsed, and transient currents
- Use cases: motor drives, UPS/SMPS systems, MOSFET/IGBT (SiC, GaN) testing, harmonic analysis, three-phase systems
- Diameter: 3 mm
- Coil length: 200 mm
- Cable length: 1.5 m
- Power supply: DC 12 V
1204912
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Rogowski-type current probe for precise measurements of alternating currents with a frequency of up to 30 MHz. Thanks to the flexible coil of 1.6 mm thickness and almost zero impedance introduced, it is ideal for work in hard-to-reach places of power systems. The integrated amplifier and BNC interface enable accurate measurements and easy integration with oscilloscopes, making it an ideal tool for R&D laboratories and power electronics services. Micsig RCP300XS
zł4,059.00
Delivery date unknown
No product available!
Rogowski-type current probe for precise measurements of alternating currents with a frequency of up to 30 MHz. Thanks to the flexible coil of 1.6 mm thickness and almost zero impedance introduced, it is ideal for work in hard-to-reach places of power systems. The integrated amplifier and BNC interface enable accurate measurements and easy integration with oscilloscopes, making it an ideal tool for R&D laboratories and power electronics services. Micsig RCP1200XS
zł4,059.00
Delivery date unknown
No product available!
Rogowski-type current probe for precise measurements of alternating currents with a frequency of up to 30 MHz. Thanks to the flexible coil of 1.6 mm thickness and almost zero impedance introduced, it is ideal for work in hard-to-reach places of power systems. The integrated amplifier and BNC interface enable accurate measurements and easy integration with oscilloscopes, making it an ideal tool for R&D laboratories and power electronics services. Micsig RCP6000XS
zł5,145.95
Delivery date unknown
No product available!
Other products in the same category (16)
The Zeenko N 10 dB attenuator is a reliable accessory for any RF system user – from amateurs to professionals. It enables safe and precise measurements and provides better signal matching in the signal path. Thanks to its high durability (up to 5 W), it is suitable for a wide range of laboratory and field applications.
zł53.04
24h
Available quantity: 4
Available
This current probe is designed for measuring DC and AC current in power electronics systems and switching power supplies. It offers a 10 MHz DC bandwidth, a rise time of ≤ 46 ns, and two measurement ranges: 30 A and 150 A RMS, with a maximum peak current of up to 300 A. The device provides high measurement accuracy of ±1% and a resolution of up to 10 mA in the lower range. The BNC connector ensures compatibility with many oscilloscopes, and the 20 mm jaws enable current measurements in larger wires. Micsig CP1510
zł6,540.00
4 weeks
No product available!
This current probe is designed for measuring DC and AC current in power electronics systems and switching power supplies. It offers a 5 MHz DC bandwidth, a rise time of ≤ 70 ns, and two measurement ranges: 50 A and 300 A RMS, with a maximum peak current of up to 500 A. The device provides high measurement accuracy of ±1% and a resolution of up to 10 mA in the lower range. The BNC connector ensures compatibility with many oscilloscopes, and the 20 mm jaws enable current measurements in larger wires. Micsig CP3005
zł6,540.00
4 weeks
No product available!
Rogowski current probe designed for measuring high-amplitude AC currents up to 60 A, offering a wide bandwidth from 70 Hz to 30 MHz and a sensitivity of 100 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP60XS-80
zł4,821.60
4 weeks
No product available!
Rogowski current probe designed for measuring high-amplitude AC currents up to 120 A, offering a wide bandwidth from 34 Hz to 30 MHz and a sensitivity of 50 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP120XS-80
zł4,821.60
4 weeks
No product available!
Rogowski current probe designed for measuring high-amplitude AC currents up to 300 A, offering a wide bandwidth from 10 Hz to 30 MHz and a sensitivity of 20 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP300XS-80
zł4,821.60
4 weeks
No product available!
Rogowski current probe designed for measuring high-amplitude AC currents up to 600 A, offering a wide bandwidth from 8 Hz to 30 MHz and a sensitivity of 10 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP600XS-80
zł4,821.60
4 weeks
No product available!
Rogowski current probe designed for measuring high-amplitude AC currents up to 1200 A, offering a wide bandwidth from 5 Hz to 30 MHz and a sensitivity of 5 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP1200XS-80
zł4,821.60
4 weeks
No product available!
Rogowski current probe designed for measuring high-amplitude AC currents up to 3000 A, offering a wide bandwidth from 4 Hz to 30 MHz and a sensitivity of 2 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP3000XS-80
zł4,821.60
4 weeks
No product available!
Rogowski current probe designed for measuring high-amplitude AC currents up to 6000 A, offering a wide bandwidth from 4 Hz to 30 MHz and a sensitivity of 1 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful in analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP6000XS-80
zł4,821.60
4 weeks
No product available!

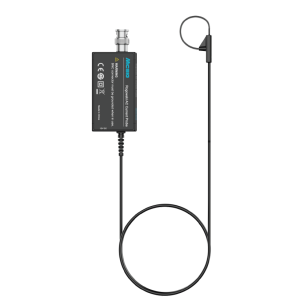

Rogowski current probe designed for measuring high-amplitude AC currents up to 12,000 A, offering a wide bandwidth from 2 Hz to 30 MHz and a sensitivity of 0.5 mV/A. Its near-zero impedance enables accurate measurements without affecting the circuit under test, which is useful for analyzing fast waveforms and power systems (MOSFETs, IGBTs, SiC, GaN). Micsig RCP12000XS-80
