Hantek PP-80B oscilloscope probe
ID: 1191574
5906623487301
zł23.52
Tax included
zł19.12 tax excl.
The PP80B oscilloscope probe is a reliable tool for precise measurements, compatible with digital and analog oscilloscopes, offering a bandwidth of up to 80 MHz and the ability to select the attenuation factor. Hantek PP-80B
Description

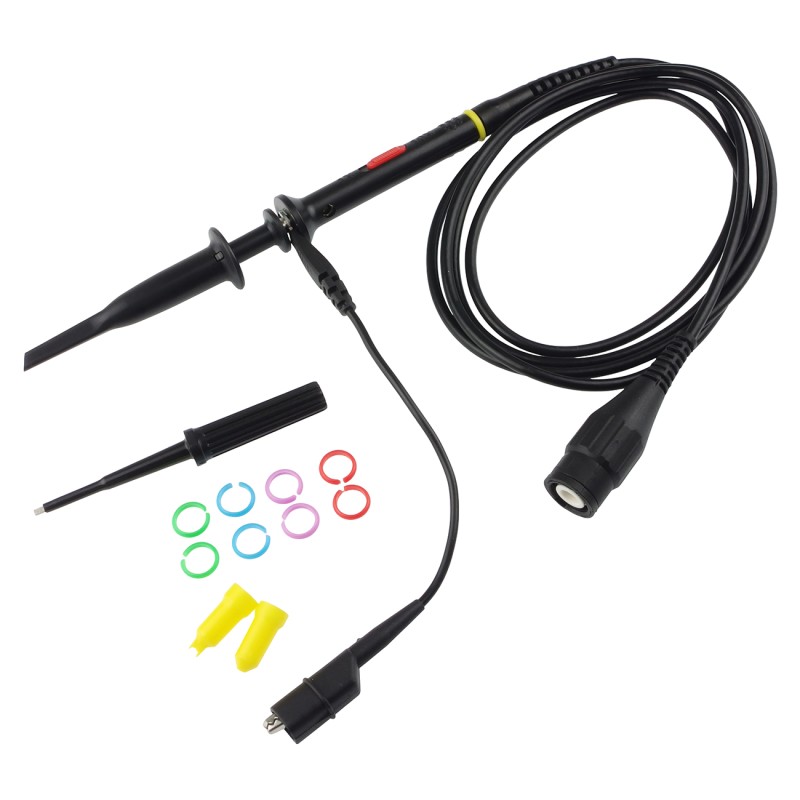

The PP80B oscilloscope probe is a high-quality accessory designed to work with digital and analog oscilloscopes. With a bandwidth of up to 80 MHz and an input voltage of up to 600 V DC, the probe is perfect for precise measurements in a variety of applications. Equipped with a switch for selecting the x1 or x10 damping coefficient, it allows you to adjust the operating parameters depending on your measurement needs. The probe has an adjustable compensation range and a standard BNC connector, which ensures compatibility with a wide range of oscilloscopes.
Features
- Bandwidth: DC-80MHz (x10), DC-6MHz (x1)
- Input voltage: <200V DC +Peak AC (x1), <600V DC +Peak AC (x10)
- Input resistance: 1MΩ (x1), 10MΩ (x10)
- Input Capacitance: 85pF-120pF (x1), 18.5pF-22.5pF (x10)
- Compensation range: 20pF-40pF
- Weight: 55 g
- Cable length: 120 cm
Package content
- PP80B oscilloscope probe
- Ground cable with crocodile clip
- Screwdriver to adjust the capacity
- 4 pairs of colored rings (for marking probes)
