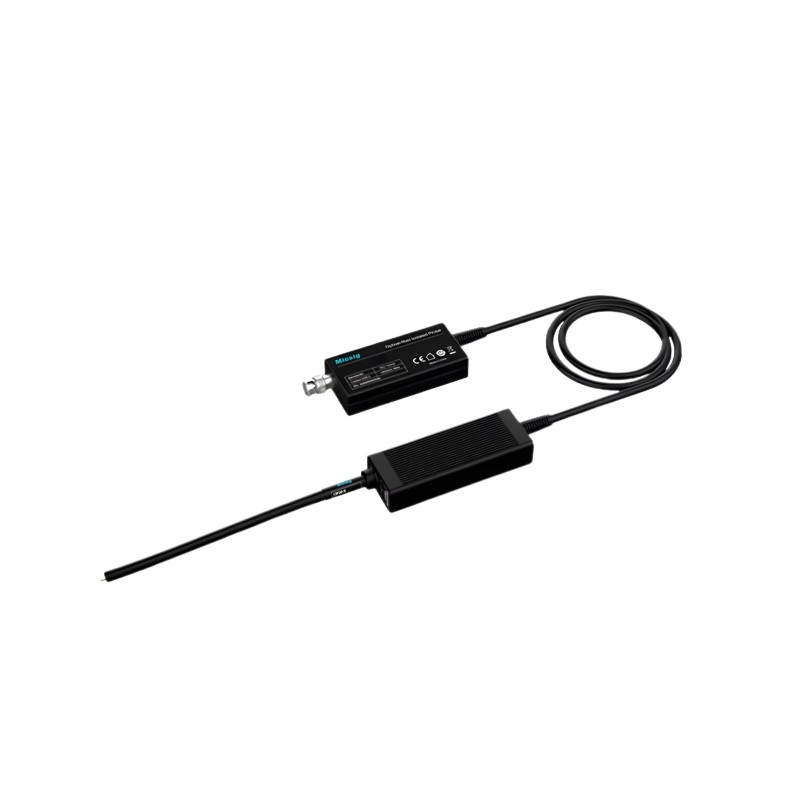

MOIP350P - isolated 350MHz fiber optic probe for Micsig oscilloscopes
ID: 1187016
zł26,099.00
Tax included
zł21,218.70 tax excl.
Isolated optical-fiber probe Micsig MOIP350P Gen 3 designed for differential measurements in power electronics systems, SiC and GaN applications, and high-voltage environments. The probe operates with bandwidth up to 350 MHz and uses SigOFIT optical isolation technology providing high CMRR, low noise level, and galvanic isolation up to 85 kVpk. Supports interchangeable attenuator tips and works with oscilloscopes equipped with a 50 Ω BNC input. Micsig MOIP350P Gen 3
Opis
Micsig MOIP350P Gen 3 optical-fiber isolated probe designed for fast differential measurements. The probe works with oscilloscopes equipped with a 50 Ω BNC input and the SigOFIT optical isolation system used in Micsig measurement equipment. The probe operates with bandwidth up to 350 MHz and supports floating measurements in environments with high electromagnetic interference levels.
High common-mode rejection ratio
The SigOFIT optical isolation technology provides extremely high common-mode rejection ratio (CMRR) reaching up to 180 dB at DC and 118 dB at 350 MHz. The design effectively suppresses oscillations and interference caused by high-frequency common-mode noise, enabling stable differential measurements in power electronics systems, inverters, converters, and applications based on SiC and GaN transistors.
Automatic Calibration
The probe offers excellent amplitude-frequency characteristics with DC gain accuracy of 1%. Noise level has been reduced below 0.3 mVrms, enabling more accurate analysis of low-amplitude signals and fast signal edges. The Gen 3 version features automatic calibration and 0 dB / 20 dB gain switching for improved signal-to-noise ratio during measurements. The design uses optical-fiber signal transmission between O-E and E-O converters, providing galvanic isolation up to 85 kVpk.
Interchangeable attenuator tips
The SigOFIT series supports interchangeable attenuator tips allowing adjustment of the measurement range to the tested application. The MOIP350P Gen 3 is supplied with OP50 (MMCX) attenuator tips supporting measurements up to ±25 V and OP5000 (MCX) attenuator tips supporting measurements up to ±2500 V. Additional configurations and custom measurement ranges are also available.
The probe is suitable for industrial applications, automotive electronics, power systems, EMI/ESD testing, inverters, converters, and development of systems based on SiC, GaN, and IGBT transistors. Optical signal isolation and low noise level enable floating measurements in environments with strong electromagnetic interference.
Właściwości
- Bandwidth: 350 MHz
- Rise time: ≤1 ns
- CMRR:
- DC: 180 dB
- 350 MHz: 118 dB
- Standard attenuator tips:
- OP50 (MMCX): ±25 V
- OP5000 (MCX): ±2500 V
- Support for additional measurement ranges
- Noise level: <0.3 mVrms
- DC gain accuracy: 1%
- Common-mode voltage range: 85 kVpk
- 0 dB / 20 dB gain switching
- Automatic calibration
- Power supply: DC 12 V
- Interface: universal BNC connector
- Optical-fiber cable length: 2 m
- Compatible with 50 Ω oscilloscopes
- SigOFIT optical isolation
- Floating measurement support
- Compatible with MMCX, MCX, and LCX accessories
- Supported SigOFIT attenuator tips: OPxx-5, OPxxx-5, and OPxxxx-5
Kit includes
- MOIP350P Gen 3 probe
- OP50 (MMCX) attenuator tip
- OP5000 (MCX) attenuator tip
- USB Type-C cable
- Power adapter
- Probe holder
- Carrying case
- Quick start guide
- Calibration certificate
