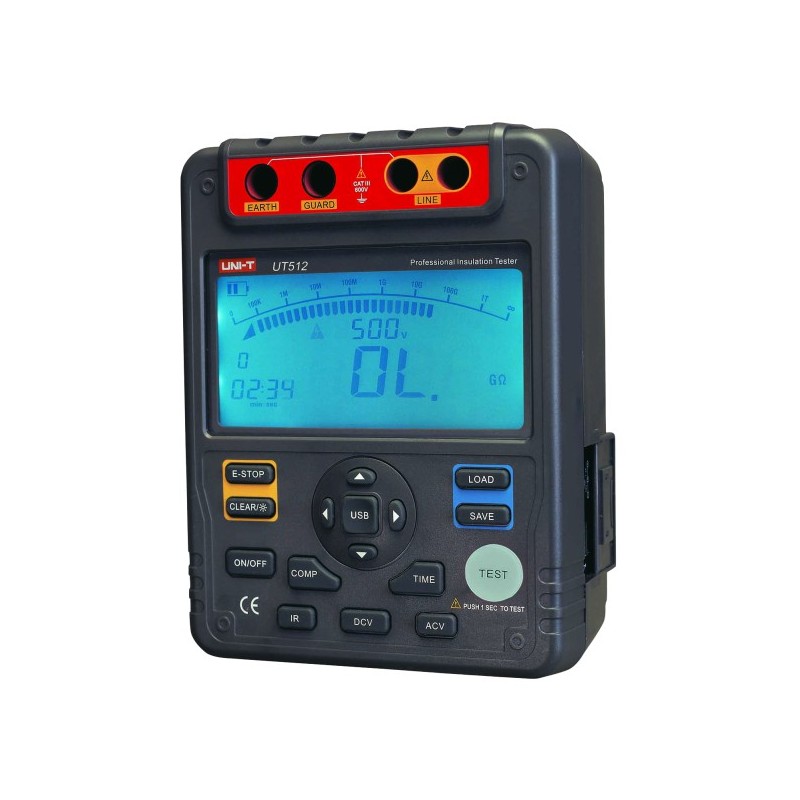

UNI-T UT512 - insulation resistance meter
ID: 233283
6935750551202
zł645.96
Tax included
zł525.17 tax excl.
Digital insulation resistance meter, enabling measurement up to 100 GΩ and AC/DC voltage up to 600 V, equipped with DAR and PI functions for insulation assessment. Thanks to the USB interface, measurement memory and solid construction, it is an ideal tool for diagnosing electrical installations in industry and power engineering. UNI-T UT512
Description
UT512 is a digital insulation resistance tester that provides high accuracy and a wide range of applications for diagnosing electrical devices. In addition to measuring insulation resistance up to 100 GΩ, it also enables the measurement of AC and DC voltage up to 600 V. With functions to measure dielectric absorption ratio (DAR) and polarization index (PI), it allows a comprehensive assessment of insulation condition. The device features a large, backlit LCD display for clear readability, even in difficult lighting conditions. Additionally, a 30-segment bar graph helps visualize measurements. The meter also includes a data memory function with 18 storage cells, making it easy to compare results.
With a USB interface, users can transfer data to a computer and analyze it using dedicated software. Built-in safety features, such as a low battery indicator, range overrun warning, and high voltage indicator, enhance the reliability of the device. The meter is powered by eight 1.5V LR14 batteries or an external power supply. Its robust design, intuitive operation, and extensive measurement capabilities make the UT512 an ideal tool for professional applications in electrical power, industry, and electrical installation service.
Features
- Insulation resistance measurement: up to 100 GΩ
- Test voltages: 500V, 1000V, 1500V, 2500V
- AC/DC voltage measurement: up to 600 V
- Dielectric absorption ratio (DAR) measurement
- Polarization index (PI) measurement
- Data memory: up to 18 cells
- USB interface: allows data transfer to a computer
- LCD display: backlit, with a bar graph (30-segment analog scale)
- Safety indicators: low battery, range overrun, high voltage
- Power supply: 8 x 1.5V LR14 batteries or external power supply
- Working time: approximately 15 minutes per measurement
- Dimensions: 202 x 155 x 94 mm
- Weight: 1.8 kg
Kit contains
- UT512 insulation resistance tester
- Crocodile test leads (green, black, red)
- External power supply
- 8 x 1.5V LR14 batteries
- USB cable
- CD with software
- Carrying case
233283
Manufacturer Lechpol Electronics Leszek Spółka komandytowa Garwolińska 1 08-400 Miętne Poland sprzedaz@lechpol.pl
Responsible person Lechpol Electronics Leszek Spółka komandytowa Garwolińska 1 08-400 Miętne Poland sprzedaz@lechpol.pl
