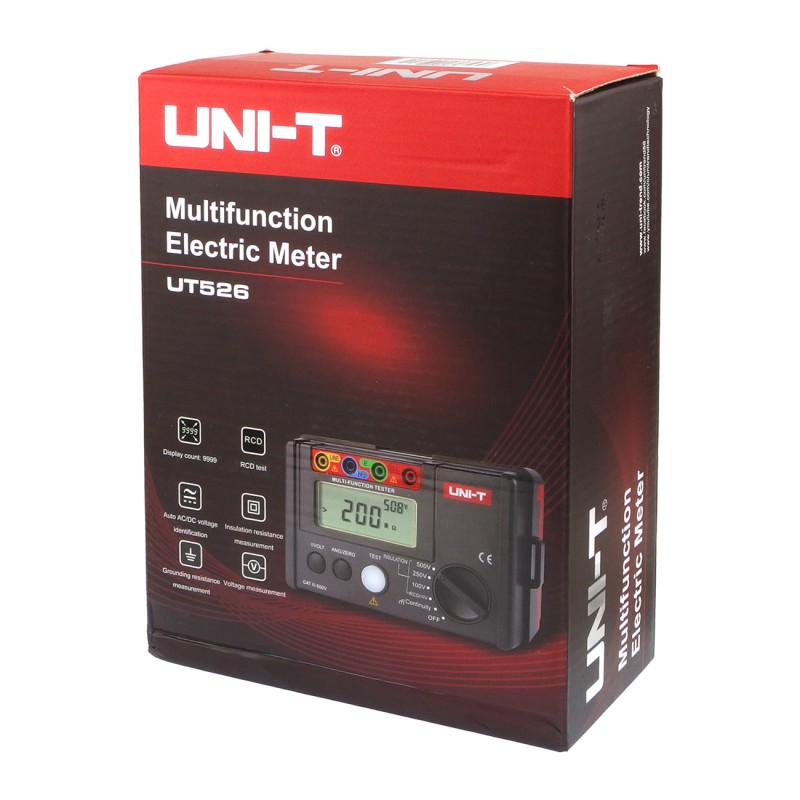

UT526 – multifunction tester for insulation, RCD, and resistance measurement – UNI-T
ID: 233285
6935750552605
zł695.15
Tax included
zł565.16 tax excl.
UT526 is a multifunction meter for comprehensive electrical installation measurements, including insulation tests, RCD operation, and circuit continuity. With a wide range of test voltages and data storage functions, it is perfectly suited for inspection, measurement, and service work.
Description

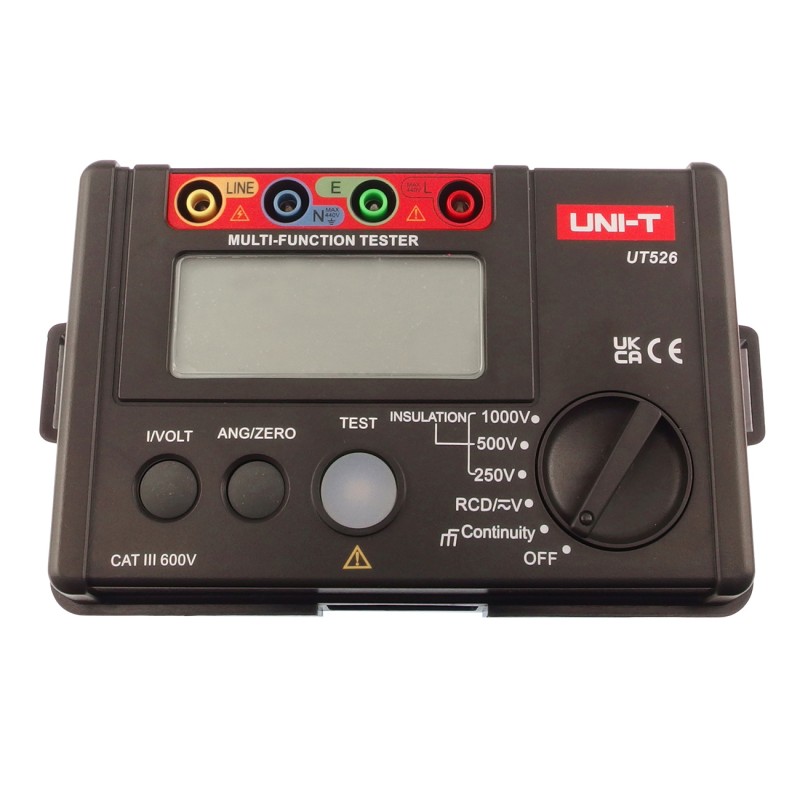

UT526 is a digital electrical tester designed for measuring insulation resistance, residual current devices (RCD), circuit continuity, and AC/DC voltage. It supports test voltages of 250 V, 500 V, and 1000 V, enabling insulation resistance measurements over a wide range. Integrated RCD testing functions at different trip currents (10 mA, 30 mA, 100 mA, 300 mA) allow for comprehensive installation diagnostics.
The meter features auto-ranging, a backlit LCD display, analog bar graph, result memory, and high-voltage warnings. The device also includes continuous test mode with latch, comparative measurement, and polarization index functions. Powered by batteries or mains, it is ideal for service and quality control of electrical installations.
Properties
- Insulation resistance measurement: 0.05 MΩ...200 MΩ
- Test voltages: 250 V / 500 V / 1000 V
- RCD tests: 10 mA, 30 mA, 100 mA, 300 mA
- AC/DC voltage measurement
- Low resistance measurement (continuity)
- Auto-ranging
- Comparative measurement
- Polarization index measurement
- Latch mode (self-lock) for insulation test
- Result memory
- Backlit display
- Analog bar graph
- High-voltage warning
- Battery level indicator
- Sleep mode
- Power supply: 8 × 1.5 V R14 or mains adapter
- Display size: 123 × 58 mm
- Dimensions: 202 × 155 × 94 mm
- Weight: 2 kg
