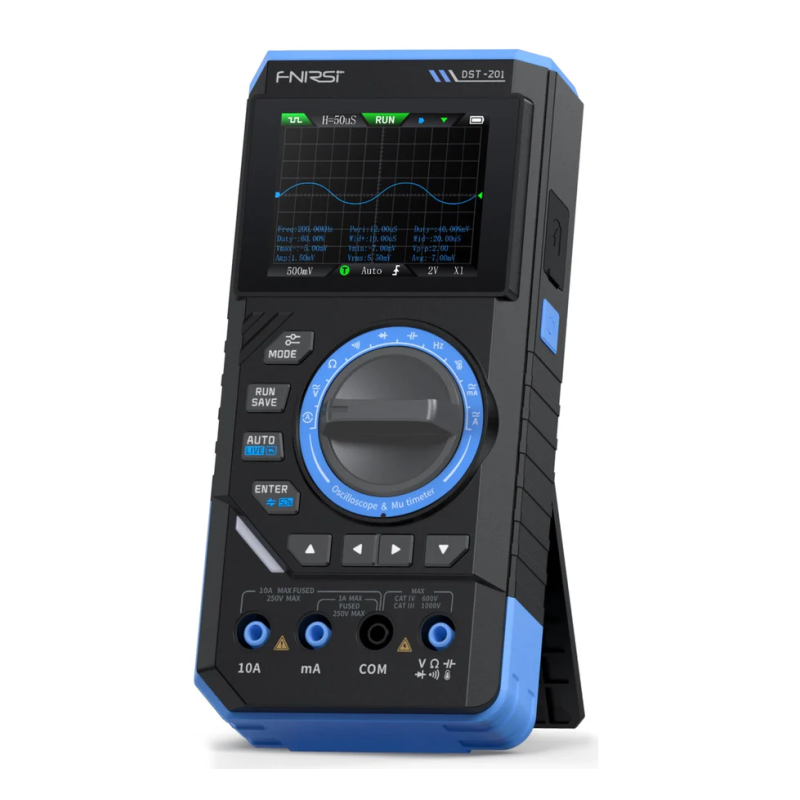

Fnirsi DST-201 - portable 3-in-1 measuring device (multimeter, oscilloscope, signal generator)
ID: 1198877
5902186305472
zł199.00
Tax included
zł161.79 tax excl.
A compact 3-in-1 device that combines an oscilloscope, signal generator and digital multimeter, offering a wide range of measurement capabilities in one tool. With a 1MHz bandwidth, 5 MSa/s sampling and 13 waveform generation function, it is perfect for analyzing and testing electronic systems. The color display, built-in 3000mAh battery and handy housing make it a practical solution both in the workshop and in the field. Fnirsi DST-201
Description
FNIRSI DST-201 is a multifunctional 3-in-1 device, combining a digital oscilloscope, signal generator, and multimeter in one compact unit. This tool is designed for professionals, electronics enthusiasts, service technicians, and home users alike. The DST-201 model offers a sampling rate of 5 MSa/s and analog bandwidth of 1 MHz, enabling accurate signal analysis in various applications.
Thanks to its signal generator function with 13 waveform types and frequency up to 10 kHz, the device is ideal for testing electronic circuits and components. The built-in digital multimeter allows precise measurement of AC/DC voltage, current, resistance, capacitance, temperature, and frequency. Additionally, diode testing and continuity check functions significantly simplify diagnostics. This versatile tool is indispensable both in the service workshop and during the design of new solutions.
The device features a 2.8-inch color TFT screen with adjustable backlight, ensuring clear and readable measurement results in various lighting conditions. The built-in 3000 mAh battery allows for up to 15 hours of standby operation, enhancing mobility and user convenience. Additional functions such as overload protection safeguard the device and the user from damage and danger. The HOLD function and automatic measurements facilitate signal analysis and reduce work time. Adjustable trigger level allows for precise parameter tuning, improving comfort and efficiency during testing.
The entire device is enclosed in a handy and lightweight housing, making it a perfect companion both in the workshop and in the field. It supports two languages (Chinese and English) and can work with various probe types, including the P6100 oscilloscope probe and DMM test leads. This is a complete solution for diagnosing, testing, and analyzing electronic circuits.
Features
Oscilloscope
- Sampling rate: 5MSa/s
- Bandwidth: 1MHz
- Input impedance: 1MΩ
- Test voltage range: up to ±400V (with 10:1 probe)
- Coupling modes: AC/DC
- Vertical sensitivity: 10mV/div ~ 10V/div
- Time base: 500ns~20s
- Trigger modes: Auto / Normal / Single
- Trigger types: rising / falling edge
- HOLD function, automatic measurements (Max, Min, RMS, Freq, etc.)
Multimeter
- DC Voltage: up to 1000V
- AC Voltage: up to 750V
- DC/AC Current: up to 9.999A
- Resistance: up to 19.999MΩ
- Capacitance: up to 99.99mF
- Frequency: up to 9.999MHz
- Temperature: from -55°C to 1300°C
- Continuity and diode test: YES
- Live wire detection (LIVE): YES
Signal Generator
- 13 waveform types
- Frequency range: 0-10KHz
- Amplitude: 0.1V - 3.0V
- Duty cycle adjustment for square and sawtooth waveforms: 0-100%
General
- Display: 2.8" color TFT with brightness adjustment
- Power supply: USB Type-C (5V/1A), 3000mAh battery
- Standby time: up to 15 hours
- Languages: Chinese, English
- Dimensions: 177.43 x 87.47 x 34.5 mm
- Weight: 300 g
Kit contains
- FNIRSI DST-201
- DMM test leads
- Alligator clip probe
- USB charging cable
1198877
Data sheet
- Type of oscilloscope
- Portable
- Bandwidth
- 1 MHz
- Sampling rate
- 5 MSa/s
- Memory depth
- Inny
- Number of channels
- 1
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
