zł539.50 tax excl.

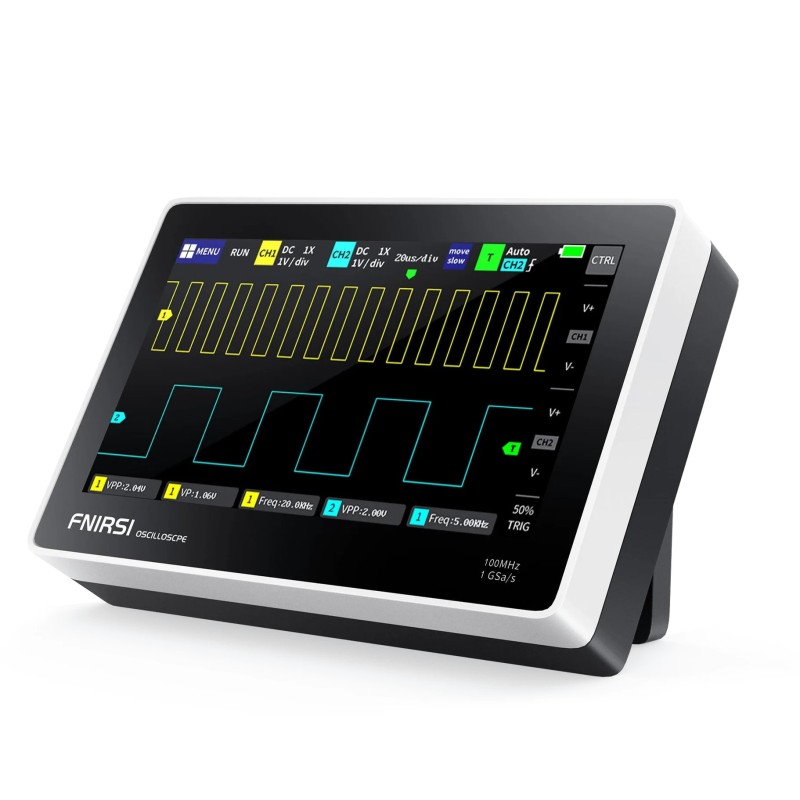

Portable digital oscilloscope with two measurement channels. It offers a frequency bandwidth of 100 MHz and at a sampling rate of 1 GS/s. It has a large, clear 7" LCD display with touch panel. Fnirsi 1013D
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Portable digital oscilloscope with two measurement channels. Offering a frequency bandwidth of 100 MHz and with a sampling rate of 1 GS/s, the oscilloscope allows real-time detection of signal variations. The instrument can measure basic parameters including frequency, period and duty cycle of a signal. Also worth noting is the trigger mode, which can operate in automatic, normal or single measurement mode. The maximum voltage that can be applied to the measurement connector is 40 V with an x1 divider and 400 V with an x10 divider. The Autoset function makes it easy to adjust the time base and voltage sensitivity automatically to suit the signal under test. The oscilloscope is powered by a 6000 mAh battery, allowing 4 h of continuous operation. It is charged via a USB connection. The waveforms are presented on a built-in, large 7" LCD display, guaranteeing good visibility of the waveforms. It will prove useful in all conditions, especially as a pocket tool for working outside the workshop.
Features
- Number of channels: 2
- Bandwidth: 100 MHz
- Sampling frequency: 1 Gsa/s
- Sampling memory depth: 240 kb
- ADC: 8 bit
- Horizontal sensitivity: 10 ns to 50 s/div
- Vertical sensitivity: 50 mV to 500 V/div
- Trigger mode: auto, normal, single measurement
- Trigger type: rising edge, falling edge
- Trigger level: adjustable
- Input resistance: 1MΩ
- Input voltage: 40 V to 400 V (probe x10)
- Autoset function
- Automatic measurement of basic parameters
- Coupling mode: DC, AC
- 7'' LCD colour display
- Display resolution: 800 x 480 px
- Touch panel
- Built-in memory 1 GB
- Power supply: 6000 mAh rechargeable battery (up to 4 hours of operation)
- Charging connector: USB 5V
- Dimensions: 184 x 124 x 50 mm
Kit contains
- 1013D oscilloscope
- USB cable
- 2 x measuring probe
