Fnirsi DSO-TC4 - portable oscilloscope with transistor tester and DDS generator
ID: 1198876
5902186305465
zł254.43
Tax included
zł206.85 tax excl.
Compact 3 in 1 digital oscilloscope that combines the functions of an oscilloscope, electronic component tester and signal generator. The device offers a 10MHz bandwidth, 48MSa/s sampling and automatic recognition of components such as transistors, diodes and thyristors. With a 2.8" color screen, 1500mAh battery and lightweight design, the DSO-TC4 is ideal for both the workshop and the field. Fnirsi DSO-TC4
Description
The FNIRSI DSO-TC4 is a compact 3-in-1 digital oscilloscope that combines the functions of an oscilloscope, transistor tester, and signal generator. Designed for electronic service centers, laboratories, and electronics enthusiasts, it offers a versatile and portable measurement solution. The device features a 10 MHz analog bandwidth and a sampling rate of 48 MSa/s, enabling precise signal analysis.
The DSO-TC4 can automatically identify electronic components such as transistors, diodes, FETs, and thyristors, and accurately analyze their parameters. The built-in signal generator can output 13 waveform types with frequencies up to 50 KHz and voltages up to 3 V. Thanks to its 2.8-inch color TFT display, all data is presented clearly and legibly. Powered by a built-in 1500 mAh lithium battery, the device offers up to 4 hours of cordless operation. Its lightweight and compact design makes it perfect for field work. With a multilingual interface and intuitive operation, the DSO-TC4 is an ideal tool for professionals and hobbyists in need of a versatile signal and component analyzer.
Features
- Oscilloscope:
- Sampling rate: 48 MSa/s
- Analog bandwidth: 10 MHz
- Vertical sensitivity: 10mV/div – 10V/div
- Time base range: 50 ns – 20 s
- Trigger modes: Auto / Normal / Single
- Trigger types: Rising / Falling edge
- Voltage range: 80 Vpp (1:1), 800 Vpp (10:1)
- Measurement functions: Max, Min, RMS, Vpp, frequency, period, duty cycle
- Component tester:
- Transistors: hFE, Ube, Iceo, Ices
- Diodes, Zener: Vf, Cj, reverse current
- FET, IGBT, MOSFET: Vgs, Id, Rds, Vt
- SCR/triac: gate voltage/current
- Resistors: 0.01Ω – 50MΩ
- Capacitors: 25pF – 100mF
- Inductors: 10μH – 1000μH
- Sensor support: DS18B20, DHT11
- Signal generator:
- Waveforms: 13 types
- Frequency: 0 – 50 KHz
- Amplitude: 0.1V – 3.0V
- Duty cycle adjustment: 0 – 100%
- General:
- Display: 2.8" color TFT with adjustable brightness
- Power supply: USB-C (5V/1A), 3.7V / 1500mAh lithium battery
- Operating time: up to 4 hours
- Languages: Chinese, English, German, Portuguese, Japanese, Spanish, Korean, Russian
- Dimensions: 90 × 142 × 27.5 mm
- Weight: 186 g

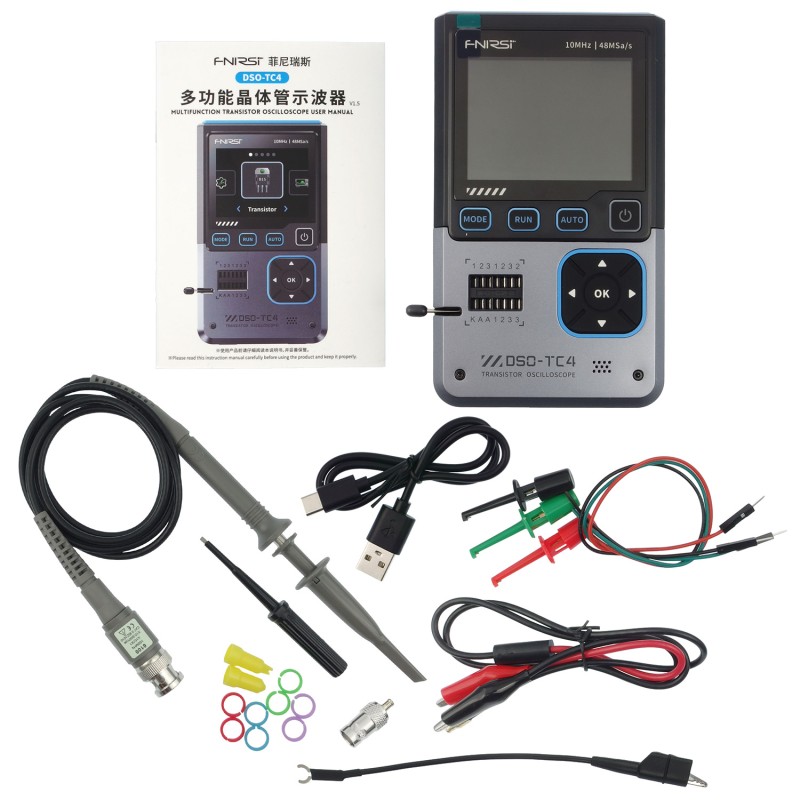

Kit contains
- FNIRSI DSO-TC4 oscilloscope
- P6100 oscilloscope probe
- Alligator clip wires
- 3 × Test hooks
- USB Type-C cable
- Power adapter
1198876
Data sheet
- Type of oscilloscope
- Portable
- Bandwidth
- 10 MHz
- Sampling rate
- 48 MS/s
- Memory depth
- Inny
- Number of channels
- 1
