5012H - Portable 100MHz digital oscilloscope
ID: 1184600
5906623434589
zł352.21
Tax included
zł286.35 tax excl.
Portable digital oscilloscope with one measurement channel. It offers a frequency bandwidth of 100 MHz and at a sampling rate of 500 MS/s. Fnirsi 5012H
Description
Portable digital oscilloscope with one measurement channel. Offering a frequency bandwidth of 100 MHz and with a sampling rate of 500 MS/s, the oscilloscope allows real-time detection of signal changes. The instrument can measure basic parameters including frequency, period and duty cycle of a signal. Also worth noting is the trigger mode, which can operate in automatic, normal or single measurement mode. The maximum voltage that can be applied to the measurement junction is 80 V with an x1 divider and 800 V with an x10 divider. The Autoset function makes it easy to adjust the time base and voltage sensitivity automatically to suit the signal under test. The oscilloscope is powered by a 5000 mAh battery. It is charged via a USB connection. The waveforms are presented on a built-in 2.4" TFT LCD display, guaranteeing good visibility of the waveforms. It will prove its worth in all conditions, particularly as a pocket tool for working outside the workshop.
Features
- Number of channels: 1
- Bandwidth: 100 MHz
- Sampling frequency: 500 Msa/s
- Sampling memory depth: 128 kb
- ADC: 8 bit
- Horizontal sensitivity: 6 ns to 50 s/div
- Vertical sensitivity: 50 mV to 100 V/div
- Trigger mode: auto, normal, single measurement
- Trigger type: rising edge, falling edge
- Trigger level: adjustable
- Input resistance: 1MΩ
- Input voltage: 80 V to 800 V (probe x10)
- Built-in memory (up to 2000 waveforms)
- Autoset function
- Automatic measurement of basic parameters
- Coupling mode: DC, AC
- IPS 2.4'' colour LCD display
- Display resolution: 320x240 px
- Power supply: 5000 mAh battery
- Charging connector: USB 5V
- Dimensions: 114 x 74 x 33 mm
Kit contains
- Fnirsi 5012H oscilloscope
- USB cable
- P6100 measuring probe
- Cover
1184600
Data sheet
- Type of oscilloscope
- Portable
- Bandwidth
- 100 MHz
- Sampling rate
- 500 Ms/s
- Memory depth
- 128 kpts
- Number of channels
- 1
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
A 3-in-1 device that combines a digital oscilloscope with an LCR tester and a DDS generator. It allows oscilloscope measurements and testing of electronic components, including diodes and transistors, as well as generation of digital signals. Fnirsi DSO-TC3
Regular pricezł270.54zł189.00
24h
Available quantity: 14
Available
Other products in the same category (16)
Portable digital oscilloscope with built-in signal generator and multimeter. It has two measurement channels with a bandwidth of 10 MHz and a single-channel signal generator with a frequency of up to 2 MHz. Fnirsi 2C23T High profile
zł294.07
6 weeks
No product available!
Portable digital oscilloscope with one measurement channel. It offers a frequency bandwidth of 110 MHz and at a sampling rate of 500 MS/s. Fnirsi 1C15
zł275.64
6 weeks
No product available!
A 2-in-1 device that combines a digital oscilloscope with an LCR tester. It allows oscilloscope measurements and testing of electronic components, including diodes and transistors. Fnirsi DSO-TC2 Standard
Regular pricezł206.90zł165.52
24h
Available quantity: 5
Available
Fnirsi DSO153 is a portable oscilloscope with high functionality, ideal for hobbyists in electronics. With its compact design, high-resolution display, and long battery life, this device is perfect for use in the field and in the workshop. The built-in signal generator and easy operation with a single AUTO button further enhance its versatility. Fnirsi DSO153
zł130.11
6 weeks
No product available!

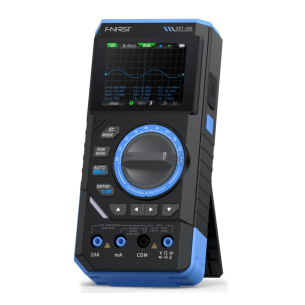

A compact 3-in-1 device that combines an oscilloscope, signal generator and digital multimeter, offering a wide range of measurement capabilities in one tool. With a 10MHz bandwidth, 48MSa/s sampling and 13 waveform generation function, it is perfect for analyzing and testing electronic systems. The color display, built-in 3000mAh battery and handy housing make it a practical solution both in the workshop and in the field. Fnirsi DST-210
zł249.00
6 weeks
No product available!
Portable digital oscilloscope with two measurement channels. It offers a frequency bandwidth of 100 MHz and at a sampling rate of 1 GS/s. It has a large, clear 7" LCD display with touch panel. Fnirsi 1013D
Regular pricezł735.37zł489.97
24h
Available quantity: 12
Available
Portable digital oscilloscope with built-in signal generator and multimeter. It has two measurement channels with a bandwidth of 10 MHz and a single-channel signal generator with a frequency of up to 2 MHz. Fnirsi 2C23T
zł259.00
6 weeks
No product available!
Pocket-sized digital oscilloscope in assembled form. Based on an ARM Cortex-M3 core microcontroller, it is equipped with a 320x240 pixel colour display. Fnirsi DSO150
zł119.90
24h
Available quantity: 3
Available

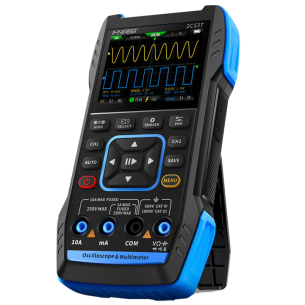

Fnirsi 2C53T High Profile - 2-channel 50MHz oscilloscope with multimeter and generator + accessories
