ID: 1196839
5902186306684
zł366.86
Tax included

zł298.26 tax excl.

A compact 3-in-1 device combining an oscilloscope, multimeter, and signal generator, designed for electronics professionals and enthusiasts. Equipped with two 50 MHz channels, a 250 MS/s sampling rate, and a built-in 4.5-digit multimeter, it provides precise measurements of signals and electrical parameters. With a color HD screen, long-lasting battery, and data logging capabilities, it's the ideal tool for laboratory, service, and field work. Fnirsi 2C53T High Profile

6 weeks
Awaiting delivery
Kamami is the official distributor of Fnirsi measuring tools. All products of this brand in our offer are original and come directly from the manufacturer.

Description

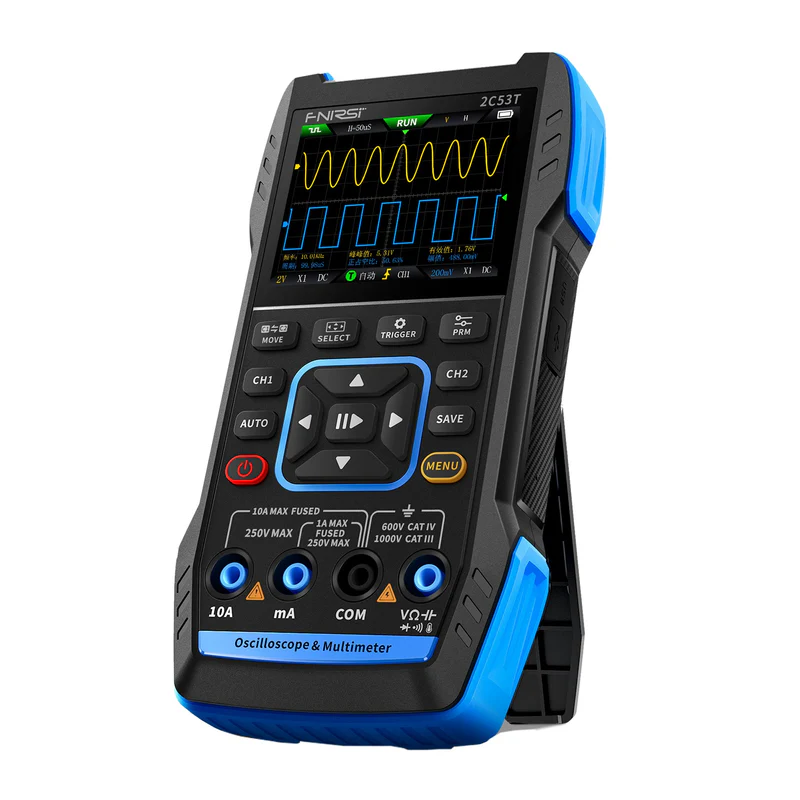

FNIRSI 2C53T is a modern, portable 3-in-1 measuring device that combines the functions of a digital oscilloscope, multimeter, and DDS signal generator. It is an excellent choice for professionals, service technicians, teachers, students, and electronics enthusiasts. Thanks to advanced hardware architecture based on FPGA, ARM, and ADC converter, the device provides high measurement accuracy and fast response.

p1196839-FNIRSI_2C53T_Upgrade_3in1_Oscilloscope_Multimeter_Signal_Generator_Detail_PC_05.png

The oscilloscope offers a 50 MHz analog bandwidth and 250MS/s sampling rate, allowing for highly accurate signal analysis. It has two independent measurement channels, FFT function, and mathematical operations for deeper signal analysis. The built-in high-voltage protection module allows safe measurements of signals up to ±400 V. The waveform saving and exporting feature enables later analysis or measurement documentation. The multimeter offers voltage, current, resistance, capacitance, temperature measurements, as well as continuity and diode tests with 4.5-digit accuracy (19999 counts). The built-in DDS signal generator supports 13 waveform types and offers frequency adjustment up to 50 kHz with 1 Hz accuracy. Amplitude and duty cycle adjustment allow precise output signal tuning to testing needs.

A clear 2.8-inch LCD screen with 320x240 pixel resolution ensures comfortable operation and a sharp image. The interface is intuitive, clear, and functional. The device is powered by a built-in 3000 mAh lithium battery, allowing up to 6 hours of operation without charging. Charging is done via USB-C port, providing convenience and universality. Compact size and light weight make the FNIRSI 2C53T ideal for field work and easy transport.

p1196839-FNIRSI_2C53T_Upgrade_3in1_Oscilloscope_Multimeter_Signal_Generator_Detail_PC_14.png

The FNIRSI 2C53T is a device that combines the functionality of several instruments, saving space and time. It is perfect for electronic service, repair workshops, school labs, or home laboratories. Integrated measurement functions eliminate the need for separate devices. With a wide measurement range, users can perform almost all basic and advanced tests. The sturdy housing and high-quality construction ensure long equipment life. The ability to save graphs for documentation is another advantage of this device. FNIRSI 2C53T represents modern measurement technology in a compact form.

Features

  • Oscilloscope:
    • Number of channels: 2
    • Sampling rate: 250MS/s
    • Analog bandwidth: 50MHz
    • Memory depth: 1Kpts
    • Input impedance: 1MΩ
    • Time base: 10ns–20s
    • Vertical sensitivity: 10mV/div – 10V/div (x1)
    • Maximum input voltage: ±400V
    • Trigger modes: AUTO / Normal / Single
    • Trigger type: rising / falling edge
    • Display modes: Y-T / Rolling / X-Y
    • Coupling: AC / DC
    • Persistence mode: OFF / 500ms / 1s / ∞
    • Mathematical operations: 8 basic + FFT
    • Waveform snapshots
    • Image export
    • Cursor measurements
  • Signal Generator:
    • Signal types: 13 (sine wave, square wave, sawtooth wave, half wave, full wave, positive step wave, inverse step wave, exponential rise, exponential decay, DC, multichannel, pulse train, Lorentz wave)
    • Output frequency: 0–50KHz
    • Output amplitude: 0–3V
    • Duty cycle: 0–100%
  • Multimeter:
    • DC voltage: 1.9999V / 19.999V / 199.99V / 1000V
    • AC voltage: 1.9999V / 19.999V / 199.99V / 750V
    • DC/AC current: up to 9.999A (4 ranges)
    • Resistance: from 199.99Ω to 19.999MΩ
    • Capacitance: from 9.999nF to 99.99mF
    • Temperature measurement: -55℃ to 1300℃
    • Diode test
    • Continuity test
  • Display: Color 2.8 inch, 320x240 px
  • Battery: 3000 mAh, up to 6 hours operation
  • Power/Charging: USB-C 5V/1A
  • Dimensions: 167 x 89 x 35 mm
  • Weight: 300 g

Kit contains

  • FNIRSI 2C53T Oscilloscope
  • 2 x 10X Probe
  • Alligator clip cable
  • Multimeter test leads
  • USB-C charging cable
  • Carrying case
1196839

Data sheet

Type of oscilloscope
Portable
Bandwidth
50 MHz
Sampling rate
250 MS/s
Memory depth
1 Kpts
Number of channels
2
