Fnirsi DST-210 - portable 3-in-1 measuring device (multimeter, oscilloscope, signal generator)
ID: 1198879
5902186305496
zł249.00
Tax included
zł202.44 tax excl.
A compact 3-in-1 device that combines an oscilloscope, signal generator and digital multimeter, offering a wide range of measurement capabilities in one tool. With a 10MHz bandwidth, 48MSa/s sampling and 13 waveform generation function, it is perfect for analyzing and testing electronic systems. The color display, built-in 3000mAh battery and handy housing make it a practical solution both in the workshop and in the field. Fnirsi DST-210
Description

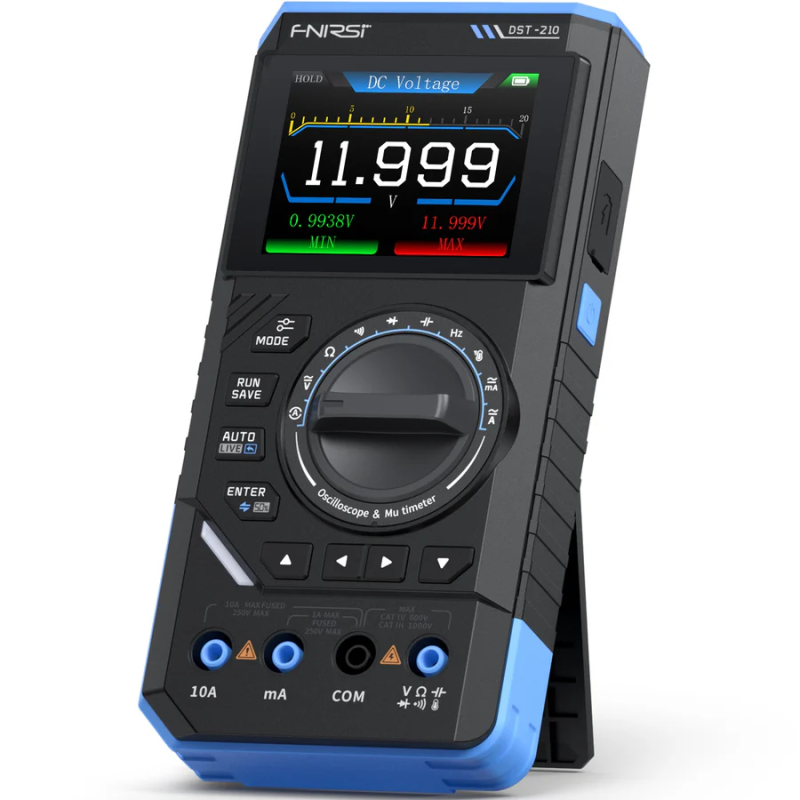

The FNIRSI DST-210 is a multifunctional 3-in-1 device combining an oscilloscope, signal generator, and digital multimeter. This compact tool is designed for professionals, electronics enthusiasts, service technicians, and home users. The DST-210 model offers a sampling rate of 48MSa/s and an analog bandwidth of 10MHz, enabling precise signal analysis across various applications.
Thanks to the signal generation function supporting 13 waveform types with frequencies up to 50 kHz, the device is ideal for testing electronic circuits and components. The built-in digital multimeter allows precise measurement of AC/DC voltage, current, resistance, capacitance, temperature, and frequency. Additionally, features like diode testing and continuity checks significantly simplify diagnostics. This versatile tool is indispensable both in service workshops and during new product development.
The device features a colorful 2.8-inch TFT screen with adjustable backlighting, ensuring clear and readable measurement displays under various lighting conditions. The built-in 3000mAh battery allows up to 15 hours of standby operation, enhancing portability and convenience. Safety functions such as overload protection safeguard both the device and the user. The HOLD function and automatic measurements simplify signal analysis and reduce work time. Adjustable trigger levels enable precise parameter tuning, improving comfort and testing efficiency.
Encased in a compact and lightweight housing, it is an ideal companion both in the workshop and in the field. The device supports two languages (Chinese and English) and works with various probes, including the P6100 oscilloscope probe and DMM test leads. It is a complete solution for diagnosing, testing, and analyzing electronic circuits.
Features
Oscilloscope:
- Sampling rate: DST-210: 48MSa/s
- Bandwidth: DST-210: 10MHz
- Input impedance: 1MΩ
- Test voltage range: up to ±400V (with 10:1 probe)
- Coupling modes: AC/DC
- Vertical sensitivity: 10mV/div ~ 10V/div
- Time base: DST-210: 50ns~20s
- Trigger modes: Auto / Normal / Single
- Trigger types: rising / falling edge
- HOLD function, automatic measurements (Max, Min, RMS, Frequency, etc.)
Multimeter:
- DC voltage: up to 1000V
- AC voltage: up to 750V
- DC/AC current: up to 9.999A
- Resistance: up to 19.999MΩ
- Capacitance: up to 99.99mF
- Frequency: up to 9.999MHz
- Temperature: from -55°C to 1300°C
- Continuity and diode test: YES
- Live wire detection (LIVE): YES
Signal Generator:
- 13 waveform types
- Frequency range: DST-210: 0-50kHz
- Amplitude: 0.1V - 3.0V
- Duty cycle adjustment for square and sawtooth waves: 0-100%
General
- Display: 2.8" color TFT with brightness adjustment
- Power supply: USB Type-C (5V/1A), 3000mAh battery
- Standby time: up to 15 hours
- Languages: Chinese, English
- Dimensions: 177.43 x 87.47 x 34.5 mm
- Weight: 300 g
Kit contains
- FNIRSI DST-210
- P6100 oscilloscope probe
- DMM test leads
- Crocodile clip probe
- USB charging cable
1198879
Data sheet
- Type of oscilloscope
- Portable
- Bandwidth
- 10 MHz
- Sampling rate
- 48 MS/s
- Memory depth
- Inny
- Number of channels
- 1
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
