ID: 1197330
5902186306721
zł1,149.84
Tax included

zł934.83 tax excl.

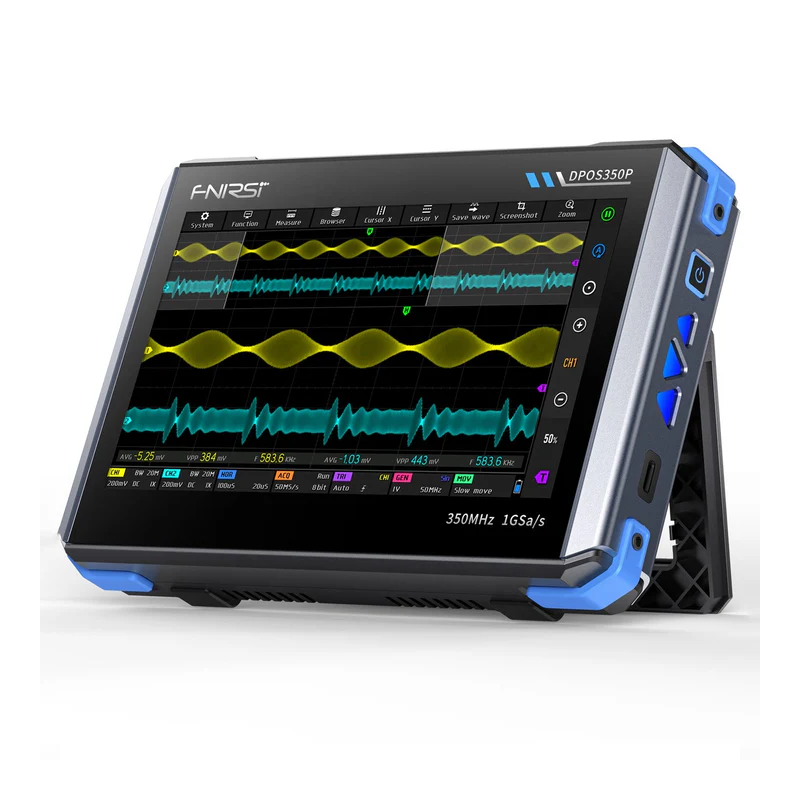

An advanced 4-in-1 tablet oscilloscope combining the functions of a digital oscilloscope, signal generator, spectrum analyzer, and frequency response analyzer. It offers a 350MHz bandwidth, 1GSPS sampling rate, a 7" IPS touchscreen, and the ability to store 500 waveforms and 90 screenshots, making it a comprehensive tool for engineers and service technicians. With multi-language support, a compact design, extensive measurement functions, and firmware updates, the DPOS350P delivers professional precision and portability in a single device. Fnirsi DPOS350P

24h
Available
Available quantity: 2
Kamami is the official distributor of Fnirsi measuring tools. All products of this brand in our offer are original and come directly from the manufacturer.

Description

FNIRSI DPOS350P is a versatile and advanced 4-in-1 tablet oscilloscope that integrates four powerful tools in one device: a digital oscilloscope, signal generator, spectrum analyzer, and frequency response analyzer. Designed for professional use in laboratories, service departments, production, and research environments, it offers a high-performance measurement solution in a compact format.


With a 350 MHz analog bandwidth and 1 GSPS sampling rate, it enables precise signal capture and analysis. The large 7-inch IPS touchscreen with a resolution of 1024×600 provides clear visibility and intuitive control, even in bright conditions. The vertical sensitivity range of 2mV–20V (1X probe) allows for analysis of both low and high voltage signals.

The integrated function generator can output 14 standard waveform types as well as user-defined signals up to 50 MHz (sine wave), making it ideal for simulation, circuit testing, and signal injection. The spectrum analyzer function covers a frequency range from 200 kHz to 350 MHz with 3D waterfall visualization and advanced measurement functions. The built-in frequency response analyzer (FRA) enables precise frequency characterization of electronic circuits—essential for analog system engineers and filter designers.

With over-voltage protection up to 400V, QC18W fast charging (fully charged in approx. 2 hours), and internal storage for up to 500 waveforms and 90 screenshots, this device is both safe and efficient. Data export is easy via USB, and firmware can be upgraded for future improvements. The multi-language interface, auto-calibration, and intuitive controls make the DPOS350P a professional-grade measurement tool for a wide range of applications.


Lightweight and compact, the DPOS350P is a fully portable and reliable solution. It’s ideal not only for lab measurements but also for field diagnostics and equipment servicing. Its all-in-one functionality replaces multiple devices, saving space and cost—making it a perfect choice for users seeking a precise and integrated measurement system.

Features

  • Oscilloscope:
    • Channels: 2
    • Analog bandwidth: 350 MHz
    • Sampling rate: 1 GSPS
    • Memory depth: 60 Kpts
    • Input impedance: 1 MΩ / 14 pF
    • Vertical sensitivity: 2mV–20V (1X), 16mV–160V (10X)
    • Time base: 5 ns–50 s (with ZOOM mode)
    • Voltage accuracy: ±2%
    • Trigger modes: Auto / Single / Normal
    • FFT mode
    • Display modes: brightness, grid, color temp, X-Y, digital phosphor
    • Over-voltage protection: up to 400 V
    • Cursor measurements: time, frequency, voltage, level
  • Signal Generator:
    • Waveforms: 14 standard + user-defined
    • Frequency: up to 50 MHz (sine), 10M/5M/3M for other waveforms
    • Amplitude: 0 to 5 Vpp
    • Offset: -2.5 V to +2.5 V
    • Resolution: 1 Hz (frequency), 1 mV (amplitude/offset)
    • Stored waveforms: 500
    • Duty cycle: 0.1%–99.9%
  • Frequency Response Analyzer (FRA):
    • Excitation frequency: 100 Hz to 50 MHz
    • Excitation amplitude: 0 to 5 Vpp
    • Excitation offset: -2.5 V to +2.5 V
    • Measurement points: 20–500
    • Modes: Single / Continuous
    • Cursor measurements: frequency / gain / phase
    • System calibration supported
  • Spectrum Analyzer:
    • Frequency range: 200 kHz to 350 MHz
    • Conversion method: FFT (4K–32K)
    • Level range: -60 dBmV to +260 dBmV
    • Cursor measurements: frequency / amplitude
    • Waterfall plot: 2D / 3D
    • System calibration
    • Peak detection and harmonic markers
  • General:
    • Display: 7" IPS, 1024×600 px
    • Battery: 3.7 V, 8000 mAh (approx. 3 hours of operation)
    • Charging: QC18W (12V/1.5A), USB Type-C, full charge in ~2h
    • User interface: touchscreen
    • Auto power-off function
    • Data export: USB port
    • Firmware update: .iso file support
    • Operating temperature: 0 to 40°C
    • Storage temperature: -20 to 60°C
    • Storage: 500 waveforms, 90 screenshots
    • Dimensions: 190 × 128 × 37 mm

Kit contains

  • FNIRSI DPOS350P oscilloscope
  • Fast charger QC18W (EU/US)
  • 2 x 350 MHz oscilloscope probes
  • Carrying bag
  • Alligator clip cable
  • USB cable
1197330

Data sheet

Type of oscilloscope
Portable
Bandwidth
350 MHz
Sampling rate
1 Gsps
Memory depth
6 Kpts
Number of channels
2

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
