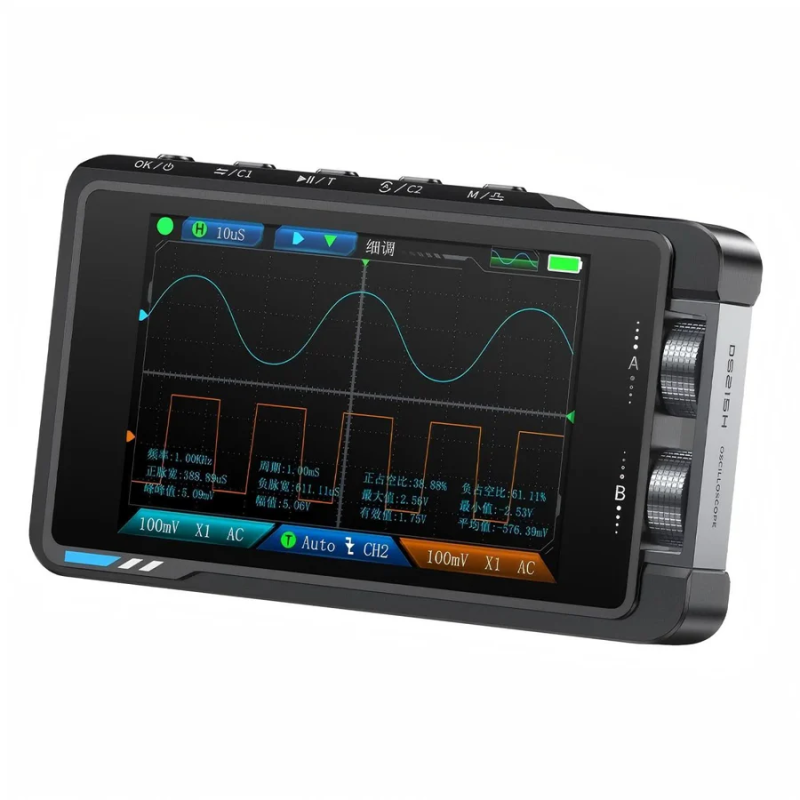

Fnirsi DS215H Standard - 2-channel 50MHz digital oscilloscope with signal generator
ID: 1198882
5902186305519
zł328.00
Tax included
zł266.67 tax excl.
Compact digital oscilloscope with built-in DDS signal generator, offering 50 MHz bandwidth and 250 MSa/s sampling. It has two measurement channels, 3.5" IPS display and the function of generating 13 types of waveforms up to 50 kHz. Thanks to the 1500 mAh battery, it will be useful in mobile work, service and education. Fnirsi DS215H Standard
Description
FNIRSI DS215H is an advanced 2-in-1 digital oscilloscope with a built-in DDS signal generator, designed for professionals seeking a precise and portable tool for measurement and diagnostics. The device offers a 50 MHz bandwidth and 250 MSa/s sampling rate, ensuring high accuracy and reliability even when analyzing complex signals.
The oscilloscope is equipped with two measurement channels and supports voltages up to ±400V, making it safe for use in high-voltage environments. The intuitive interface is displayed on a clear 3.5-inch IPS screen with a resolution of 480×320, allowing precise signal tracking and analysis. The signal generator function enables the generation of 13 different waveform types, from 0 to 50 kHz, with full control over parameters such as frequency, amplitude, and duty cycle. With waveform saving and viewing features, users can conveniently analyze results at any time.
The device is powered by a 1500 mAh battery, providing up to 4 hours of operation without recharging. Thanks to its lightweight and compact design, it's ideal as a portable tool for fieldwork, laboratories, or service applications. DS215H is a versatile and practical solution for use in maintenance, research, and education.
Features
- Oscilloscope:
- 2 measurement channels
- Bandwidth: 50 MHz
- Sampling rate: 250 MSa/s
- Vertical sensitivity: 10 mV/div – 10 V/div
- Vertical resolution: 8-bit
- Time base range: 20 ns/div – 20 s/div
- Input: AC/DC, impedance 1 MΩ
- Probe support: 1x / 10x
- Trigger modes: Auto / Normal / Single
- Trigger types: rising / falling edge
- Supported measurements: frequency, period, Vpp, RMS, average, max, min, duty cycle, pulse width, and more
- Input voltage range: ±400V
- Built-in DDS signal generator:
- Frequency: 0 to 50 kHz
- Amplitude: 0.1 to 3.0 V
- Duty cycle: 0 to 100%
- Multiple waveforms supported: sine, square, triangle, and others
- 3.5" IPS display (480×320 px) with brightness adjustment
- Waveform saving function (screenshot)
- Power supply: USB-C 5V/1A
- Battery: 1500 mAh (up to 4h operation)
- Dimensions: 66 × 110 × 19.5 mm
- Weight: 138 g
Kit contains
- FNIRSI DS215H oscilloscope
- Measurement probe
- USB-C charging cable
1198882
Data sheet
- Type of oscilloscope
- Portable
- Bandwidth
- 50 MHz
- Sampling rate
- 250 MS/s
- Memory depth
- 14 Mpts
- Number of channels
- 2
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
