ID: 1200645
5902186338937
zł365.56
Tax included

zł297.20 tax excl.

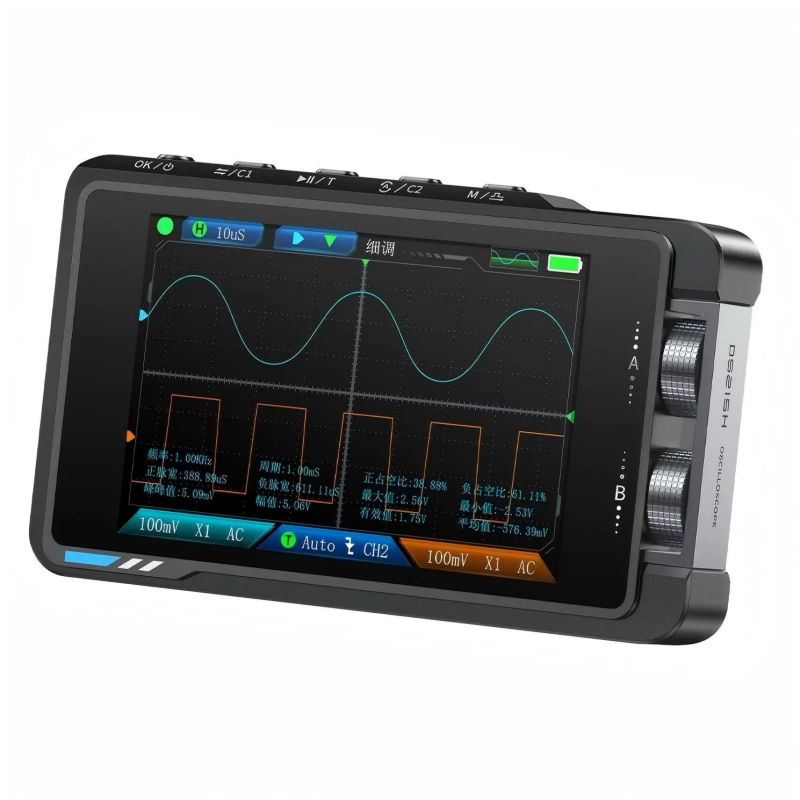

Compact digital oscilloscope with a built-in DDS signal generator, offering 50 MHz bandwidth and 250 MSa/s sampling rate. Features two measurement channels, a 3.5" IPS display, and the ability to generate 13 waveform types up to 50 kHz. The 1500 mAh battery makes it suitable for mobile use, servicing, and educational applications. Fnirsi DS215H High Profile

24h
Available
Available quantity: 5
Kamami is the official distributor of Fnirsi measuring tools. All products of this brand in our offer are original and come directly from the manufacturer.

Description

FNIRSI DS215H is an advanced 2-in-1 digital oscilloscope with a built-in DDS signal generator, designed for professionals seeking a precise and portable tool for measurement and diagnostics. The device offers a 50 MHz bandwidth and 250 MSa/s sampling rate, ensuring high accuracy and reliability even when analyzing complex signals.

p1198882-FNIRSI_DS215H_2-IN-1_Dual-Channel_Digital_Oscilloscope_DDS_Singal_Generator_05.jpg

The oscilloscope is equipped with two measurement channels and supports voltages up to ±400V, making it safe for use in high-voltage environments. The intuitive interface is displayed on a clear 3.5-inch IPS screen with a resolution of 480×320, allowing precise signal tracking and analysis. The signal generator function enables the generation of 13 different waveform types, from 0 to 50 kHz, with full control over parameters such as frequency, amplitude, and duty cycle. With waveform saving and viewing features, users can conveniently analyze results at any time.

The device is powered by a 1500 mAh battery, providing up to 4 hours of operation without recharging. Thanks to its lightweight and compact design, it's ideal as a portable tool for fieldwork, laboratories, or service applications. DS215H is a versatile and practical solution for use in maintenance, research, and education. The High Profile version additionally includes two oscilloscope probes, two BNC adapters, and a signal generator cable.

Features

  • Oscilloscope:
    • 2 measurement channels
    • Bandwidth: 50 MHz
    • Sampling rate: 250 MSa/s
    • Vertical sensitivity: 10 mV/div - 10 V/div
    • Vertical resolution: 8-bit
    • Time base range: 20 ns/div - 20 s/div
    • Input: AC/DC, 1 MΩ impedance
    • Waveform record length: 14 Mpts
    • Probe support: 1x / 10x
    • Trigger modes: Auto / Normal / Single
    • Trigger types: Rising edge / Falling edge
    • Supported measurements: Frequency, period, Vpp, RMS, average, maximum, minimum, duty cycle, pulse width and more
    • Input voltage range: ±400 V
  • Built-in DDS signal generator:
    • Frequency range: 0 to 50 kHz
    • Amplitude: 0.1 to 3.0 V
    • Duty cycle: 0 to 100%
    • Multiple waveform support: Sine, square, sawtooth and others
  • 3.5" IPS display (480 × 320 px) with adjustable brightness
  • Waveform screenshot storage
  • Power supply: USB-C 5 V / 1 A
  • Battery: 1500 mAh (up to 4 h operation)
  • Dimensions: 66 x 110 x 19.5 mm
  • Weight: 138 g

Kit includes

  • FNIRSI DS215H oscilloscope
  • 2 x P6100 1x/10x oscilloscope probe
  • 2 x BNC adapter
  • Signal generator cable
  • USB-C charging cable
1200645

Data sheet

Type of oscilloscope
Portable
Bandwidth
50 MHz
Sampling rate
250 MS/s
Memory depth
14 Mpts
Number of channels
2
