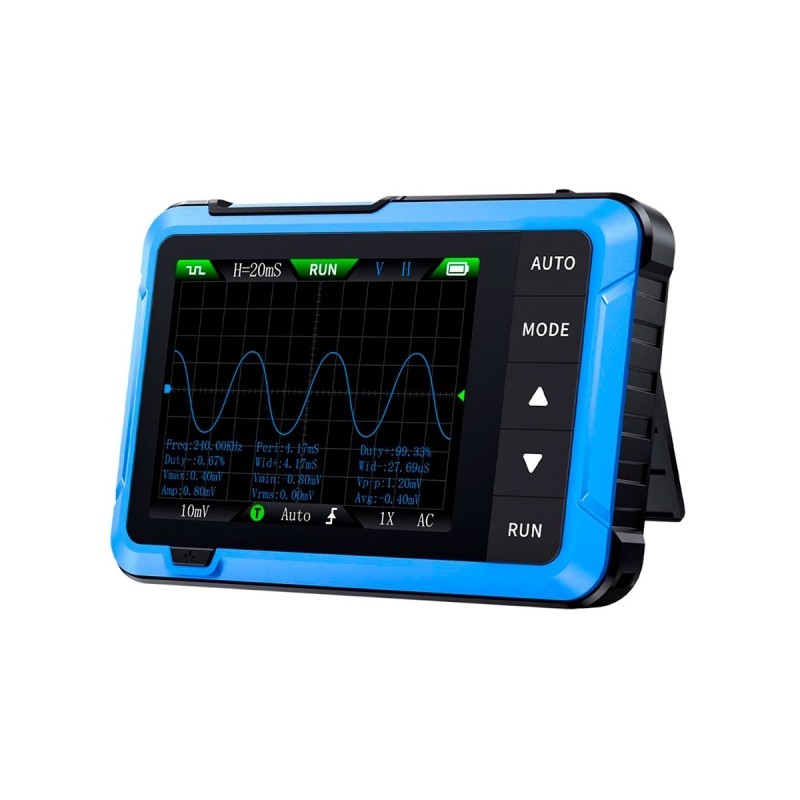

Fnirsi DSO510 - portable 10MHz oscilloscope with signal generator
ID: 1198884
5902186305533
zł176.90
Tax included
zł143.82 tax excl.
Compact oscilloscope with 2.8” HD screen, 10 MHz bandwidth and 48 MSa/s sampling, ideal for diagnostics and education. It offers AUTO mode, various trigger modes and a signal generator function up to 50 kHz. Built-in 1000 mAh battery provides up to 4 hours of mobile operation. Fnirsi DSO510
Description
DSO510 is an advanced, multifunction oscilloscope designed for professionals and electronics enthusiasts who require high precision and broad functionality in a compact format. It is perfect for advanced service work, educational use, and R&D projects. The device offers a 10 MHz bandwidth and 48 MSa/s sampling rate, allowing for analysis of both simple and complex analog and digital signals.
The oscilloscope features a clear 2.8” LCD display that shows waveforms in high resolution, and with the AUTO function, signals can be displayed instantly without manual parameter configuration. It supports various trigger modes (Auto, Normal, Single) and coupling modes (AC/DC), as well as 12 measurement modes, making it a highly versatile diagnostic tool. The DSO510 also functions as a multi-range signal generator, offering a wide selection of waveforms such as sine, square, sawtooth, and exponential signals, with frequencies up to 50 kHz and adjustable amplitude. Additionally, a built-in 1 kHz calibration signal helps with equipment testing and tuning.
The built-in lithium-ion battery provides up to 4 hours of operation without external power, while the compact casing and intuitive interface make the device mobile and easy to use. A notable feature is the ability to save waveforms as images, aiding in measurement documentation and data analysis. The DSO510 is a complete solution for demanding users, combining oscilloscope and signal generator functions in a single compact unit.
Features
- Oscilloscope:
- Bandwidth: 10 MHz
- Sampling rate: 48 MSa/s
- 1 measurement channel
- Vertical sensitivity: 10 mV/Div – 20 V/Div (1-2-5 steps)
- Time base range: 50 ns/Div – 20 s/Div (1-2-5 steps)
- Voltage range: X1: ±40V (Vpp: 80V), X10: ±400V (Vpp: 800V)
- Trigger modes: Auto / Normal / Single
- Coupling modes: AC / DC
- 12 measurement modes
- Built-in signal generator:
- Frequency: 0 to 50 kHz
- Amplitude: 0.1 to 3 V
- Waveforms: sine, square, sawtooth, half-sine, full-wave, step, reverse step, exponential rise, exponential decay, DC signal, multi-tone, sink pulse, Lorentz wave
- 1 kHz calibration signal
- Waveform image saving function
- Display: 2.8” LCD, 320×240 pixels
- Power supply: USB 5V/1A
- Battery: 1000 mAh lithium-ion (up to 4h runtime)
- Dimensions: 99 x 68.3 x 19.5 mm
- Weight: 104 g
Kit contains
- DSO510 oscilloscope
- P6100 high-voltage probe
- Adapter
- Probe with alligator clips
- USB charging cable
- Lanyard
1198884
Data sheet
- Type of oscilloscope
- Portable
- Bandwidth
- 10 MHz
- Sampling rate
- 48 MS/s
- Memory depth
- Inny
- Number of channels
- 1
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
