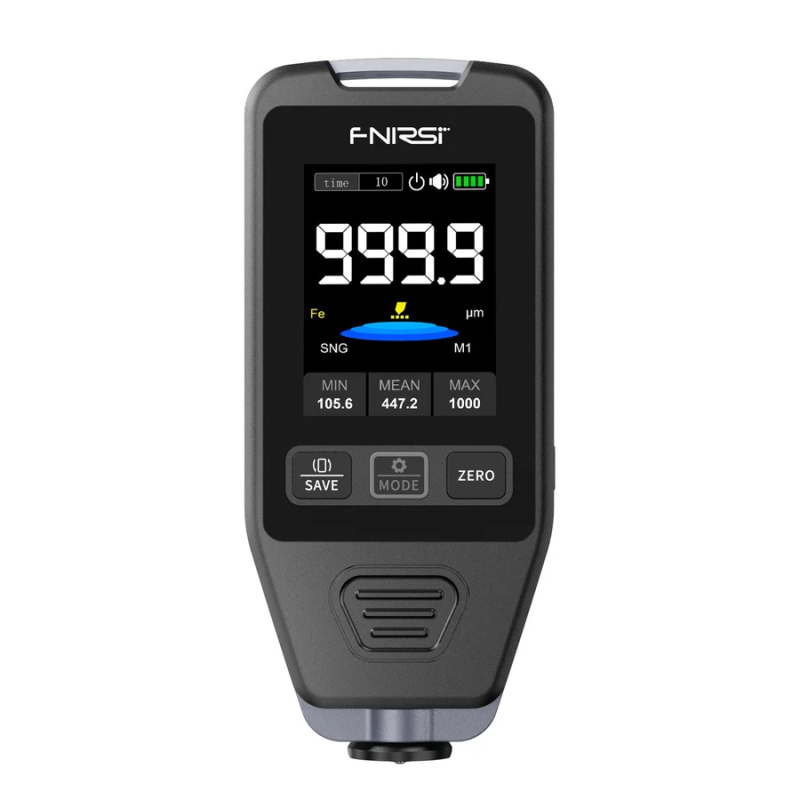

Fnirsi CTG-20 - paint thickness gauge
ID: 1198875
5902186305458
zł125.00
Tax included
zł101.63 tax excl.
A precise paint thickness gauge that enables quick and non-invasive measurement of layers on steel and aluminum substrates. Thanks to electromagnetic induction and eddy current technology, it automatically recognizes the type of metal and ensures high measurement accuracy. The compact design, rotating screen and 600mAh battery make it an ideal tool for use in the automotive and industrial sectors. Fnirsi CTG-20
Description
The FNIRSI CTG-20 is a precision coating thickness gauge designed for quick and non-destructive measurement of coating thickness on metal surfaces. The device allows measurement of non-magnetic layers (such as paint, lacquer) on both magnetic substrates (steel, iron) and non-magnetic ones (e.g., aluminum). Thanks to its built-in measurement probe and the use of electromagnetic induction and eddy current technology, the CTG-20 provides accurate and fast measurements.
The gauge automatically detects the substrate type and measures the coating thickness with high precision. It supports zero and multi-point calibration, allowing adaptation to various measuring conditions. Its compact size and lightweight design make it convenient for daily use, even in hard-to-reach areas. Equipped with a rotatable screen, putty test support, and an auto power-off function, the CTG-20 is an excellent tool for the automotive industry, chemical processing, manufacturing, and other sectors where protective coating evaluation is essential. The built-in 600mAh lithium battery supports USB charging and ensures long-lasting performance in the field.
Features
- Measurement range: 0 to 1400 μm
- Measurement accuracy: ±3% + 2 μm
- Resolution: 0.1 μm
- Calibration: zero and multi-point
- Units: μm or mil
- Minimum convex radius: 5 mm
- Minimum concave radius: 25 mm
- Minimum measurement area: Ø 20 mm
- Battery: 600mAh lithium battery
- Measurement memory
- Putty test
- Rotatable display
- Auto power-off: yes
- Operating environment: no strong magnetic fields
- Operating temperature: -10℃ ~ +50℃
- Operating humidity: 20% – 90% RH
- Dimensions: 115 × 48 × 18 mm
- Weight: 83 g
Kit contains
- Fnirsi CTG-20
- USB charging cable
1198875
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
