A compact AI camera with 48 TOPS of processing power, powered by an 8-core ARM processor running Luxonis OS. Equipped with a 48MP sensor with a 120° wide-angle lens, it enables detailed image processing and supports features like object tracking and distortion correction. Its robust aluminum and Gorilla Glass housing meets the IP67 standard, ensuring resistance to harsh conditions. With PoE and USB-C ports, a built-in IMU, and a microphone, the camera is ideal for robotics, surveillance, and edge computing systems. Luxonis OAK-4-S-W

24h
Available
Available quantity: 1

Description

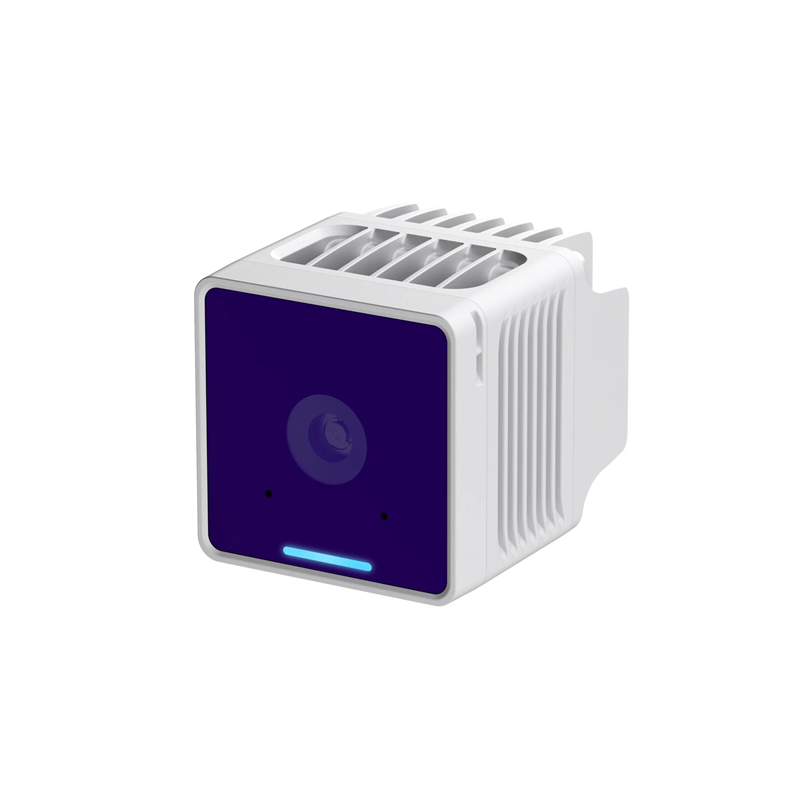

OAK 4 S Wide is a compact and highly efficient camera that combines strong computing power with robust industrial-grade design. The device operates as a standalone module with the Luxonis OS based on Linux kernel 5.15, offering advanced image processing and artificial intelligence capabilities. Equipped with an 8-core ARM processor, 8 GB RAM, and 128 GB internal storage, it ensures smooth handling of demanding computer vision algorithms. With a computing performance of 48 TOPS, the camera is ideal for applications in robotics, process automation, and monitoring systems.


The integrated 48 MP wide-angle camera (120° DFOV) provides highly detailed high-resolution images. OAK 4 S Wide supports features such as 2D object tracking, edge detection, distortion correction, and real-time image processing. Built with industrial-grade aluminum and protected with Gorilla Glass, combined with an IP67-rated housing, it ensures resistance to harsh environmental conditions. The camera includes a PoE (Power-over-Ethernet) connector for power and data transfer at speeds up to 2.5 Gb/s, as well as a USB-C (USB 3.2 Gen2) port for alternative communication.

The housing features multiple mounting points: a standard 1/4" tripod mount and M4 points, enabling easy integration into industrial systems. OAK 4 S Wide is also equipped with a 9-axis IMU and a microphone, expanding its capabilities in applications requiring precise navigation and sound analysis. Thanks to its versatility and high performance, the camera is an excellent tool for engineers, developers, and companies working in AI, machine vision, and edge computing.

Features

  • Processor: 8-core ARM (QC Snapdragon 8-series)
  • Memory: 8 GB RAM, 128 GB internal storage
  • System: Luxonis OS (Linux kernel 5.15)
  • AI performance: 48 TOPS (INT8), 12 TOPS (FP16)
  • Camera:
    • Sensor: IMX586 (PY262)
    • DFOV (field of view): 120.0°
    • Resolution: 48 MP (8000 × 6000)
    • Focus: FF (Fixed Focus)
    • Max frame rate: 30 FPS
    • Spectral range: visible light (built-in IR filter)
    • Shutter type: Rolling
    • Sensor size: 1/2"
    • Aperture (F-number): 1.79 ± 5%
    • Effective focal length: 4.74 mm
    • Pixel size: 0.8 µm
  • Functions: 2D object tracking, edge detection, undistortion, resize, crop
  • Connectors: PoE (802.3at Class 3, 2.5 Gbps), USB-C (USB 3.2 Gen2, 10 Gbps), M8 IO
  • Additional components: 9-axis IMU, microphone, status LED
  • Housing: industrial aluminum + Gorilla Glass, waterproof IP67
  • Power consumption: 1.5 to 25 W
  • Operating temperature: -20°C to 50°C
  • Vibration resistance: EN 60068-2-6:2008, ISO 15998:2008
  • Mounting: 1/4" tripod mount, M4 mounting points (40 mm)
  • Dimensions: 58 × 58 × 71 mm
  • Weight: 325 g

Kit contains

  • OAK 4 S Wide camera
  • M12 to RJ45 cable, 2 m
1200101

Data sheet

Resolution
48 MPx
Interface
Ethernet
Sensor
IMX586
IR filter
Yes
Lens assembly
none
