Industrial depth camera with ToF sensor, designed for precise detection up to 3 meters, ideal for applications such as pick-and-place, quality control or industrial automation. With IP65/IP67 sealing, active IR, PoE connectivity and 4 TOPS computing power (including 1.4 TOPS on AI), it offers reliable operation even in harsh environments. It supports CV and AI algorithms, remote control, standalone operation and multiple network protocols, making it a versatile tool for industry and robotics. Luxonis OAK-D SR PoE

24h
Available
Available quantity: 2

Description

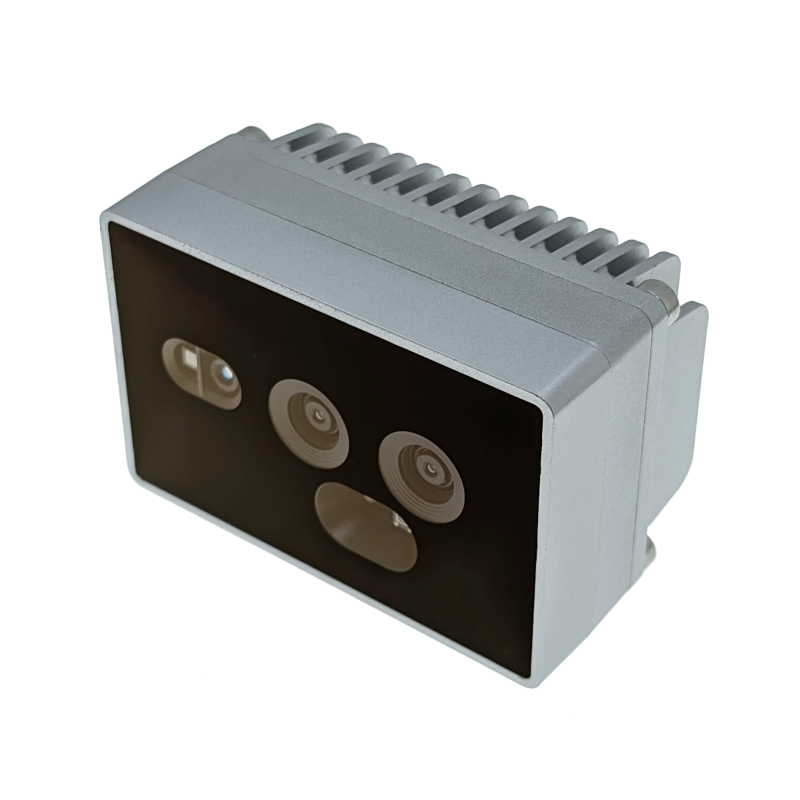

The OAK-D Short Range PoE with ToF sensor (OAK-D SR PoE) is an industrial-grade camera designed for precise depth detection at short and medium ranges (up to 3 meters). It is ideal for applications such as bin picking, pick-and-place machines, quality control, industrial automation, and robotic arms. The camera housing is rated IP65 or IP67 (depending on the production batch), allowing it to operate in harsh industrial environments.

The camera features a Time-of-Flight (ToF) sensor with sub-1% accuracy indoors and sub-2% outdoors, with a working range of 20 cm to 5 m. The OAK-D SR PoE uses the compact OAK-SoM-Pro module and RVC2 architecture, offering 4 TOPS of processing power, including 1.4 TOPS dedicated to AI tasks. It combines ToF technology with active IR stereo vision to ensure accurate depth measurements under various lighting conditions. It supports advanced computer vision (CV) and artificial intelligence (AI) algorithms, including 2D/3D object tracking, image processing (scaling, cropping, distortion correction), and video encoding in H.264, H.265, and MJPEG formats (up to 4K/30FPS).

The integrated active IR projector and LED illuminator enable operation in low or no-light environments. The camera includes industrial-grade M12 (PoE) and M8 (GPIO, USB2, control) connectors, a 1/4" tripod mount, 75 mm VESA mount, and a status LED. It is powered and connected via Power-over-Ethernet (PoE), enabling standalone operation thanks to onboard flash memory. The camera supports multiple network protocols, including TCP, UDP, HTTP, and MQTT, making it ideal for IoT and industrial robotics. Its compact and lightweight design simplifies integration, while the energy-efficient architecture helps reduce power consumption.

Camera Specifications

  • Stereo Pair:
    • Sensor: OV9782
    • Resolution: 1 MP (1280×800)
    • Lens: 1/4", f/2.0 ±5%, focal length 2.35 mm
    • Field of View: DFOV 89.5°, HFOV 80°, VFOV 55°
    • Focus Range: 20 cm – ∞
    • Frame Rate: up to 120 FPS
    • Baseline: 20 mm
    • Depth Range (stereo): 30 – 100 cm (min. 20 cm), max ~3 m
  • ToF Sensor:
    • Technology: 33D ToF
    • Resolution: VGA (640×480)
    • Lens: 1/3.2", f/1.45 ±5%
    • Field of View: DFOV 82.3°, HFOV 70°, VFOV 54.7°
    • Measurement Range: 20 cm – 5 m
    • Accuracy: <1% indoors, <2% outdoors
    • Frame Rate: up to 45 FPS
  • Power and Connectivity:
    • Power Supply: PoE (802.3af, Class 3), injector or switch required
    • Data Rate: 1 Gbps (1000BASE-T)
    • Power Consumption: 2.5 – 7.5 W depending on load
    • Connectors: M12 (PoE + data), M8 (GPIO, USB2, FSIN, STROBE, power)
    • Status LED: green/yellow indicating pipeline activity
  • Physical and Environmental Specs:
    • Housing: aluminum, front panel with Gorilla Glass
    • Ingress Protection: IP65 (Aug 2024), IP67 (newer batches)
    • Operating Temperature: -20°C to +50°C
    • Mounting: 1/4" thread, 75 mm VESA mount
    • Dimensions: 80 × 52 × 46 mm
    • Weight: 297 g

Kit Includes

  • OAK-D SR PoE Camera
  • 2 m M12 to RJ45 cable
1193548

Data sheet

Resolution
1 MPx
Interface
Ethernet
Sensor
OV9782
IR filter
Yes
Lens assembly
none
