The modIP5328P module enables the construction of power banks with bidirectional fast charging support in QC3.0, USB PD, FCP, AFC, and other standards, with power up to 18 W. It supports power input and charging via USB-A, USB-C, and Micro USB, providing high conversion efficiency and an extensive protection system. modIP5328P

4 weeks
Awaiting delivery

Description

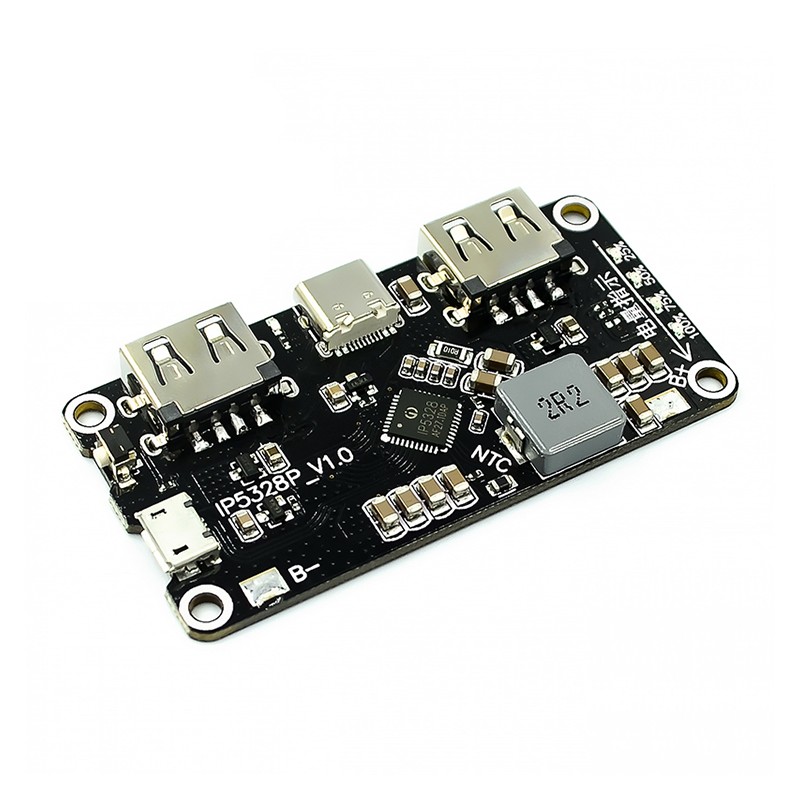

Module based on the IP5328P chip, designed for building power banks with 3.7 V lithium-ion batteries (e.g., 18650 cells), providing bidirectional fast charging up to 18 W. Supports multiple fast charging protocols, including QC3.0, FCP, AFC, MTK, SFCP, USB PD, as well as Apple and Samsung BC1.2 standards. Equipped with two USB-A ports, a USB-C port, and a Micro USB socket, it allows simultaneous powering and charging of multiple devices. The USB-C port supports bidirectional mode (charging and power output). The system features a fast charging mode indicator, and overcurrent, short-circuit, overvoltage, and overtemperature protection.

Properties

  • Battery voltage: 3.7 V Li-Ion (single cell or parallel pack, external BMS required)
  • Supported fast charging standards: QC3.0, FCP, AFC, MTK, SFCP, USB PD, BC1.2 (Apple, Samsung)
  • Charging/discharging power: up to 18 W
  • Input ports: USB-C (bidirectional), Micro USB (charging)
  • Output ports: 2× USB-A, USB-C
  • Output voltages: 5 V, 7 V, 9 V, 12 V
  • Output current:
    • 5 V – up to 3.1 A
    • 7 V – up to 2.4 A
    • 9 V – up to 2.0 A
    • 12 V – up to 1.5 A
  • Conversion efficiency: up to 95% (charging), up to 94% (boost)
  • Maximum battery charging current: 5 A
  • Protection features: OCP, SCP, OVP, OTP
  • Indicators: power LED, fast charging LED
  • Dimensions: 65 × 32.5 mm, mounting holes Ø3 mm
