- New

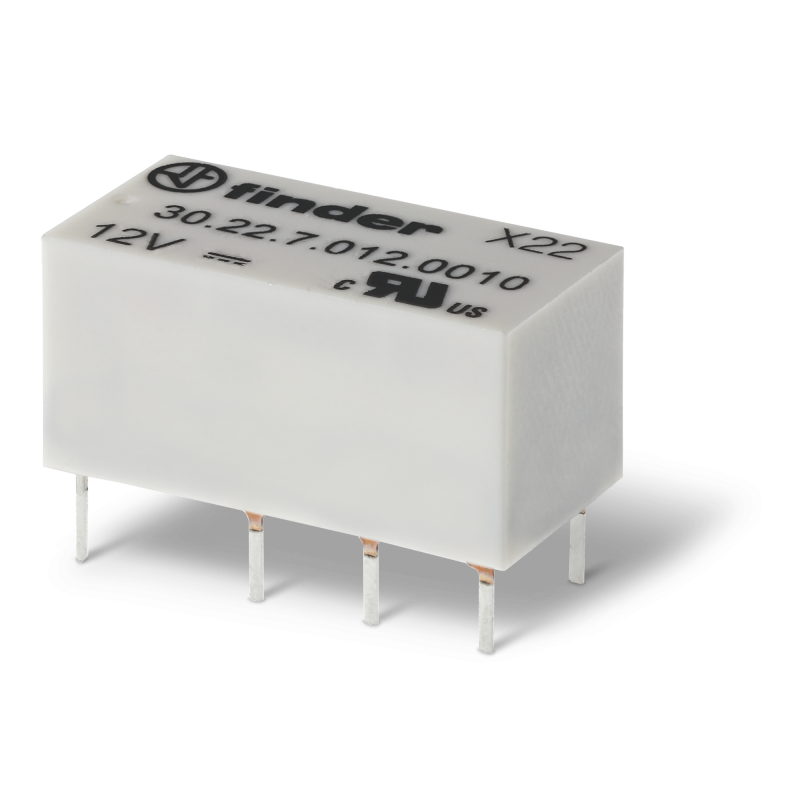

Subminiature DIL relay 2A 12VDC Finder 30.22.7.012.0020
ID: 1201343
zł15.97
Tax included
zł12.98 tax excl.
Subminiature relay Finder 30.22.7.012.0020 with two gold-plated 2 A changeover contacts and a 12 V DC coil, designed for reliable switching of low-voltage signals in compact electronic circuits. The sealed housing and precise operating parameters enable use in automation applications, telecommunications, and control systems.
Description
The subminiature relay Finder 30.22.7.012.0020 is designed for mounting on printed circuit boards and is equipped with two 2 A changeover contacts. Thanks to gold-plated AgNi + Au contacts, it ensures reliable switching of low-voltage signals in high-sensitivity applications. The coil with a 12 V DC supply voltage operates in a range from 8.4 to 18 V, with a rated power of 0.2 W, resistance of 720 Ω, and current consumption of 16 mA. The holding voltage is 4.2 V, and the drop-out voltage is 0.6 V. The relay features coil-to-contact insulation of 1.5 kV and a sealed RT III version that protects against contaminants. The compact design and operating temperature range from -40°C to +85°C enable integration into miniaturized electronic circuits.
Properties
- Coil powered by DC 12 V
- DC supply voltage range: 8.4–18 V
- Rated coil power: 0.2 W
- Coil resistance: 720 Ω
- Current consumption: 16 mA
- Holding voltage: 4.2 V
- Drop-out voltage: 0.6 V
- Contact configuration: 2 changeover contacts
- Rated contact current: 2 A
- Rated contact voltage: 125 V AC
- Coil/contact insulation: 1.5 kV
- Electrical durability: 100,000 cycles
- Dimensions: 10.1 × 11.4 × 20.3 mm
- Operating temperature: -40°C to +85°C
- PCB mounting
- Gold-plated AgNi + Au contacts
- Sealed version (RT III)
1201343
Data sheet
- Output current
- 2A
- Number of channels
- 2
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 12 VDC
Manufacturer FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland finder.pl@findernet.com
Responsible person FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland formularz kontaktowy na stronie osoby odpowiedzialnej
