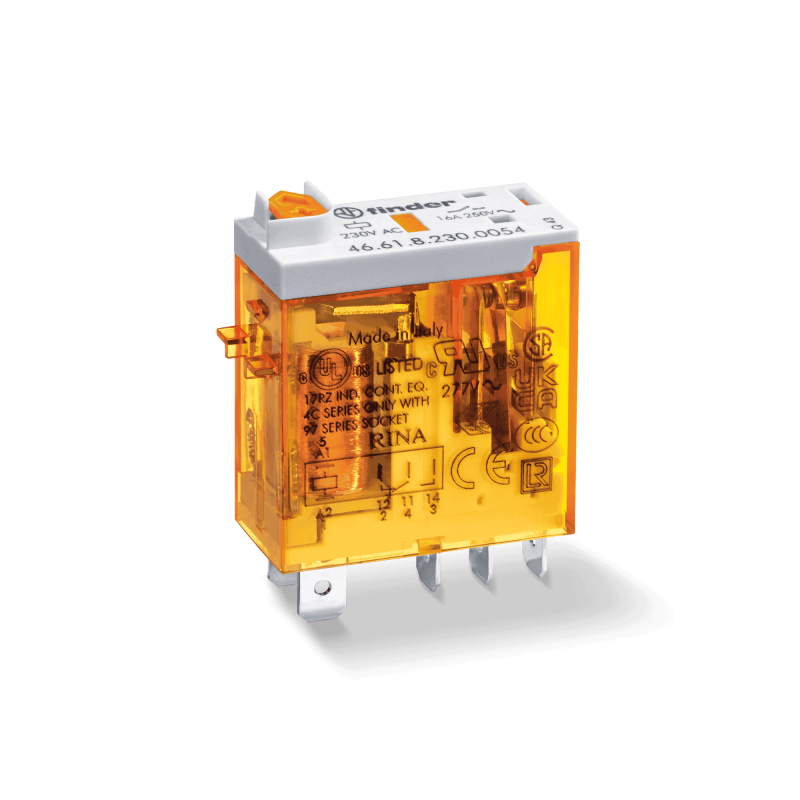

Miniature industrial relay 16A 230VAC Finder 46.61.8.230.0040
ID: 1198137
zł34.70
Tax included
zł28.21 tax excl.
Miniature relay Finder 46.61.8.230.0040 with one 16 A changeover contact and a 230 V AC coil designed for industrial applications. The compact design, high durability, and optional diagnostic functions support reliable operation in automation and control installations.
Description
The miniature industrial relay Finder 46.61.8.230.0040 is equipped with one 16 A changeover contact, designed for mounting in relay bases or with Faston-type connectors. The coil powered by AC 230 V operates in the range of 184 to 253 V, with a power consumption of 1.2 VA and a current draw of 5 mA. The device features coil-to-contact insulation of 6 kV and an electrical durability of 100,000 cycles. Optional versions are available with a test button with locking function, mechanical operation indicator, and LED indicator. The relay is cadmium-free, making it environmentally safe. It is designed to operate in ambient temperatures from -40°C to +70°C.
Properties
- Coil powered by AC 230 V
- AC supply voltage range: 184–253 V
- Contact configuration: 1 changeover contact
- Rated contact current: 16 A
- Rated contact voltage: 250 V AC
- Rated coil power: 1.2 VA
- Coil resistance: 28,000 Ω
- Coil current consumption: 5 mA
- Holding voltage: 184 V
- Drop-out voltage: 46 V
- Coil/contact insulation: 6 kV
- Electrical durability: 100,000 cycles
- Operating temperature: -40°C to +70°C
- Dimensions: 12.4 × 32.8 × 29 mm
- Connections for socket or Faston
- Cadmium-free contacts
- Optional features: test button with lock, mechanical indicator, LED indicator
1198137
Data sheet
- Output current
- 16 A
- Number of channels
- 1
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 230 VAC
