- New

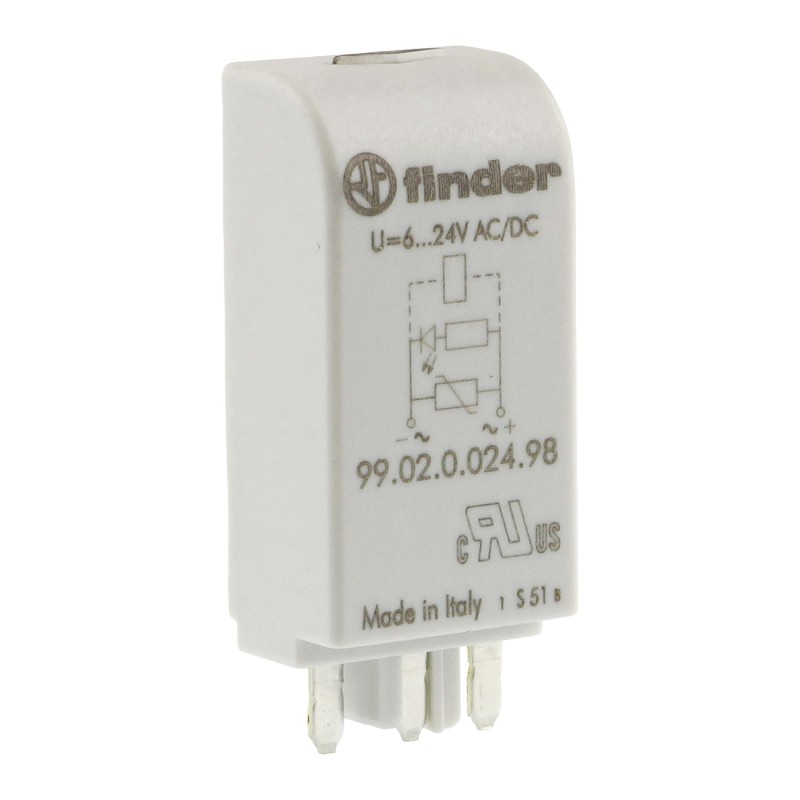

Finder 99.02.0.024.98 - signaling and protection module 24V AC/DC
ID: 1203859
zł13.83
Tax included
zł11.24 tax excl.
Signaling and surge protection module for Finder relays series 90, 92, 94, 95, 96, 97 with green LED and varistor, operating voltage 6 - 24 V AC/DC, socket mount, for suppression of voltage spikes and coil status indication. Finder 99.02.0.024.98
Description
Signaling and surge protection module designed for use with Finder relays mounted in sockets of series 90, 92, 94, 95, 96 and 97. The module is installed directly in the relay socket and enables simultaneous suppression of voltage spikes generated during coil switching and visual indication of coil power via an LED.
The integrated varistor limits back EMF voltage spikes, protecting control circuits from damage. The LED indicates the operating state of the coil, supporting system diagnostics. The design supports both AC and DC operation, allowing use in automation systems, industrial installations and control circuits. The module also reduces the impact of unwanted EMC effects and can limit leakage currents in the coil circuit.
Features
- Product for Finder relays series 90, 92, 94, 95, 96, 97
- Accessory type: signaling and surge protection module
- Components: green LED, varistor
- Rated voltage: 24 V
- Operating voltage range: 6 - 24 V AC/DC
- Supply: AC/DC
- Resistance: 19100 Ω AC, 17300 Ω DC
- Compliance: ATEX Ex ec
- Mounting: socket
- Dimensions: 15.5 x 31 x 10.5 mm
1203859
Data sheet
- Output current
- Other
- Number of channels
- 1
- Executive element
- Security module
- Coil voltage
- 6 - 24 V
Manufacturer FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland finder.pl@findernet.com
Responsible person FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland formularz kontaktowy na stronie osoby odpowiedzialnej
