Finder 62.23.9.012.4300 - power relay 12V 16A 3xCO PCB
ID: 1204977
8012823314938
zł54.11
Tax included
zł43.99 tax excl.

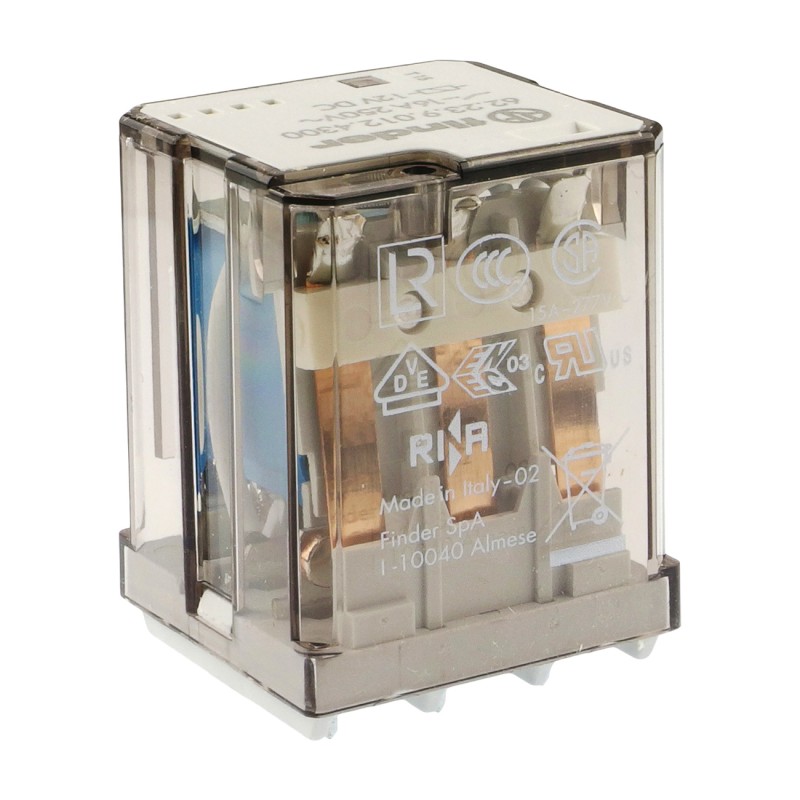

Finder power relay with 12 V DC coil, three changeover contacts rated 16 A and THT mounting for PCB. Finder 622390124300
Description
Power relay designed for mounting on printed circuit boards, equipped with three changeover contacts with an increased contact gap ≥ 3 mm. The design enables switching currents up to 16 A and provides insulation between coil and contacts compliant with requirements for SELV applications.
The 12 V DC coil operates within a range of 9.6 V to 13.2 V, ensuring stable operation in low-voltage systems. AgSnO2 contact material and reinforced insulation up to 6 kV allow use in automation, control systems and industrial devices requiring reliable load switching.
Features
- Series: Finder 62
- Contact configuration: 3 changeover contacts
- Contact material: AgSnO2
- Rated contact current: 16 A
- Rated contact voltage: 250 V AC
- Coil voltage: 12 V DC
- Coil voltage range: 9.6 - 13.2 V
- Coil power: 1.3 W
- Coil resistance: 110 Ω
- Current consumption: 109 mA
- Holding voltage: 7.2 V
- Drop-out voltage: 1.2 V
- Coil-contact insulation: 6 kV
- Mounting: THT PCB
- Electrical life: 100000 cycles
- Operating temperature: -40°C ~ 50°C
- Dimensions: 38.2 x 49.1 x 35.8 mm
1204977
Data sheet
- Output current
- 16 A
- Number of channels
- 3
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 12 VDC
