- New
Industrial Relay 4P 7A 48V AC, test button - Finder 55.34.8.048.0040
ID: 1203901
zł39.26
Tax included
zł31.92 tax excl.

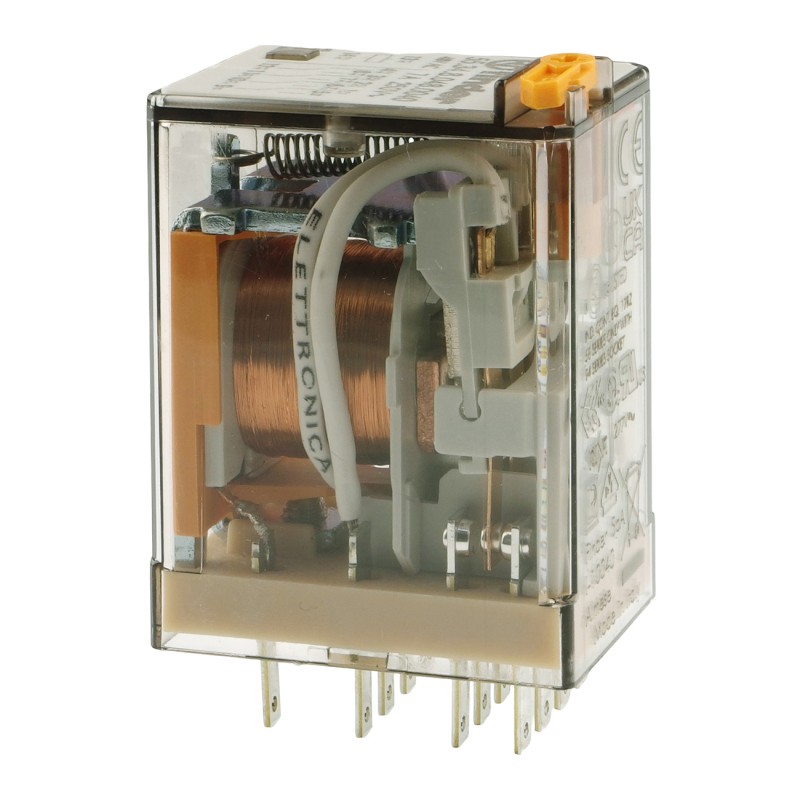

Miniature industrial 4PDT relay rated at 7 A with a 48 V AC coil, designed for use with Series 94 sockets. Equipped with a locking test button and mechanical status indicator. Finder 55.34.8.048.0040
Description
Finder 55.34.8.048.0040 is a miniature industrial relay intended for automation systems, control panels, and industrial installations requiring switching of multiple signal or power circuits. The relay is designed for plug-in mounting with Series 94 sockets, enabling quick installation and convenient replacement in control cabinets.
The unit features four changeover contacts (4PDT) rated at 7 A. AgNi contact material ensures good electrical durability and resistance to wear. The rated contact voltage is 250 V AC.
The 48 V AC coil operates within a voltage range of 38.4 - 52.8 V AC. The rated coil power is 1.5 VA, coil resistance is 770 Ω, and current consumption is approximately 25 mA. The relay is equipped with a locking test button and a mechanical operation indicator. Insulation between coil and contacts is 4 kV. The device is suitable for operation in ambient temperatures from -40°C to +85°C.
Features
- Manufacturer: Finder
- Part number: 55.34.8.048.0040
- Manufacturer series: 55.34
- Relay type: industrial
- Mounting: for Series 94 sockets
- Switching element: electromagnetic relay
- Number of poles: 4
- Contact configuration: 4PDT (4 changeover contacts)
- Rated contact current: 7 A
- Rated contact voltage: 250 V AC
- Contact material: AgNi
- Nominal coil voltage: 48 V AC
- AC supply voltage range: 38.4 - 52.8 V AC
- Rated coil power: 1.5 VA
- Coil resistance: 770 Ω
- Coil current: 25 mA
- Coil-to-contact insulation: 4 kV
- Electrical endurance: 150,000 cycles
- Operating temperature: -40°C to +85°C
- Dimensions: 20.7 x 37.2 x 27.7 mm
- Additional features: locking test button, mechanical status indicator
1203901
Data sheet
- Output current
- 7 A
- Number of channels
- 4
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 48 VAC
Manufacturer FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland finder.pl@findernet.com
Responsible person FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland formularz kontaktowy na stronie osoby odpowiedzialnej
