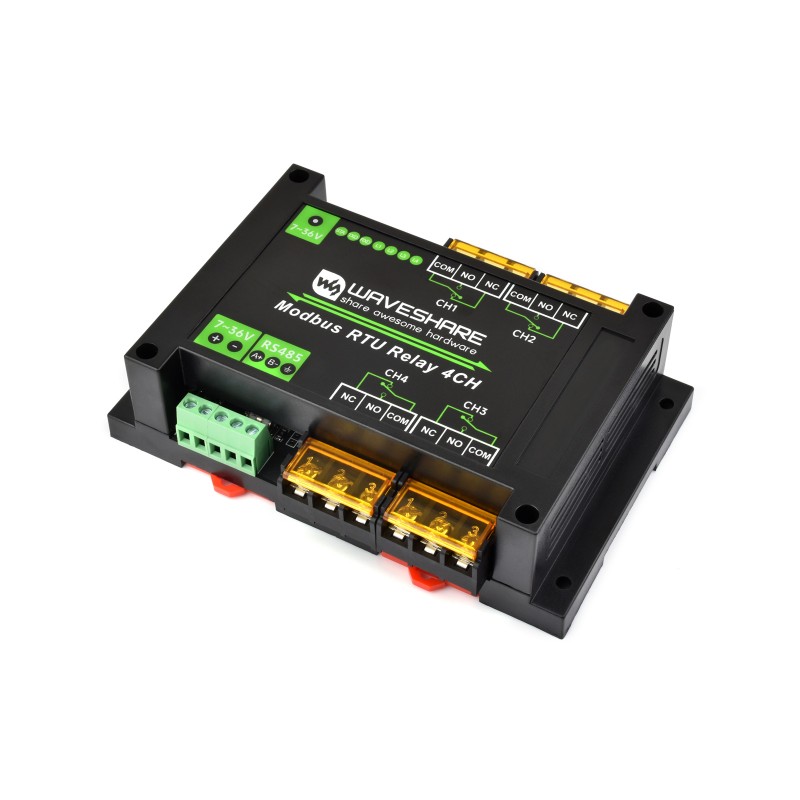

Modbus RTU relay module 4-channel with RS485 - Waveshare 30461
ID: 1197697
zł137.64
Tax included
zł111.90 tax excl.
Modbus RTU Relay 4CH is a reliable industrial-grade relay module supporting RS485 communication with the Modbus RTU protocol. With the ability to handle high currents and a wide power supply voltage range, it is well-suited for lighting control systems, industrial automation, HVAC installations, and remote monitoring applications. Built-in protection circuits and DIN rail mounting enhance safety and facilitate integration into control cabinets.
Description
Industrial relay module with four channels, designed for RS485 communication using the Modbus RTU protocol. It supports high-current relay control (up to 30 A), and thanks to numerous built-in protection circuits – such as galvanic isolation, resettable fuse, TVS diode, and reverse polarity protection – it ensures high reliability, noise immunity, and operational safety in industrial environments. A configurable device address and support for various baud rates allow integration with a wide range of control systems.
Features
- Communication: RS485, Modbus RTU protocol
- RS485 address: 1–255
- Baud rate: 4800 – 256000 bps (default 9600, N, 8, 1)
- Power supply: 7–36 V DC, built-in voltage regulator
- Number of relays: 4 channels (1NO 1NC)
- Contact rating: ≤30 A at 250 V AC or 28 V DC
- Galvanic isolation: power and signal (magnetic, optical)
- Protection: PTC fuse, TVS diode, reverse polarity protection
- Relay driver: with flyback diode and dedicated control chip
- Enclosure: ABS plastic, DIN rail mounting
- STA – MCU operation LED
- TXD – data transmission LED
- RXD – data reception LED
