RS232 RS485 CAN Board is a complete solution for industrial applications with Raspberry Pi, enabling simultaneous operation of multiple communication interfaces with full isolation and protection. Designed for mounting in control cabinets and integration with existing HAT and PCIe systems, it is ideal for automation, monitoring, and control system projects based on Raspberry Pi.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

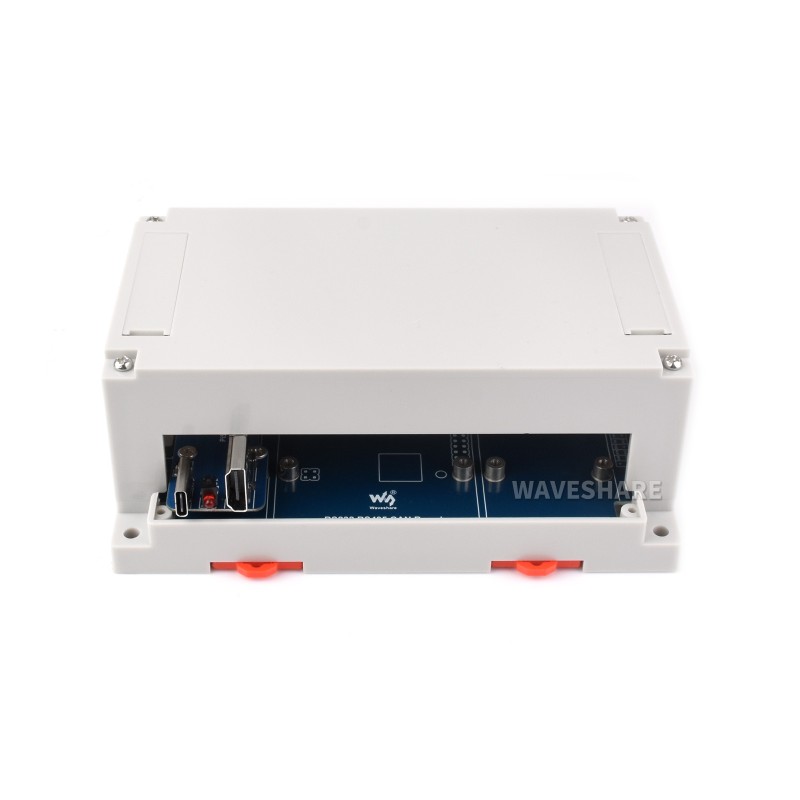

RS232 RS485 CAN Board is an industrial communication interface expansion board for Raspberry Pi 4B and Raspberry Pi 5. It expands the system with two RS485 ports, one RS232, one CAN, and one CAN FD, with full galvanic isolation for each interface. Integrated surge, electrostatic, and overcurrent protection ensures high reliability and resistance to interference. The set includes an ABS enclosure with wall or DIN rail mounting options and a PCIe power and signal adapter for Raspberry Pi 5.

Features

  • Compatibility with Raspberry Pi 4B and Raspberry Pi 5
  • SPI expansion with: 2× RS485 (SC16IS752 + SP485), 1× CAN (MCP2515 + SN65HVD230), 1× CAN FD (MCP2518FD + MCP2562FD)
  • UART expansion with: 1× RS232 (SP3232EEN)
  • Galvanic isolation for all interfaces
  • Surge protection (TVS), overcurrent protection (self-resetting fuses), and protective diodes
  • Built-in isolated power regulator – no need for an additional power source for the interfaces
  • Power supply via USB-C connector (from Pi5 adapter) or 7~36 V DC via screw terminals
  • DIN rail (35 mm) or wall mounting options
  • Internal space for installing other HATs or PCIe boards for Raspberry Pi 5
  • Terminals with 120 Ω termination resistors (configurable via jumpers)
  • Support for systems: Raspberry Pi OS (Python/C), other GPIO/SPI/UART-compatible systems
  • Dimensions: 154.6 × 83.7 × 59 mm

Included

  • RS232 RS485 CAN Board with ABS enclosure ×1
  • 40PIN GPIO cable ×1
  • Pi5 Connector Adapter (B) ×1
  • Mounting screw set ×1
