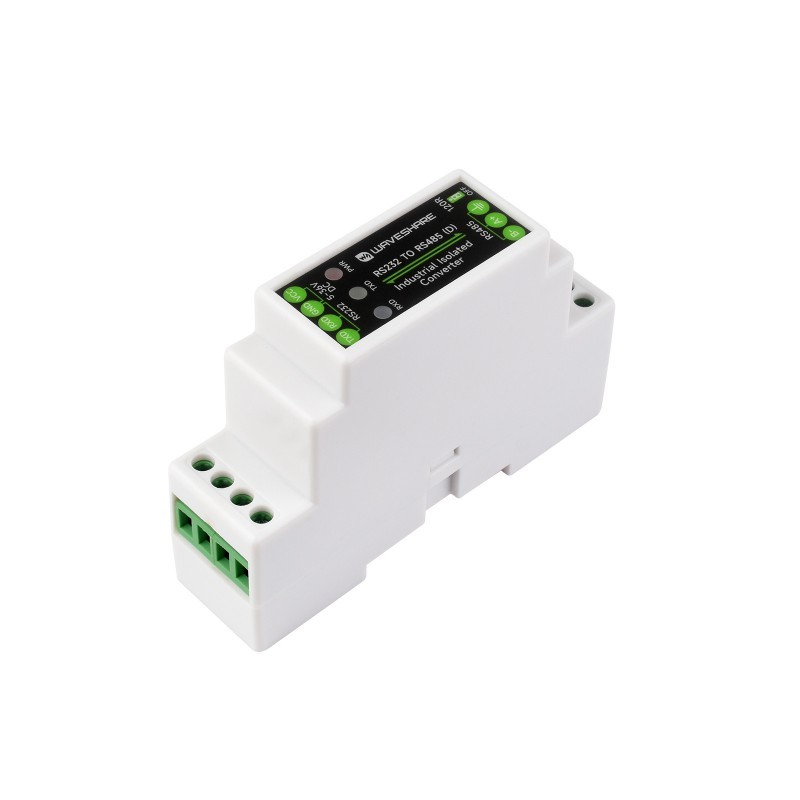

RS232 to RS485 (D) converter with digital isolation - Waveshare 27830
ID: 1197393
5902186307636
zł46.94
Tax included
zł38.16 tax excl.
RS232 TO RS485 (D) is a reliable signal converter with built-in digital isolation and interference protection, enabling the creation of efficient and secure communication networks in industrial systems, automation, and IoT applications. The use of a DIN rail mount and screw terminals facilitates easy installation and integration with existing infrastructure.
Description
Industrial RS232 to RS485 converter with active digital isolation, designed for use in automation, IoT systems, and agriculture. Model (D) features LED indicators (PWR, TXD, RXD) for easy device status diagnostics. It converts RS232 signals to balanced differential RS485 signals, enabling data transmission over distances up to 1200 m. Integrated protections include galvanic isolation, 15 kV ESD protection, 600 W TVS, surge protection diodes, and a self-resetting fuse. Housed in a durable ABS case with DIN rail mounting capability.
Specifications
- Standards: RS232 / RS485
- Transmission mode: RS232 – point-to-point, RS485 – point-to-multipoint (up to 32 devices)
- Baud rate: 300 ~ 115200 bps
- Transmission range: RS232 up to 15 m, RS485 up to 1200 m
- Power supply: 5~36 V DC (with reverse polarity protection)
- Connectors: screw terminals
- Protection features:
- Galvanic isolation (power and signal)
- TVS: 600 W
- ESD protection: 15 kV
- Surge protection diodes
- Polyfuse (self-resetting fuse)
- PWR – Power (red)
- TXD – RS232 transmission (green)
- RXD – RS485 reception (blue)
- Termination resistor: 120 Ω (switchable)
- Dimensions: 91.6 × 23.3 × 58.7 mm
- Enclosure: ABS, DIN rail mountable
Included
- RS232 TO RS485 (D) converter x1
- Screwdriver x1
