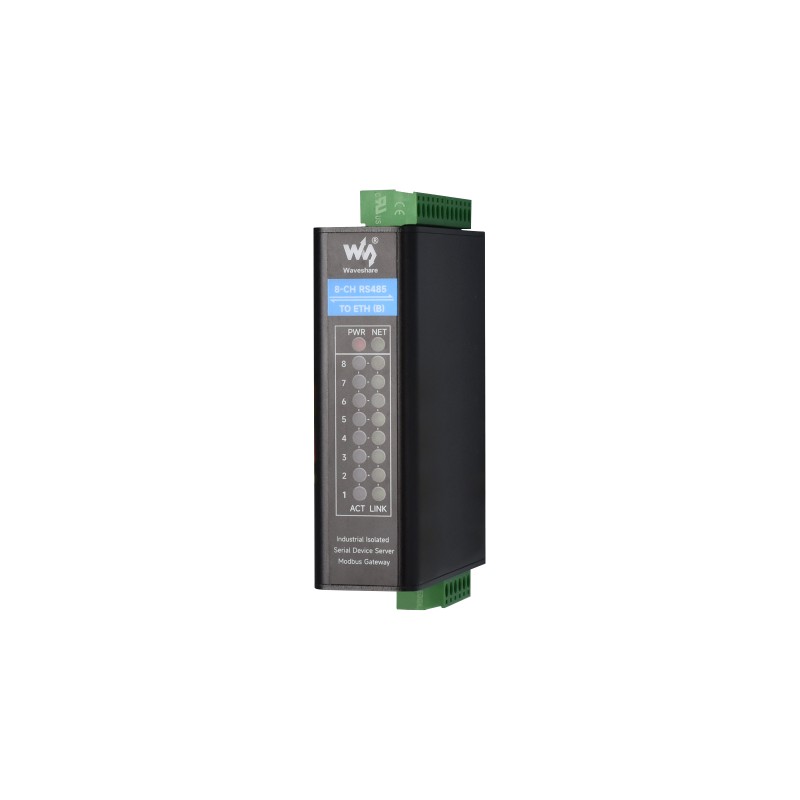

8-channel RS485 to Ethernet DIN-rail converter - Waveshare 31077
ID: 1197759
5902186305304
zł361.20
Tax included
zł293.66 tax excl.
8-CH RS485 TO ETH (B) is a reliable industrial RS485-to-Ethernet converter, offering eight isolated serial channels and two network ports for simultaneous data transmission and cascading communication. Designed for industrial applications, it integrates Modbus server functionality, MQTT gateway, and data conversion to JSON format. With support for multiple operating modes and configuration via web browser, it is ideal for automation systems, data acquisition, and infrastructure monitoring.
Description
The industrial 8-CH RS485 TO ETH (B) converter enables bidirectional data transmission between eight independent RS485 channels and an Ethernet network. Each RS485 channel operates independently and can use a different baud rate. The device supports serial server functions, Modbus gateway, MQTT gateway, and RS485-to-JSON conversion. Its DIN rail or wall-mountable aluminum enclosure, galvanic isolation, support for multiple communication protocols, and flexible configuration options make it a versatile solution for industrial and automation systems.
Features
- Communication: 8× independent RS485 ports, 2× RJ45 Ethernet ports
- Power supply: screw terminal, DC 7–36 V
- Isolation: galvanic isolation for power and signals
- Operating modes: TCP Server, TCP Client, UDP, UDP multicast
- Supported protocols: TCP/IP, UDP, HTTP, MQTT, Modbus RTU, JSON
- Conversion support: RS485 to MQTT/JSON, NTP support, data logging
- Configuration: via web browser, DHCP, DNS
- LED indicators: device status
- Operating temperature: -40°C to 85°C
- Relative humidity: 5% – 95%
- Dimensions: 93 × 103.5 × 29.7 mm
- Enclosure: anodized aluminum, DIN rail or wall mounting
- Protections: TVS, resettable fuse, protection diodes, ESD, surge protection
1197759
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
