YN-4561 - 6in1 USB/RS485/RS422/RS232/TTL universal interface converter
ID: 1183126
5906623466689
zł108.41
Tax included
zł88.14 tax excl.

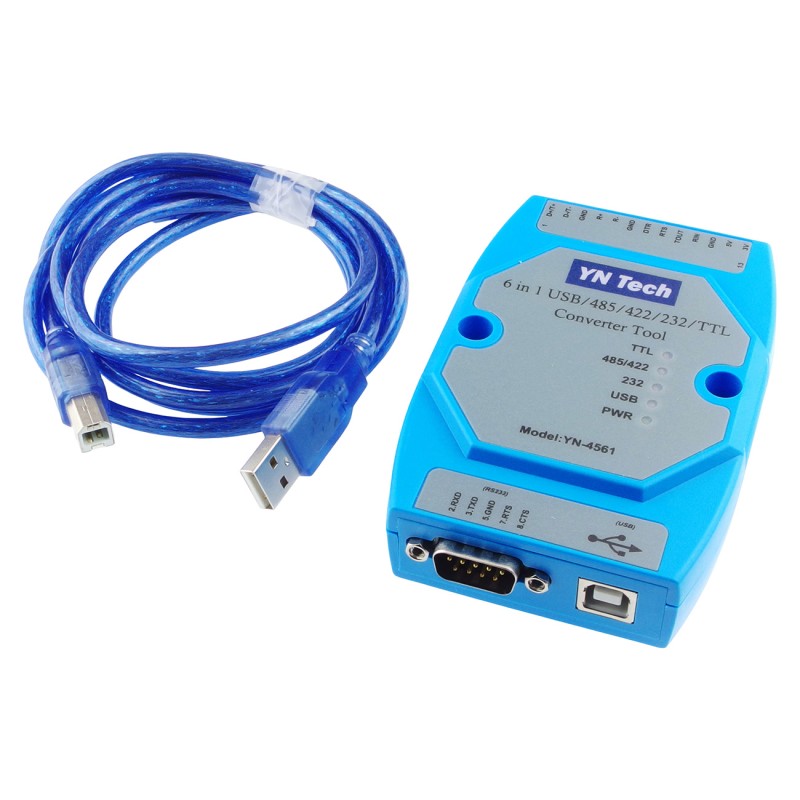

A 6-in-1 universal interface converter that supports serial interfaces used in industry: USB, RS485 , RS422, RS232 and UART TTL. YN-4561
Description
Universal 6-in-1 interface converter that supports serial interfaces used in industry: USB, RS485 , RS422, RS232 and UART TTL. Allows operation in one of 6 modes:
- USB to RS232 converter
- USB to RS422/TS485 converter
- USB to UART TTL converter
- UART TTL to RS232 converter
- UART TTL to RS422/RS485 converter
- RS232 to RS422/RS485 converter
The module is equipped with a DB9 connector with RS232, USB type B leads and a screw connector for the remaining buses. The whole unit is enclosed in an industrial enclosure with DIN rail mounting capability. It is powered by a USB connector and has support for Windows 2000, 2003, XP, Vista, 7, macOS, Linux and Android operating systems.
Features
- Converter from USB to RS232/RS422/RS485/TTL
- Converter from RS232 to RS422/RS485
- Converter from TTL to RS232/RS422/RS485
- USB 2.0 interface
- USB type B, DB9 and screw connector
- Indicator LEDs
- Transmission speed: from 600 bps to 115200 bps
- RS232 transmission range: 15 m (19.2 Kbps)
- RS422/RS485 transmission range: 1200 m (57.6 Kbps)
- UART TTL transmission range: 0.5 m (19.2 Kbps)
- Industrial enclosure for DIN rail mounting
- Support for Windows 2000, 2003, XP, Vista, 7, macOS, Linux and Android operating systems
Kit contains
- YN-4561 converter
- USB cable
1183126
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
