ID: 1201651
zł1.89
Tax included

zł1.54 tax excl.

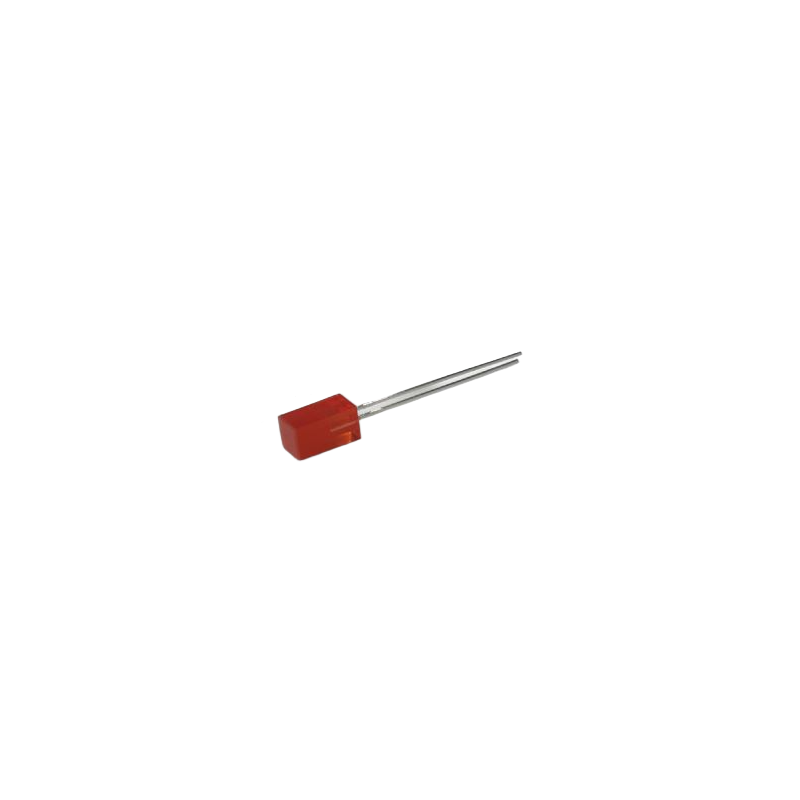

THT LED in a 5 x 5 mm square package with a flat top, emitting red light with a dominant wavelength of 617 nm. Luminous intensity of 5-10 mcd at 10 mA and a wide 140° viewing angle enable use in signaling circuits and control panels. L-1553IDT

24h
Available
Available quantity: 190

Description

L-1553IDT designed for through-hole mounting in PCB holes. The GaAsP/GaP structure generates red light with a dominant wavelength of 617 nm and a peak wavelength of 627 nm. The red diffused lens ensures uniform light distribution and a wide 140° viewing angle, improving signal visibility under various observation conditions.

At a forward current of 10 mA, luminous intensity ranges from 5-10 mcd, while forward voltage is 1.9-2.3 V. Continuous forward current up to 30 mA and an operating temperature range from -40°C to +85°C allow integration into industrial devices, automation systems, control modules, and prototype or educational projects.

The 5 x 5 mm square package with a flat top facilitates panel mounting and the construction of status indicators with a uniform illuminated surface.

Features

  • Mounting type: THT
  • Package: 5 x 5 mm square, flat top
  • Emitting color: red High Efficiency Red
  • Chip material: GaAsP/GaP
  • Dominant wavelength: 617 nm
  • Peak wavelength: 627 nm
  • Luminous intensity at 10 mA: 5-10 mcd
  • Viewing angle: 140°
  • Forward voltage at 10 mA: 1.9-2.3 V
  • Maximum continuous forward current: 30 mA
  • Peak forward current: 160 mA
  • Power dissipation: 75 mW
  • Operating temperature range: -40°C to +85°C
1201651

Data sheet

Size
5x5 mm
Jasność
5-10 mcd
Kąt świecenia
140°
Voltage
1,9 - 2,3 V
Prąd
20 mA
Colour
Red
