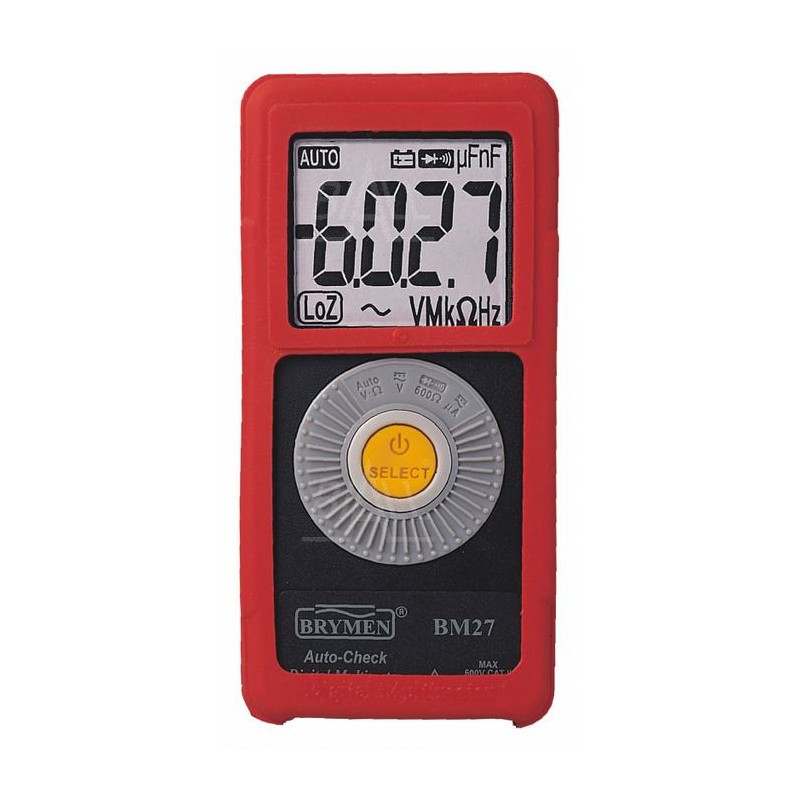

Brymen BM27s - universal digital multimeter
ID: 1205028
zł229.08
Tax included
zł186.24 tax excl.
A compact, pocket-sized multimeter that combines a small footprint with a wide range of measurement functions, including voltage, current, resistance, capacitance, and frequency. The AutoCheck function automatically recognizes the measurement type, significantly simplifying and speeding up work. The device is equipped with non-contact EF voltage detection, Hi-Z function, and continuity and diode testing, increasing its versatility in everyday applications. Brymen BM27s
Description
Brymen BM27s is a compact and functional pocket multimeter, ideal for everyday service work and basic diagnostics of electrical installations. Thanks to its small size and lightweight design, the device is highly portable and easy to carry, making it an excellent choice for technicians working in the field. The meter offers measurement of AC/DC voltage, current, resistance, capacitance, and frequency, providing versatile functionality in a single compact device.
One of the key features of the BM27s model is AutoCheck, which automatically selects the measurement type (Lo-Z DCV, ACV, or resistance) depending on the input signal, significantly speeding up and simplifying operation. The Hi-Z function enables voltage measurements with high input impedance, which is especially important for sensitive electronic circuits. Additionally, the meter is equipped with non-contact voltage detection (EF), allowing quick detection of voltage presence without direct contact. The device also enables quick switching to frequency measurement during voltage or current measurement, improving work efficiency.
A clear 6000-count LCD display ensures convenient reading of results, while fast sampling improves responsiveness. Automatic ranging eliminates the need for manual configuration, which is particularly useful for less experienced users. The multimeter also offers test functions such as continuity test and diode test, enabling quick diagnostics of electronic components. The robust design and compliance with safety standards ensure reliable and safe operation.
Features
- DC and AC voltage measurement: 6 V to 300 V
- DC and AC current measurement: 400.0 μA to 2000 μA
- Resistance measurement: 600 Ω to 6 MΩ
- Capacitance measurement: 100 nF to 2000 μF
- Frequency measurement: 10 Hz to 30 kHz
- Diode test (input protection: 600 V DC / 600 V AC rms)
- Continuity test
- Automatic ranging
- AutoCheck function (automatic selection: Lo-Z DCV, ACV, resistance)
- Hz function – quick access to frequency measurement
- Non-contact voltage detection EF (with bar graph)
- Hi-Z function – high input impedance voltage measurement
- NMRR: ≥ 30 dB for 50/60 Hz
- CMRR: ≥ 100 dB for DC and 50/60 Hz (Rs = 1 kΩ), ≥ 60 dB for DC to 60 Hz
- Display: 3 5/6-digit LCD, max. 6000 counts
- Sampling rate: 5 times/s
- Low battery indication: below approx. 2.4 V
- Auto power off: after approx. 3 minutes of inactivity
- Measurement category: CAT III 300 V, CAT II 600 V
- Surge protection: 4 kV (1.2/50 µs)
- Standards compliance: PN-EN61010-1, CSA C22.2 No. 1010-1-92
- EMC compliance: PN-EN61326, PN-EN61000-4-2, PN-EN61000-4-3
- Power supply: 3 V battery (CR2032), 1 pc.
- Operating conditions: 0 °C to 40 °C, humidity up to 80%
- Storage conditions: -20 °C to 60 °C, humidity < 80%
- Dimensions: 113 × 53 × 10.2 mm
- Weight: 78 g
Kit contains
- Brymen BM27s multimeter
- Test leads
- Protective holster
- Battery set
1205028
Data sheet
- Upper DC voltage range
- 200mV/2000mV/20V/200V/300V
- Upper AC voltage range
- 200V/300V
- Upper DC current range
- 2 mA
- Upper AC current range
- 2 mA
- Upper resistance range
- 6 MΩ
- Upper capacitance range
- 2nF/20nF/200nF/2μF/20μF/200μF/2mF
- Frequency range
- 10 Hz - 30 kHz
- Temperature measurement
- No
- Range adjustment
- Automatic
- True RMS
- No
- Hold function
- No
- Continuity tester
- Yes
- Diode tester
- Yes
- Transistor hFE measurement
- No
- Buzzer
- Yes
- Battery indicator
- Yes
- Automatic shut-off
- Yes
- Display backlight
- No
- Battery type
- CR2032
- Length
- 114 mm
- Width
- 53 mm
- Thickness
- 10,2 mm
- Weight
- 76 g
