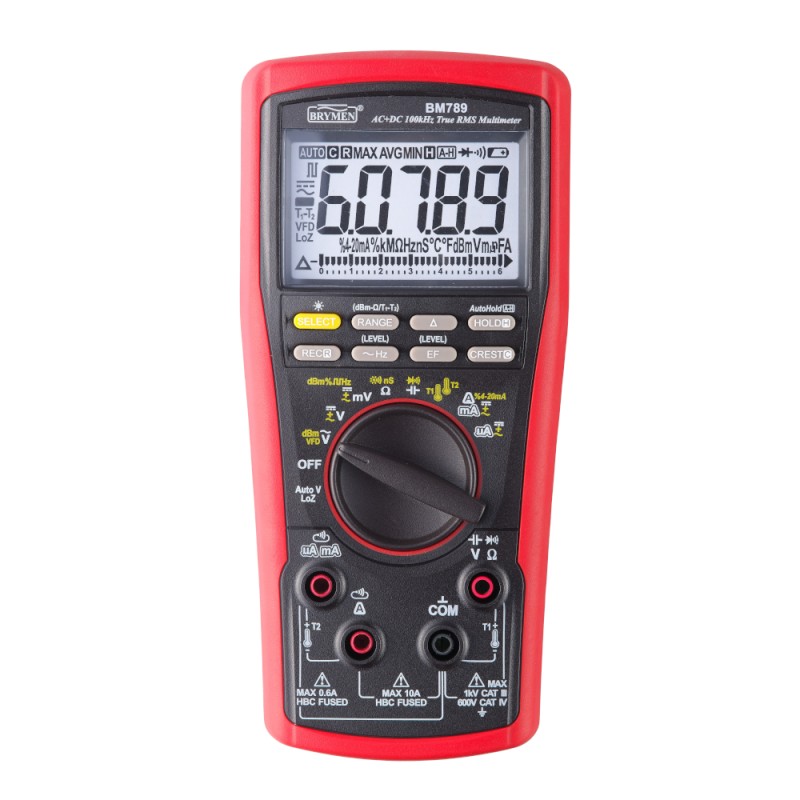

Brymen BM789 - digital multimeter TrueRMS 100kHz CATIII1000V
ID: 1205030
zł950.54
Tax included
zł772.80 tax excl.
Professional digital multimeter 60000 counts, True RMS AC/DC up to 100 kHz, temperature and conductance measurement with diagnostic functions. Brymen BM789
Description
Digital multimeter designed for advanced measurements in electronics, industrial automation and power engineering. Resolution of 60000 counts and DC voltage accuracy up to ±0.03% enable precise signal analysis in demanding applications. True RMS measurement for AC and AC+DC signals with bandwidth up to 100 kHz allows accurate measurement of distorted waveforms, while AutoV LoZ reduces the impact of ghost voltages in electrical installations.
The device supports measurement of AC/DC voltage and current, resistance, capacitance, frequency, duty cycle and conductance, as well as dual-channel temperature measurement (T1/T2). Diagnostic functions such as AutoHold Real-Read, MAX/MIN/AVG recording, REL and fast CREST peak capture support detailed signal analysis. The design meets CAT III 1000 V and CAT IV 600 V requirements and includes 8 kV surge protection for operation in industrial environments.
Features
- Display: 60000 counts, backlit, bargraph
- True RMS: AC, AC + DC
- DC voltage accuracy: up to ±0.03%
- AC bandwidth: up to 100 kHz
- AC/DC voltage measurement: up to 1000 V
- AC/DC current measurement: up to 10 A
- Resistance: up to 60 MΩ
- Capacitance: up to 10 mF
- Frequency: up to 1 MHz
- Conductance: up to 99 nS
- Temperature measurement: T1, T2 (Type K)
- Duty cycle measurement
- dBm measurement: selectable reference impedance
- AutoV LoZ
- VFD measurement (ACV + Hz)
- EF detection: non-contact
- AutoHold Real-Read
- Data Hold function
- REL mode
- MAX / MIN / AVG recording
- CREST measurement: 0.25 ms
- BeepLit continuity and diode test
- Beep-Jack warning
- Automatic and manual ranging
- Backlit LCD display
- Analog bargraph
- Measurement category: CAT III 1000 V, CAT IV 600 V
- Overload protection: up to 1000 V
- Surge protection: 8 kV
- Sampling: 5/s (display), 50/s (bargraph)
- Power supply: 3 x AAA 1.5 V
- Operating temperature: -20°C - 55°C
- Dimensions: 193 x 89 x 51 mm
- Weight: approx. 420 g
Kit includes
- Digital multimeter
- Silicone test leads
- K-type thermocouple
- Batteries
1205030
Data sheet
- Upper DC voltage range
- 200mV/2000mV/20V/200V/1000 V
- Upper AC voltage range
- 600mV/6V/60V/600V/1000V
- Upper DC current range
- 200μA/2mA/20mA/200mA/10A
- Upper AC current range
- 600μA/6000μA/60mA/600mA/10A
- Upper resistance range
- 60 MΩ
- Upper capacitance range
- 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF
- Frequency range
- up to 1 MHz
- Temperature measurement
- Yes
- Range adjustment
- Automatic
- True RMS
- Yes
- Hold function
- Yes
- Continuity tester
- Yes
- Diode tester
- Yes
- Transistor hFE measurement
- No
- Buzzer
- Yes
- Battery indicator
- Yes
- Automatic shut-off
- Yes
- Display backlight
- Yes
- Battery type
- AAA
- Length
- 193 mm
- Width
- 89 mm
- Thickness
- 51 mm
- Weight
- 420 g
