ID: 1205027
zł358.96
Tax included

zł291.84 tax excl.

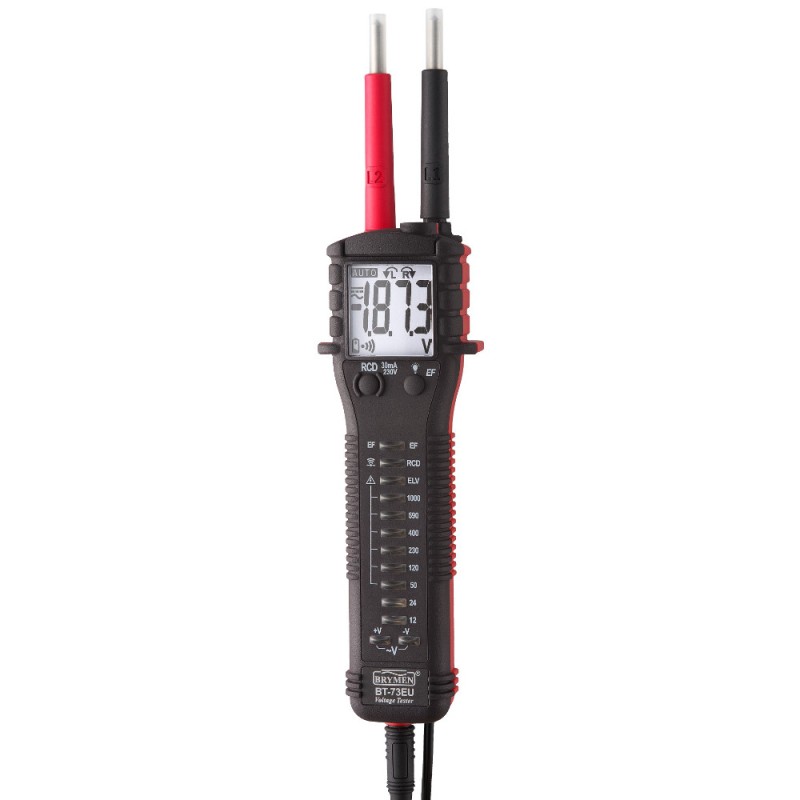

Voltage tester with AC/DC measurement up to 1000 V, True RMS, EF detection and continuity and RCD functions. Brymen BT73EU

24h
Available
Available quantity: 2

Description

Voltage tester designed for detecting voltage presence and diagnosing low-voltage electrical installations. Supports AC/DC voltage measurement up to 1000 V with True RMS method for AC signals, enabling accurate analysis of distorted waveforms. The design complies with safety standards for CAT III 1000 V and CAT IV 600 V, allowing use in power installations and distribution boards.

The device enables battery-less voltage detection using LED indicators as well as extended functions available with battery power, including LCD indication, electric field detection and RCD testing. EF function allows both non-contact and contact detection of live conductors, while RST function enables phase rotation detection. Additionally, the tester includes continuity test with audible signal and ELV level indication.

Features

  • DC voltage measurement: up to 1000 V
  • AC voltage measurement: up to 1000 V True RMS
  • Continuity test with buzzer
  • Electric field detection EF: non-contact and contact
  • RCD test: 30 mA at 230 V
  • RST phase rotation detection
  • Battery-less LED voltage indication
  • LCD display: 1999 counts
  • Operating frequency: 45 Hz - 65 Hz
  • True RMS for AC voltage
  • Backlit display
  • Built-in flashlight
  • Automatic power on and off
  • Protection rating: IP65
  • Measurement category: CAT III 1000 V, CAT IV 600 V
  • Surge protection: 8 kV
  • Power supply: 2 x AAA 1.5 V
  • Operating temperature: -10°C - 50°C
  • Dimensions: 278 x 57 x 40 mm
  • Weight: 235 g

Kit includes

  • Voltage tester
  • Batteries
1205027

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
